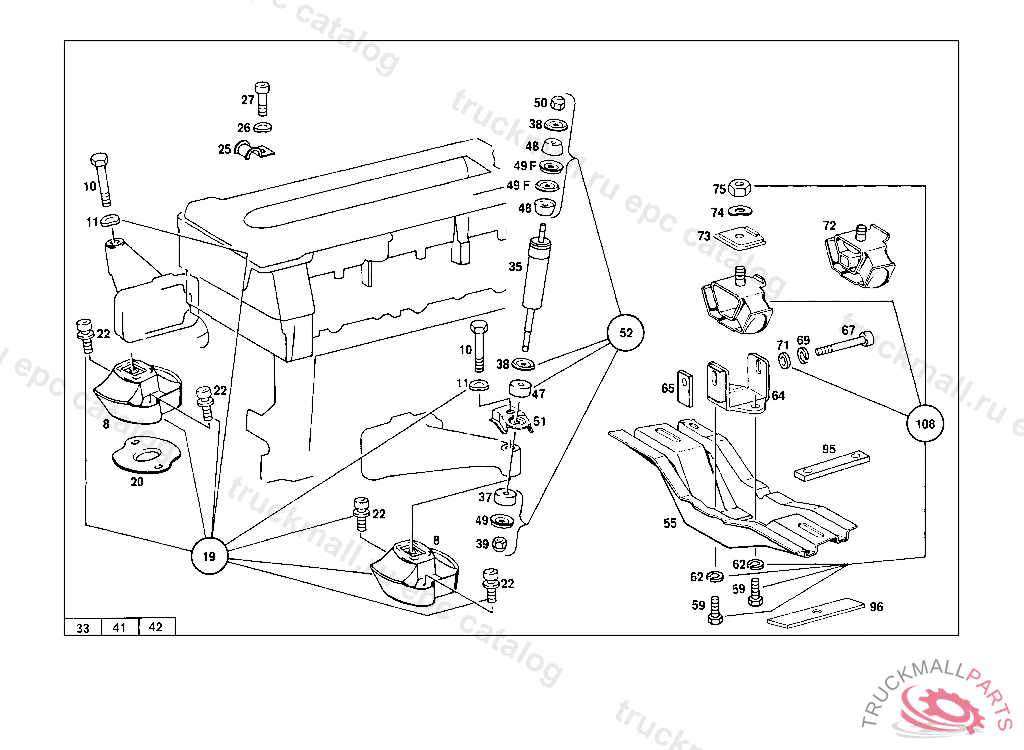

230.6 - 114.008 - 24 ENGINE SUSPENSION

  • Поз.
    Артикул
    Описание
  • 8
    RUBBER MOUNTING RIGHT
  • 10
    SCREW BRACKET TO TRANSMISSION
  • 11
    SPRING WASHER CAB FLOOR
  • 11
    SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
  • 47
    RUBBER BUFFER
  • 49
    RETAINER
  • 50
    NUT OIL TANK TO BRACKET
  • 50
    NUT , Replaced By: N913002006009
  • 55
    ENGINE SUPPORT
  • 59
    SCREW , Replaced By: N304017008039
  • 59
    SCREW PROTECTIVE PLATE TO EXHAUST PIPE
  • 62
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 64
    BRACKET
  • 65
    NUT BRACKET TO ENGINE MOUNTING
  • 67
    SCREW
  • 69
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 71
    WASHER REAR FOGLAMP TO BRACKET
  • 73
    MOUNTING PLATE MOUNTING WITH SUPPORT TO TRANSMISSION
  • 74
    SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
  • 74
    SPRING WASHER CAB FLOOR
  • 75
    NUT , Replaced By: N308673012002
  • 75
    NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
  • 95
    BRACKET
  • 96
    SHIM , FROM CHASSIS: 023 101097 072 103693 073 106814
  • 108
    REPAIR KIT , 009642
  • 999
    RUBBER MOUNTING , Replaced By: A1072410913, +001A1142410284
  • 999
    BASE PLATE ,W 4A 020 102,103 412010 105 NOT FOR SWEDEN 310470 105 SWEDEN A 000462 EXCEPT FOR 298984,310801 183 NOT FOR SWEDEN 028929 183 SWEDEN F 001866 EXCEPT FOR 028960 190 030465 EXCEPT FOR 030442 200 165220 280 NOT FOR SWITZERLAND 009680 EXCEPT FOR 009608,009626-009679 280 SWITZERLAND 009207 283 NOT FOR SWITZERLAND 019904 EXCEPT FOR 019489,019510,019514,019524,019528-019534,019541,019543,019548-019550,019554-019575,019587,019590, 019593,019603,019604,019613,019614,019625-019638,019646,019649-019712,019715-019814,019821,019830- 019894,019899,019901. 283 SWITZERLAND F 000422 EXCEPT FOR 021312,F 000333
  • 999
    ENGINE SUPPORT
  • 999
    RUBBER MOUNTING
  • 999
    RUBBER MOUNTING , Replaced By: A1242400018
  • 999
    SPRING WASHER , Replaced By: N000137008212
  • 999
    SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
  • 999
    SCREW , Replaced By: N304017008034
  • 999
    SCREW END PIECE TO EXHAUST PIPE M 10X25
  • 999
    SCREW BRACKET TO CROSS CONNECTION STRUT
  • 999
    SCREW CLAMP TO EXHAUST PIPE
