Mercedes A1154211312 - ТОРМОЗНОЙ ДИСК

240 D 115.107

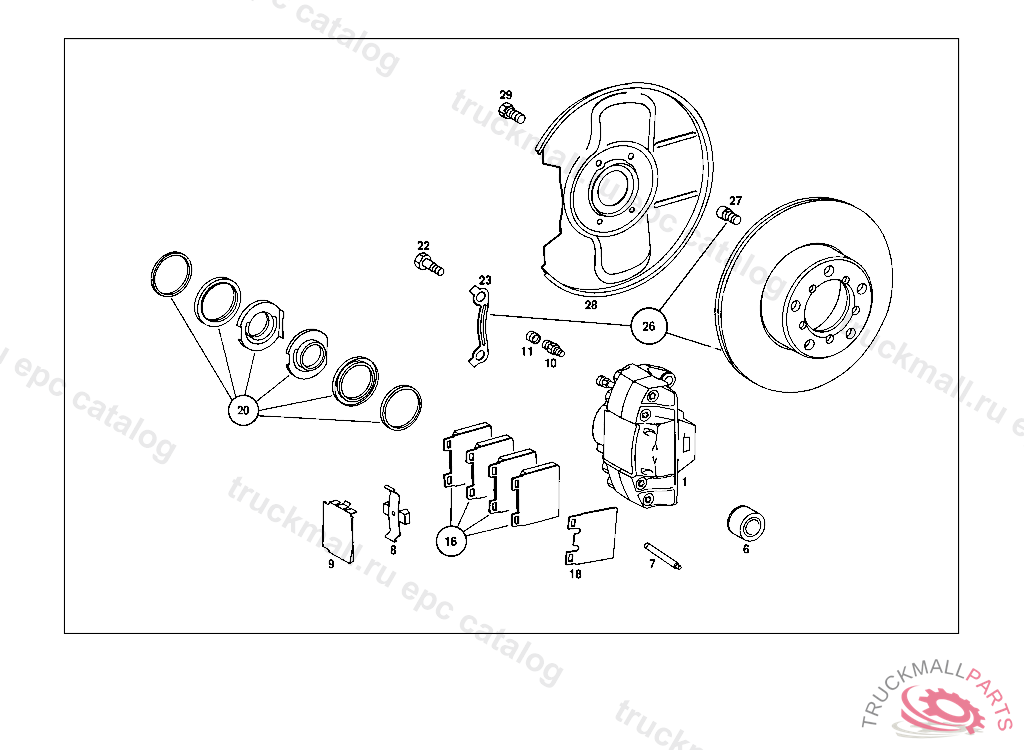

42 BRAKE SYSTEM - 001 BRAKES IL. 1
  • Поз.
    Артикул
    Описание
  • 1
    CALIPER RIGHT,TEVES,LESS LINING, IN PAIRS OPTIONAL WITH, 000,001,004,010,016 FROM CHASSIS 189499,002,003,005,011,017 FROM CHASSIS 033000,100,101,104,110,116 FROM CHASSIS 355414
  • 1
    CALIPER LEFT,LESS PAD ASSEMBLIES, TEVES, IN PAIRS OPTIONAL W/000 421 73 98,BENDIX, FROM CHASSIS: 010 094997 110 244251
  • 1
    CALIPER , Replaced By: A0014218198
  • 1
    CALIPER , Replaced By: A0014218298
  • 6
    PISTON , 005,007,008,015,017 203606 011 014721
  • 7
    DOWEL PIN TEVES
  • 8
    SPRING , 005,007,008,015,017 203606 011 014721
  • 9
    PROTECTIVE PLATE
  • 10
    BLEEDER VALVE
  • 10
    BLEEDER VALVE
  • 11
    PROTECTIVE CAP ,5 962906
  • 11
    PROTECTIVE CAP , Replaced By: A0004217187
  • 16
    BRAKE PAD. TS BRAKE PAD PARTS KIT
  • 16
    TS BRAKE PAD , Replaced By: A0014207720
  • 16
    REPAIR KIT , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 000,002,010 094996 015 115509 100,102,103,110,112 244250 115 122219, Replaced By: A0015861942
  • 16
    REPAIR KIT , Replaced By: A0015861942
  • 16
    REPAIR KIT , Replaced By: A0004206720
  • 18
    SHIM , ONLY AGAINST BRAKE SQUEALING
  • 20
    REPAIR KIT , Replaced By: A0005866442
  • 20
    REPAIR KIT MAKE"TEVES"
  • 22
    SCREW
  • 23
    LOCK
  • 23
    LOCK , Replaced By: A1159940732
  • 23
    LOCK , Replaced By: A1159940732
  • 26
    BRAKE DISC , Replaced By: A1154211312
  • 26
    BRAKE DISC , 068408
  • 27
    SCREW , Replaced By: A0009907212
  • 27
    SCREW
  • 28
    PROTECTIVE PLATE
  • 28
    PROTECTIVE PLATE , Replaced By: A1144210020
  • 29
    COMBINATION BOLT
  • 999
    STRAINER , Replaced By: A0004313734
  • 999
    BLEEDER VALVE , Replaced By: A0004204655
  • 999
    BLEEDER VALVEBENDIX
  • 999
    TS BRAKE PAD , Replaced By: A0014207720
  • 999
    LOCK , Replaced By: A0004210573
  • 999
    LOCK , Replaced By: A0004210573
  • 999
    PROTECTIVE PLATE
  • 999
    LOCKBENDIX
  • 999
    SPRING
  • 999
    SPRINGBENDIX, 020 107901 023 132308 026,028 067357 030 026099 033 054139 120 151587 123,125 115960 130,132 137346
  • 999
    PISTON
  • 999
    SHIM , ONLY AGAINST BRAKE SQUEALING
  • 999
    PISTONBENDIX
  • 999
    CALIPER , Replaced By: A1234200783
  • 999
    CALIPER , Replaced By: A1234200883
  • 999
    BRAKE HOSE , Replaced By: A1234280135
  • 999
    BRAKE HOSE , Replaced By: A1234280535
  • 999
    BRAKE HOSE , Replaced By: A1234280535
  • 999
    BRAKE BOOSTER ASSEMBLY , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 005,017 062786 015 284267 105,107,117,102725 108,119,102529 110 455272 114 029143 115 311170, Replaced By: A0014306630
  • 999
    STRAINERTO 002 430 31 01
  • 999
    FILLER CAP , Replaced By: A0004315133
  • 999
    FILLER CAP , Replaced By: A0004311633
  • 999
    FILLER CAPTO 002 430 41 01,002 430 27 01
  • 999
    STRAINER , Replaced By: A0004313734
  • 999
    PROTECTIVE CAPTO 001 430 36 30,002 430 27 30
  • 999
    FILLER CAP , Replaced By: A0004315133
  • 999
    FILLER CAP , Replaced By: A0004315133
  • 999
    RESERVOIR , Replaced By: A0004316402
  • 999
    RESERVOIR
  • 999
    SEAL RING , Replaced By: A0004318260
  • 999
    RESERVOIR , Replaced By: A0014314502
  • 999
    SEAL RINGBENDIX
  • 999
    FILTER RING , Replaced By: A0015864143
  • 999
    REPAIR KIT , Replaced By: A0015869343
  • 999
    RUBBER RING SIGNAL LAMP TO ROOF
  • 999
    DOWEL PIN , Replaced By: A0009912660, +001A0004210573
  • 999
    DOWEL PIN , Replaced By: A0009912660, +001A0004210573
  • 999
    DOWEL PINBENDIX
  • 999
    SEAL RING
  • 999
    CALIPER LEFT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
  • 999
    CALIPER RIGHT,BENDIX,LESS LINING, IN PAIRS OPTIONAL WITH
  • 999
    BRAKE BOOSTER ASSEMBLYBENDIX, 000 113165 003 057447 007 046962 083 001048 086 000765 093 000620 102,103 092824 105 116296 183 001423 190 001361
  • 999
    RESERVOIR , Replaced By: A0014314202
  • 999
    RESERVOIR , Replaced By: A0014314202
  • 999
    RESERVOIR TEVES, THREE-CHAMBER, FROM CHASSIS: 017 009972 117 017586 UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 999
    RESERVOIR , Replaced By: A0014314202
  • 999
    REPAIR KIT BENDIX, 005,007,008,015,017 203606 011 014721
  • 999
    REPAIR KIT CALIPER BENDIX
  • 999
    REPAIR KIT , Replaced By: A0015869343
  • 999
    REPAIR KIT , Replaced By: A0004206620
  • 999
    REPAIR KIT
  • 999
    REPAIR KIT BRAKE MASTER CYLINDER BENDIX
  • 999
    SENDER UNIT TEVES, REAR SUPPLY CHAMBER, UP TO CHASSIS: 005,017 009971 015 215193 105,107,108,117,119 017585 110 413856 115 218099
  • 999
    REPAIR KIT , FROM CHASSIS: 017 062833, FEDERAL, ALSO INSTALLED ON: 059499,060650,061519,061527,062799. 017 062927, CALIFORNIA, ALSO INSTALLED ON: 048629,060112,062772 114 029142, ALSO INSTALLED ON: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102743, ALSO INSTALLED ON: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102759, ALSO INSTALLED ON: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 999
    BRAKE MASTER CYLINDERBENDIX
  • 999
    CLAMP , Replaced By: A1119950042
  • 999
    LEVER , Replaced By: A1145860142, +001A1154202785
  • 999
    SCREW , Replaced By: A1234200073
  • 999
    BUSHING , Replaced By: A1164230050
  • 999
    SPRING , Replaced By: A9109931310
  • 999
    SPRING
  • 999
    CYLINDER PIN. PIN
  • 999
    CONNECTOR , Replaced By: A1145860142, +001A1154202785
  • 999
    PIN , Replaced By: A1145860142, +001A1154202785
  • 999
    LOCK , Replaced By: A1154230273
  • 999
    CLAMP
  • 999
    RUBBER PAD , 000 130185 003 066450 007 053317 083 002303 086 001761 093 001873 102,103 113214 105 135078 183 004048 190 005028, Replaced By: A1234280085, +001A1239950222
  • 999
    CLAMP , Replaced By: A1409950222
  • 999
    REPAIR KIT , UP TO CHASSIS: 005,017,041250 015 255760 105,107,108,117,119 073304 110 442020 114 009171 115 270762, Replaced By: A1145860142, +001A1154202785
  • 999
    SHACKLE , Replaced By: A1154201089
  • 999
    LINE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 005,017 054372 015 274707 105,107,108,117,119 092822 110 450367 114 020944 115 295925, Replaced By: A1154203028
  • 999
    SHACKLE
  • 999
    LINE , Replaced By: A1234205428
  • 999
    LINE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 005,017 054372 015 274707 105,107,108,117,119 092822 110 450367 114 020944 115 295925, Replaced By: A1154203128
  • 999
    LINE , Replaced By: A1234208728
  • 999
    BRAKE CABLE , 000,002,010,100,102,103,112 UNTIL PRODUCTION STOP UP TO CHASSIS: 005,017,041250 015 255760 105,107,108,117,119 073304 110 442020 114 009171 115 270762, Replaced By: A1154202785, +001A1145860142
  • 999
    LINE , Replaced By: A1234208328
  • 999
    LINE , FROM CHASSIS: 000,002,010 064095 015 070416 100,102,110 161008, ALSO INSTALLED ON: 160846 103,112 161678, ALSO INSTALLED ON: 161628 115 076569 UP TO CHASSIS: 000,002,010,127882 015 173552 100,102,103,110,112 349724 115 185549, Replaced By: A1154202828, +001A1234206428
  • 999
    LINE , FROM CHASSIS: 000,002,010 064095 015 070416 100,102,110 161008, ALSO INSTALLED ON: 160846 103,112 161678, ALSO INSTALLED ON: 161628 115 076569 UP TO CHASSIS: 000,002,010,127882 015 173552 100,102,103,110,112 349724 115 185549, Replaced By: A1154202928, +001A1234205328
  • 999
    BRAKE CABLE , 000,002,010,100,102,103,112 UNTIL PRODUCTION STOP UP TO CHASSIS: 005,017,041250 015 255760 105,107,108,117,119 073304 110 442020 114 009171 115 270762, Replaced By: A1154202785, +001A1145860142
  • 999
    LINE , Replaced By: A1234207128
  • 999
    LINE , Replaced By: A1234206628
  • 999
    PROTECTIVE PLATE , FOR SUBSEQUENT INSTALLATION, ON BAD ROAD CONDITIONS
  • 999
    GUIDE , Replaced By: A1164270012
  • 999
    CUP , Replaced By: A1164270096
  • 999
    CUP , Replaced By: A1154270396
  • 999
    DAMPING RING , Replaced By: A1154270886
  • 999
    SCREW , Replaced By: A1154270640
  • 999
    ROD , Replaced By: A1154270631
  • 999
    LINE FROM VACUUM PUMP TO BRAKE BOOSTER ASSY
  • 999
    LINE FROM BOOSTER PUMP TO BRAKE BOOSTER
  • 999
    SCREW , Replaced By: A1239900312
  • 999
    SCREW , Replaced By: A1239900312
  • 999
    SPRING , Replaced By: A1159930330
  • 999
    SPRING
  • 999
    SPRING , Replaced By: A1159932610
  • 999
    LOCK , Replaced By: A1154230273
  • 999
    CLAMP BRAKE CABLE TO REAR FLOOR
  • 999
    BRAKE SHOE
  • 999
    HANDLE , Replaced By: A1234200395
  • 999
    SCREW LINES UNDER FUEL TANK
  • 999
    ADAPTER FITTING BETWEEN THE LINES
  • 999
    BRAKE SHOE , Replaced By: A1264200120
  • 999
    CALIPER , Replaced By: A1264201483
  • 999
    CALIPER , Replaced By: A1264201583
  • 999
    LINE , UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 999
    LINE FROM BRAKE HOSE TO LEFT REAR WHEEL BRAKE CYLINDER 1135 MM
  • 999
    LINE FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE, INAPPLICABLE TO ANTI-LOCK BRAKING SYSTEM (ABS)
  • 999
    LINE FROM ADAPTER FITTING TO DISTRIBUTOR
  • 999
    LINE FROM BRAKE MASTER CYLINDER TO DISTRIBUTOR, 055235
  • 999
    BRAKE SHOE RANGE OF DELIVERY
  • 999
    CALIPER LEFT,LESS LINING BENDIX
  • 999
    CALIPER RIGHT,LESS LINING BENDIX
  • 999
    CLAMP
  • 999
    SPRING
  • 999
    SHEET METAL SCREW BRACKET TO FLOOR PLATE
  • 999
    COTTER PIN
  • 999
    COTTER PIN
  • 999
    WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
  • 999
    WASHER COMPRESSED AIR LINE TO BRACKET
  • 999
    SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, REAR
  • 999
    SHEET METAL SCREW
  • 999
    SHEET METAL SCREW VALVE TO WINDOW SILL
  • 999
    SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
  • 999
    RIVET CRAMP TO BODY
