Поз.
Артикул
Описание
1

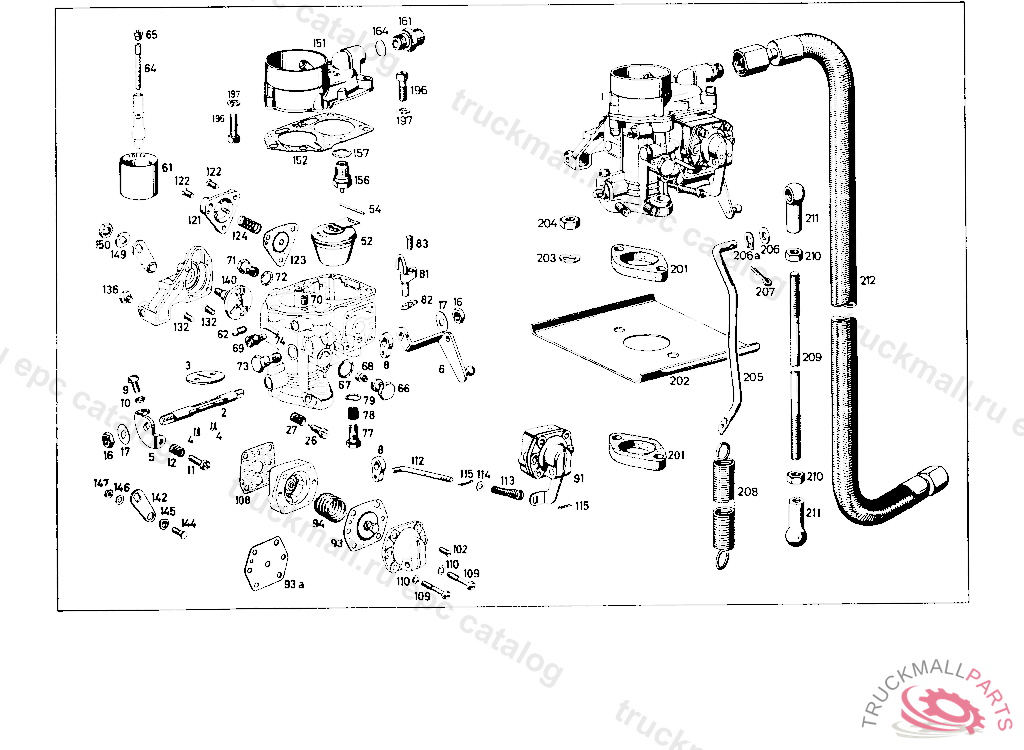

DOWNDRAFT CARBURETOR
2
DROSSELKLAPPENWELLE. THROTTLE SHAFT
3
DROSSELKLAPPE 8°. THROTTLE VALVE, 1ST BARREL IN THROTTLE VALVE
4
LENS-HD. COUNTERSUNK
5
SUPPORT
6
THROTTLE LEVER WITH BALL PIVOT
8
UBERTRAGUNGSHEBEL FUR MECHANISCHE PUMPE
9
OFFNUNGSBEGRENZUNGSSCHRAUBE
11
ZYLINDERSCHRAUBE VERKADMET FUR LEERLAUFEINSTELLUNG
12
PRESSURE SCREW. SPRING
16
SECHSKANTMUTTER. NUT , Replaced By: N000936008004
17
LOCK , Replaced By: A0009941310
26
GEMISCHREGULIERSCHRAUBE. MIXTURE CONTROL SCREW FOR IDLE MOTION
27
PRESSURE SCREW. SPRING
52
FLOAT, 5.7G NYLON
54
ACHSE. SHAFT FOR FLOAT
61
VENTURI TUBE, SIZE 25
62
FIXING SCREW FOR VENTURI TUBE
64
MISCHROHR. MIXING TUBE
65
LUFTKORREKTURDUSE "A" 200. AIR ADJUSTMENT NOZZLE
66
HAUPTDUSENTRAGER
67
DICHTRING 11,1 X 15 O. SEALING RING FOR MAIN NOZZLE SUPPORT, 1ST BARREL
68
HAUPTDUSE "GG" 125
69
IDLING NOZZLE
70
LEERLAUFLUFTDUSE "U" 1,5. IDLING AIR NOZZLE "U" 1.5 IN FLOAT CHAMBER
71
STARTER FUEL NOZZLE FROM ENGINE NO. 35 04027
72
DICHTRING 9 X 13. SEALING RING FOR MAIN NOZZLE, 2ND BARREL
73
PUMPENDUSE "GP" 50
74
DICHTRING 9 X 13. SEALING RING FOR MAIN NOZZLE, 2ND BARREL
77
KUGELVENTIL RUCKSCHLAGVENTIL
78
SIEB
79
DICHTRING 9 X 13. SEALING RING FOR MAIN NOZZLE, 2ND BARREL
81
EINSPRITZVENTIL
82
DICHTUNG. GASKET
83
LINSENSENKSCHRAUBE M 4 FUR STARTERKORPER
91
MEMBRANPUMPE. DIAPIHRAGM PUMP ACCELERATION PUMP
93
MEMBRANE
94
MEMBRANFEDER. DIAPHRAGM SPRING
102
LINSENSENKSCHRAUBE. LENS-HD. COUNTERSUNK SCREW FOR COVER AT DIAPHRAGM PUMP
108
DICHTUNG. GASKET
112
VERBINDUNGSSTANGE. CONNECTING ROD
113
PRESSURE SPRING. SPRING
121
VALVE CAP. VALVE COVER FOR STARTER AIR VALVE
122
LINSENSENKSCHRAUBE M 4 FUR STARTERKORPER
123
DIAPHRAGM STARTER AIR VALVE
124
VALVE SPRING FOR DIAPHRAGM
132
LINSENSENKSCHRAUBE M 4 FUR STARTERKORPER
136
KLEMMSCHRAUBE. PIN (CLAMPING BOLT)
140
ROTARY CHOKE VALVE
142
CHOKE LEVER
144
SCREW
145
BUSHING
149
UNTERLEGSCHEIBE. THRUST WASHER
150
SECHSKANTMUTTER. NUT , Replaced By: N000936008004
151
CARBURETOR COVER
152
GASKET FOR CARBURETOR COVER
156
SCHWIMMERNADELVENTIL
157
DICHTRING 1 MM STARK. DICHTRING 1 MM ST. FUR SCHWIMMERNADELVENTIL
196
VIERKANT-SCHRAUBE FUR VERGASERDECKEL AN GEHAUSE
202
SCREENING PLATE FOR CARBURETOR AT SUCTION PIPE
204
NUT
205
CONNECTING ROD
208
RUCKZUGFEDER. SPRING (RELEASE SPRING),556499
212
FUEL LINE FROM PUMP TO CARBURETOR
999
BUSHING 9.8 X 7.8 X 14 IN THROTTLE HOUSING FOR THROTTLE VALVE SHAFT FOR REPAIRS (IN THE CASE OF A THROTTLE HOUSING WITH DAMAGED BORES)
999
FUEL LINE FROM PUMP TO CARBURETOR EXPORT
999
DIAPHRAGM
999
HAUPTDUSE "GG" 115. HAUPTDUSE GG 115
999
HAUPTDUSE "GG" 120. MAIN NOZZLE EXPORT FOR COUNTRIES AT MORE THAN 2,000 M ABOVE SEA-LEVEL
999
STARTERBRENNSTOFFDUSE. STARTERKRAFTSTOFFDUSE, GROSSE 150 BISMOTOR-NR.65 00232
999
ROTARY CHOKE VALVE UP TO ENGINE NO. 35 04026
999
SCHWIMMERGELENK
