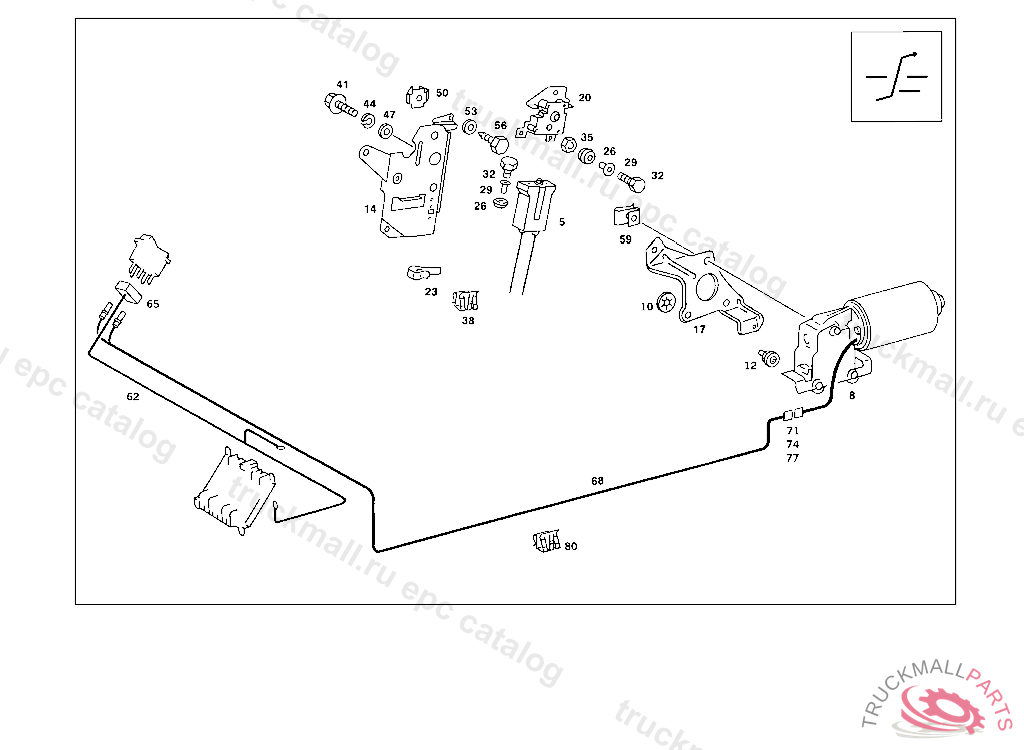

Поз.
Артикул
Описание
5
ELECTRIC MOTOR
8
ELECTRIC MOTOR ELECTRIC SLIDING ROOF, 033 102016 123 329278 130 276373 ORDER ADDITIONALLY: 3X FUSE 000 994 89 45
10
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
12
CAP , 033 102016 123 329278 130 276373
14
BRACKET ENGINE
17
BRACKET ENGINE, 033 102016 123 329278 130 276373 133 008387 223 100393
20
GEARING ELECTRIC SLIDING ROOF, 033 102015 123 329277 130 276372
23
CLIP
26
GROMMET GEARING TO BRACKET
29
BUSHING MOTOR TO BRACKET
32
SCREW PUMP TO BRACKET
32
SCREW COVER PLATE TO BRACKET
35
NUT BALL PIVOT TO LEVER
38
CLIP PLUG TO REAR PILLAR
41
HEXAGON HEAD BOLT
41
SCREW , Replaced By: N910105006002
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
47
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
WASHER COMPRESSED AIR LINE TO BRACKET
50
LOCK BRACKET WITH MOTOR AND GEARING TO REAR PILLAR, 033 102015 123 329277 130 276372 133 008386 223 100392
53
WASHER COVER PLATE TO COVER PLATE
53
WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
56
SHEET METAL SCREW , NOT USED
59
NUT RETAINER DRIVE TO REAR PILLAR
62
ELECTRIC CABLE SLIDING ROOF SWITCH
65
CONNECTOR QUADRUPLE
68
ELECTRIC CABLE ELECTRIC SLIDING ROOF MOTOR
71
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
74
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
77
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
80
CLIP PLUG TO REAR PILLAR
