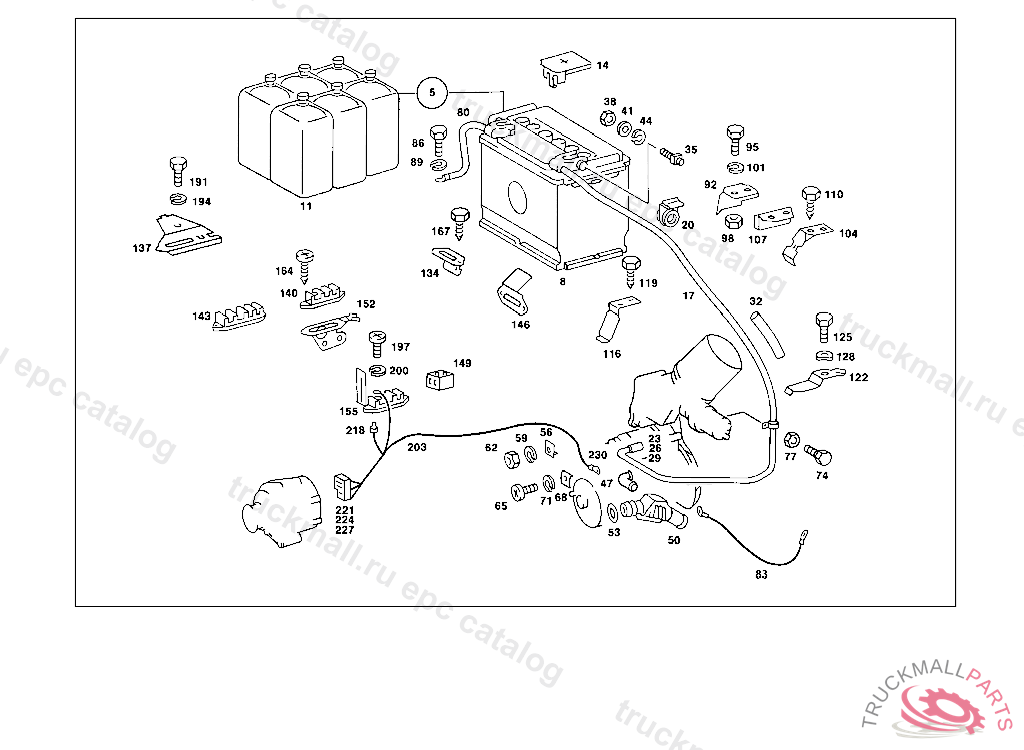

Поз.
Артикул
Описание
5
BATTERY , Replaced By: A1405400101
5
BATTERY , Replaced By: A1405400001
5
BATTERY , Replaced By: A1405400101
5
BATTERY , Replaced By: A1245400301
5
BATTERY , Replaced By: A0035417501, +001A0009891315
5
BATTERY , Replaced By: A0035419201, +001A0009891415
5
BATTERY , Replaced By: A1295400101
5
BATTERY , Replaced By: A1245400201
8
BATTERY , Replaced By: A0025414101
8
BATTERY , Replaced By: A0035416901
8
BATTERY , Replaced By: A0035414301
8
BATTERY , Replaced By: A0035417201
8
BATTERY , Replaced By: A0035417501
8
BATTERY , Replaced By: A0035419201
8
BATTERY , Replaced By: A0045414601
8
BATTERY100 AH
8
BATTERY PARTS KIT,5 419106
11
BATTERY ACID BOTTLE SET
11
BATTERY ACID BOTTLE SETTO 001 541 79 01
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891315
11
BATTERY ACID BOTTLE SET , Replaced By: A0009891415
14
BOOT , Replaced By: A0015460835
14
BOOT POS. POLE
17
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR
17
POSITIVE CABLE FROM BATTERY TO STARTING MOTOR, 105 183699 190 017094
20
GROMMET , 003 038504 EXCEPT FOR 038143,038206,038214,038216-038220,038223-038227,038229,038231,038232,038234-038311,038313,038314, 038316-038324,038326-038330,038332-038335,038337,038338,038340,038342,038343,038345-038350,038352- 038368,038372-038374,038376,038380,038382,038383,038385-038387,038389-038397,038401-038405,038408- 038424,038426-038494,038496-038502.
35
SCREW NEG.POLE
38
NUT
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
47
BOOT
47
BOOT , Replaced By: A1165460135
50
BOOT , 003 083514 EXCEPT FOR 038269,038362,038363.
53
LOCK , 003 083514 EXCEPT FOR 038269,038362,038363.
56
LOCK CABLE TO STARTING MOTOR,TERMINAL 30
59
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
62
NUT
62
NUT , Replaced By: N304032010002
65
SCREW ELECTRIC CABLE TO HORN
68
MOUNTING BOW CABLE TO STARTING MOTOR,TERMINAL 50
80
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 220 MM
80
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND 310 MM
83
NEG. CABLE FROM SIDE MEMBER TO ENGINE
86
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
SCREW , Replaced By: N304017008016
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
116
BRACKET STARTING CABLE TO BATTERY FRAME
119
SHEET METAL SCREW BRACKET TO CAB FLOOR
