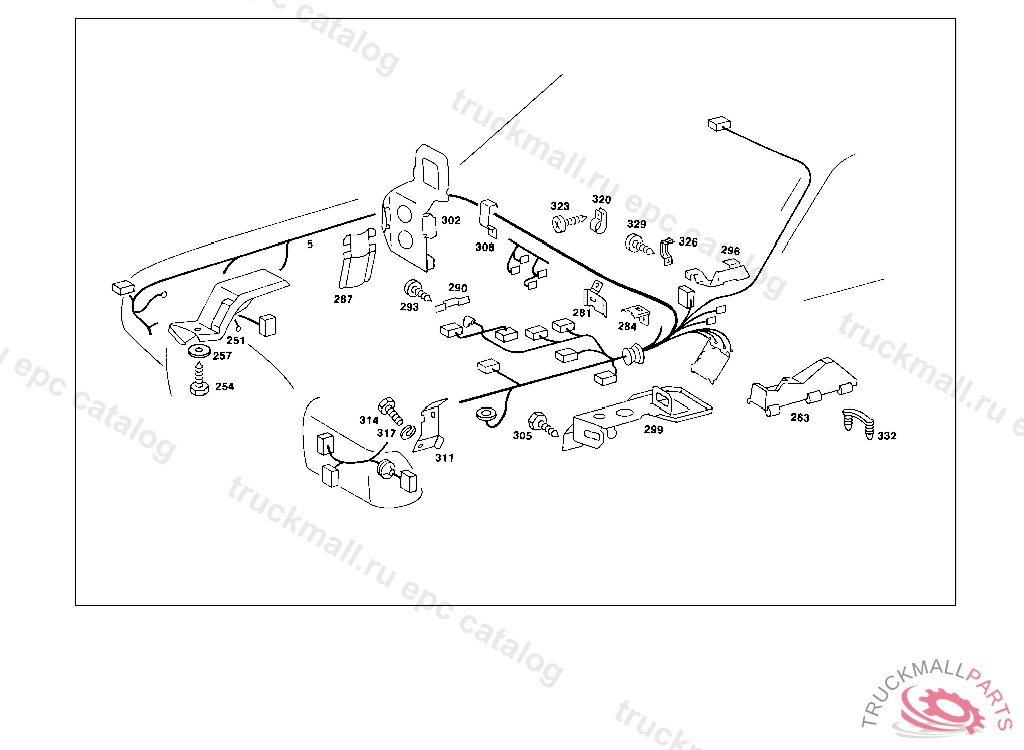

220 D - 123.126 - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

5

CABLE HARNESS MAIN CABLE HARNESS

5

CABLE HARNESS MAIN CABLE HARNESS, NOT FOR CHASSIS 123.123,125,183 UP TO CHASSIS:123.120 146686 EXCEPT FOR 139710,139954,141896,141900,142117,142121,142122,142810,142819,142927,142974,142977,142982,143095, 143101,143107,143111,143411,143412,143415,143532,143535,143536,143745,146244,146251,146259,146261, 146272,146275,146279,146287,146289-146291,146293,146296-146300,146303,146305-146308,146311,146312, 146314-146316,146318,146319,146321-146329,146331-146335,146337-146346,146348,146349,146352-146400, 146402-146465,146467-146507,146509-146548,146550-146685.

5

CABLE HARNESS MAIN CABLE HARNESS

5

CABLE HARNESS MAIN CABLE HARNESS

5

CABLE HARNESS MAIN CABLE HARNESS

251

COVERING

254

SHEET METAL SCREW BRACKET TO CAB FLOOR

257

WASHER , Replaced By: N009021005205

257

WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.

263

COVERING FOOT OPERATED PARKING-BRAKE CABLE

281

BRACKET

287

COVERING MAIN CABLE HARNESS TO RIGHT SIDE PART

290

BRACKET MAIN CABLE HARNESS TO HEATING

293

SHEET METAL SCREW BRACKET TO CAB

293

SHEET METAL SCREW. TAPPING SCREW , Replaced By: N007981003203

296

BRACKET MAIN CABLE HARNESS TO BRACKET,FLOOR SHIFT

299

BRACKET UNITS AND MAIN CABLE HARNESS

302

BRACKET UNITS AND MAIN CABLE HARNESS

305

SHEET METAL SCREW BRACKET TO CAB FLOOR

311

BRACKET MAIN CABLE HARNESS

314

SCREW COVER PLATE TO COVER PLATE M 6 X 12

314

SCREW , Replaced By: N304017006018

317

LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER

320

CLAMP ELECTRIC CABLE TO FRONT SEAT

323

SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR

326

CLAMP CENTRAL CONSOLE

329

SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR

332

CLIP MAIN CABLE HARNESS TO FRONT FLOOR

332

CLIP MAIN CABLE HARNESS BRANCH-OFF BETWEEN STARTING MOTOR & REAR CABLE CONNECTOR
