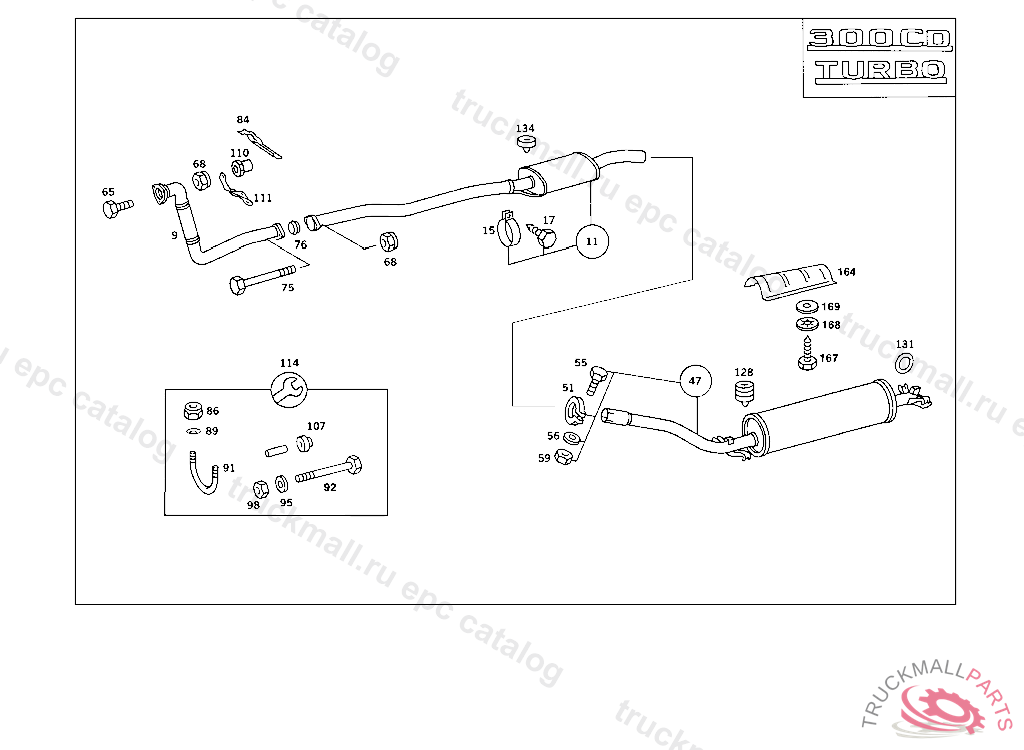

Поз.
Артикул
Описание
9
EXHAUST PIPE , Replaced By: A1234901720
9
EXHAUST PIPE FRONT, CALIFORNIA FROM MODEL YEAR'85
9
EXHAUST PIPE , CALIFORNIA UP TO END OF MODEL YEAR'84
11
EXHAUST MUFFLER WITH PIPE CENTRAL
15
CLAMP HEAT SHIELD MOUNTING
17
SHEET METAL SCREW BRACKET TO WINDOW SILL
47
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234908415
47
EXHAUST MUFFLER WITH PIPE REAR
51
CLAMP
55
SCREW REAR AXLE REGULATING SOLENOID VALVE
56
WASHER BRACKET TO CROSS MEMBER
59
NUT
68
NUT , Replaced By: A0009903250
68
NUT POWER CYLINDER TO BRACKET
75
SCREW VALVE TO BRACKET M 8X55
75
SCREW , Replaced By: N304017008043
76
SEAL RING , Replaced By: A2024920181
76
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
84
BRACKET EXHAUST PIPE TO TRANSMISSION
86
NUT , Replaced By: A0009903250
86
NUT POWER CYLINDER TO BRACKET
89
DISC SPRING EXHAUST PIPE TO BRACKET
91
CLAMPING BRACKET CATALYST SUSPENSION,A 363212
91
CLAMPING BRACKET , Replaced By: A2014920327
91
CLAMPING BRACKET FRONT EXHAUST PIPE TO BRACKET
92
SCREW , Replaced By: N304017008021
92
SCREWM 8X40
92
SCREW PIPE CLAMP
95
WASHER HIGH PRESSURE HOSE TO BRACKET
98
NUT
107
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
110
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
110
SPACER TUBE ,019699A 122676, Replaced By: A1264920172, +001N000933008147
110
SPACER TUBE
111
PLATE
114
REPAIR KIT , Replaced By: A2014900237
114
REPAIR KIT , Replaced By: A1264900537
114
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION,A 363212 ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
128
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
131
DAMPING PAD EXHAUST PIPE SUSPENSION
134
RUBBER BUFFER IN FRONT OF CENTRAL MUFFLER, 000 157706 EXCEPT FOR 144100,147196,147780,147785,148473,148483,149826,150547,152057,152059,152062,154612,156255,156340, 156343,156366,156482,156502,156518,156532,156541,156643,157389,157411,157413,157416,157419,157422, 157425-157427,157429,157430,157433-157435,157437-157439,157441,157443-157445,157448,157451-157454, 157458,157461,157463,157464,157468,157470,157471,157473-157475,157477-157479,157481,157482,157484- 157486,157488-157501,157504-157511,157513-157519,157521-157597,157599,157600,157602-157604,157606- 157609,157611-157613,157615-157620,157622,157624,157625,157627-157705. 003 078976 007 064069 102 149490 EXCEPT FOR 138704 103 150177 EXCEPT FOR 139689 105 164441 EXCEPT FOR 159864
134
RUBBER BUFFER
168
LOCK REAR AXLE STEP BEARING TO SUBSTRUCTURE
169
SEAL
