Поз.
Артикул
Описание

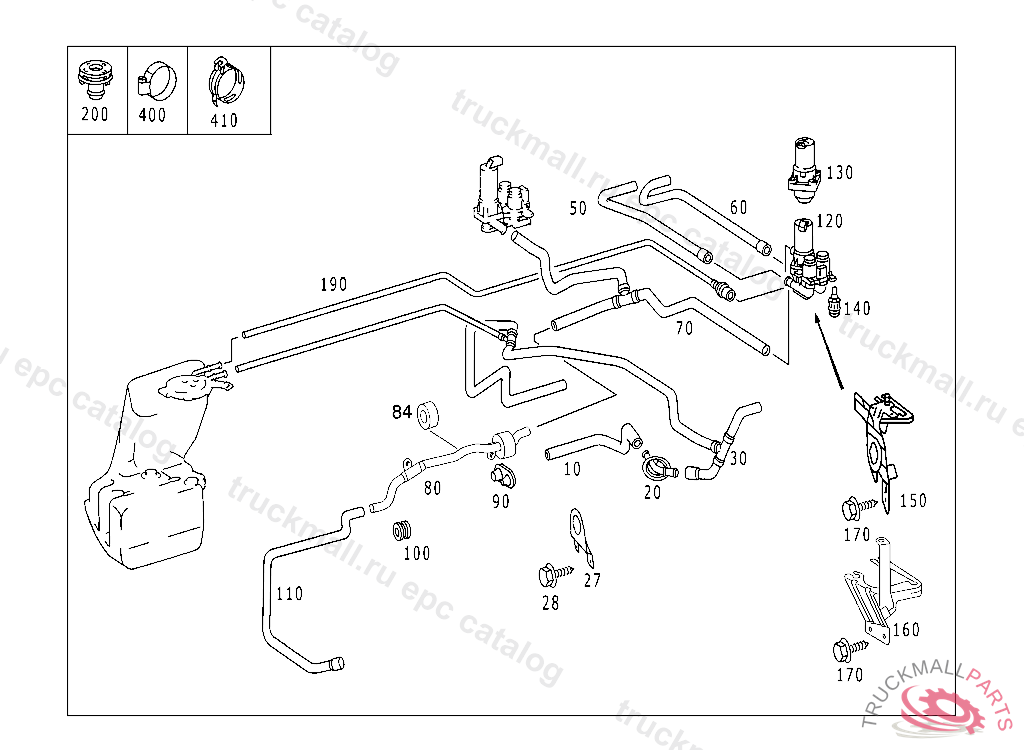

10
HOSE FROM ENGINE TO CONNECTING TUBE
20
PIPELINE FEED THRU PARTITION PANEL
27
BRACKET PIPE LINE TO PARTITION PANEL
28
COMBINATION BOLT MOUNTING PARTS
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER, A 44100720040630805
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
30
HOSE FROM CONNECTING TUBE TO HEAT EXCHANGER
50
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
50
HOSE HEAT EXCHANGER RETURN TO TOP LEFT WATER VALVE
60
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
60
HOSE HEAT EXCHANGER RETURN TO BOTTOM RIGHT WATER VALVE
70
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
70
HOSE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
80
PIPELINE ELECTROMAGNETIC WATER VALVE HOSE ON ADAPTOR
90
GROMMET TO SPRING TOWER FOR RETURN LINE
100
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
110
HOSE RETURN LINE TO ENGINE
120
VALVE (ELECTRO-MAGNETIC WITH CIRCULATION PUM
130
CIRCULATION PUMP
140
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
150
BRACKET TIMING VALVE
160
BRACKET TIMING VALVE
170
COMBINATION BOLT MOUNTING PARTS
190
HOSE RECIRCULATION, WINDOW WASHER HEATING
190
HOSE RECIRCULATION, WINDOW WASHER HEATING
200
CATCH RETURN
400
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
400
HOSE CLAMP LINE MOUNTING
400
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
400
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
400
CLAMP HOSE FASTENING 28-35 MM,V 207570
400
CLAMP25-40X13 MM
410
CLAMP. LOOM TIE
410
CLAMP27-30 MM
410
CLAMP. LOOM TIE
410
CLAMP25 MM
410
CLAMP ADVANCE ENGINE 27-30 MM
410
CLAMP POWER STEERING PUMP TO OIL TANK, FROM MODEL YEAR 2000CODE 800
410
LOOM TIE , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
410
CLAMP HOSE TO HEAT EXCHANGER 23-26 MM
