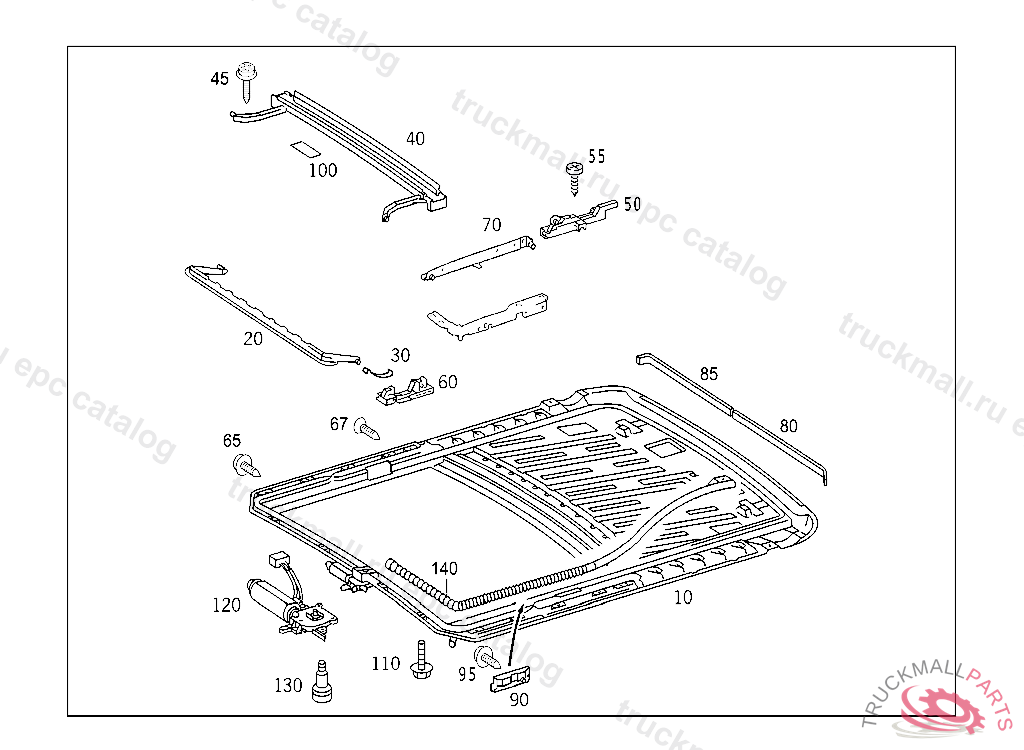

Поз.
Артикул
Описание
10
FRAME WITH DRAFT DEFLECTOR, A 37444220030603
10
FRAME WITH DRAFT DEFLECTOR, A 37444120030603
20
BAFFLE DRAFT DEFLECTOR
30
SPRING AT BOTTOM FRAME, FOR DEFLECTOR
40
RAIL (DRIP MOULDING)
45
BOLT SLIDE RAIL TO FRAME M4X9,5
50
ANGLE LEFT, E 01872420030630 A 44988320021025 F 00000020030112 R 09958020030328, Replaced By: A2117800112, +001A2117800212
50
ANGLE RIGHT, A 03842520030604
50
ANGLE LEFT, E 01872520030630 A 44988420021025 F 00000020030112 R 09958120030328
55
SCREW
60
GUIDE LEFT
60
GUIDE ACTUATION SLIDING ROOF GUIDING PART AND COVER CONTROL, RIGHT
65
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
67
SCREW
70
GUIDE AT LIFTING ANGLE LEFT
70
GUIDE AT LIFTING ANGLE RIGHT
80
PAD AT FRAME, LEFT 12MM, TO BE ADAPTED DURING ASSEMBLY
85
PAD AT FRAME,RIGHT 12MM, TO BE ADAPTED DURING ASSEMBLY
90
COVERING CABLE TO FRAME LEFT
90
COVERING CABLE TO FRAME RIGHT
90
COVER LEFT AND RIGHT, TO BE ADAPTED DURING ASSEMBLY
95
SCREW MOUNTING TO DEFLECTOR,A 141900, Replaced By: N000000003307
100
INSULATION DRIP MOULDING 60X15 MM
110
SCREW SELF-TAPPING,943 408671
120
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF
130
SCREW MOTOR TO FRAME
140
CABLE LEFT
140
CABLE RIGHT
