Mercedes A0009972081 - Втулка

O 309 D 309.171

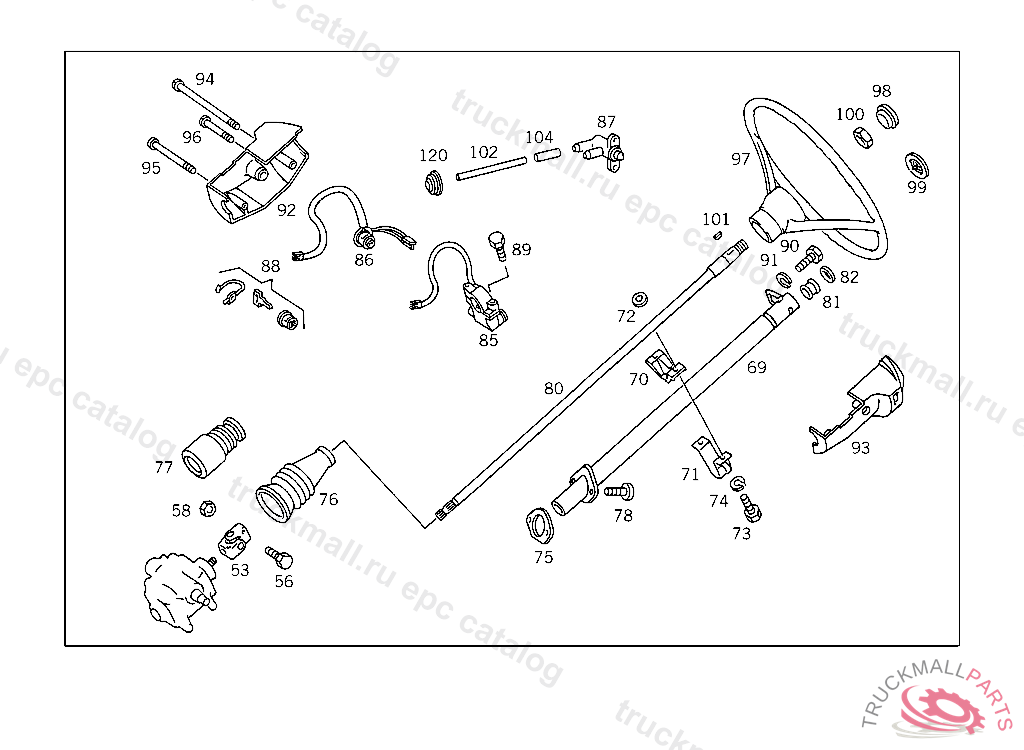

46 STEERING - 001 STEERING IL. 2
  • Поз.
    Артикул
    Описание
  • 53
    UNIVERSAL JOINT ,370112
  • 53
    UNIVERSAL JOINT ,370112
  • 53
    UNIVERSAL JOINT ,370112
  • 53
    UNIVERSAL JOINT ,370111
  • 56
    SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
  • 58
    NUT BRACKET TO SIDE MEMBER
  • 69
    STEER. COLUMN JACKET TUBE
  • 69
    STEER. COLUMN JACKET TUBE , UP TO CHASSIS 556499, FROM CHASSIS SEE SERIE
  • 69
    STEER. COLUMN JACKET TUBE ,370112
  • 69
    STEER. COLUMN JACKET TUBE , 10/50 FROM IDENT NO. 268538,20/60 FROM IDENT NO. 282636370111
  • 69
    STEER. COLUMN JACKET TUBE ,000841-004396, 309.0, 011948-074118, 309.1
  • 70
    STEERING COLUMN BRACKET STEERING COLUMN JACKET TUBE,FIRE WALL
  • 71
    STRAP STEERING COLUMN JACKET TUBE,FIRE WALL
  • 72
    WASHER EXHAUST MUFFLER TO STRAP
  • 72
    WASHER , Replaced By: N000125008443
  • 73
    SCREW PIPE CLAMP
  • 73
    SCREW , Replaced By: N304017008021
  • 74
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 75
    SEAL STEERING COLUMN JACKET TUBE TO FLOOR PLATE
  • 76
    BOOT UNIVERSAL JOINT COVERING,153201, 10/50, 163470, 20/60
  • 77
    BOOT UNIVERSAL JOINT COVERING
  • 78
    SCREW HAND BRAKE VALVE TO BRACKET
  • 80
    STEERING SHAFT ,798486
  • 80
    STEERING SHAFT ,798486
  • 80
    STEERING SHAFT ,193445370111
  • 80
    STEERING SHAFT ,004397, 309.0, 074119, 309.1153201, 10/50, 163470, 20/60
  • 80
    STEERING SHAFT ,004396, 309.0, 074118, 309.1
  • 81
    BUSHING STEERING COLUMN BEARING
  • 82
    RING STEERING COLUMN BEARING
  • 85
    STEERING LOCK ,556500 UP TO CHASSIS 556499 SEE SA 24336
  • 86
    SWITCH BOX ,556500 UP TO CHASSIS 556499 SEE SA 24336
  • 87
    VALVE
  • 88
    TUMBLER WITH 2 KEYS YMOS
  • 89
    SCREW (BREAK-OFF BOLT),STEERING LOCK MOUNTING
  • 90
    SCREW CABLE CONNECTOR, UP TO CHASSIS 818714 EXCEPT FOR:500000-599999
  • 91
    LOCK WASHER STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET
  • 92
    SHELL STEERING COLUMN PANELLING
  • 93
    SHELL STEERING COLUMN PANELLING,REAR, UP TO CHASSIS 556499, FROM CHASSIS SEE SERIE
  • 93
    SHELL STEERING COLUMN PANELLING,FRONT, UP TO CHASSIS 556499, FROM CHASSIS SEE SERIE
  • 93
    SHELL STEERING COLUMN PANELLING
  • 94
    SCREW STEERING COLUMN PANELLING
  • 95
    SCREW STEERING COLUMN PANELLING
  • 96
    SCREW SHELL TO STEERING COLUMN
  • 97
    STEERING WHEEL ,370112
  • 97
    STEERING WHEEL IVORY-COLORED
  • 98
    CAPTO 000 464 11 01
  • 99
    BADGE STEERING WHEEL, NO.8316INO.7C52INO.7B90INO.9051I II I
  • 100
    NUT STEERING WHEEL TO STEERING COLUMN
  • 101
    WOODRUFF KEY FLANGE TO SHIFTING TUBE
  • 102
    HOSE
  • 102
    HOSE
  • 102
    HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
  • 102
    PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
  • 102
    PIPE LINE FROM CHECK VALVE DISTRIBUTOR TO SUPPLY TANK 500 MM, ORDER BY THE METER 114.010 FROM CHASSIS 031062,114.015,017 FROM CHASSIS 033609,114.021 FROM CHASSIS 001552,114.022 FROM CHASSIS 000843,114.023 FR OM CHASSIS 000001 115.010 FROM CHASSIS 034113,115.015 FROM CHASSIS 032215 114.010,021,022 UNTIL PRODUCTION STOP, 114.011 UP TO CHASSIS 108425, 114.015,017 UP TO CHASSIS 245853, 114.023 UP TO CHASSIS 100866 AND FOOTN.63
  • 102
    HOSE , ORDER BY THE METER
  • 102
    HOSE FUEL LINE, ORDER BY THE METER
  • 102
    HOSE FUEL LINE, ORDER BY THE METER
  • 104
    HOSE TO ELEMENT AT FRONT SEAT
  • 120
    GROMMET CAB ROOF
  • 120
    PLATE VACUUM LINE THRU WINDOW LEVEL GIRDER,556500 UP TO CHASSIS 556499 SEE SA 24336
  • 999
    BOOTTO 381 320 07 89,617 320 00 89
  • 999
    CAP , Replaced By: A3454647131
  • 999
    KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
  • 999
    KEY BLANK YMOS
  • 999
    NUT RETAINER , Replaced By: A0019906791
  • 999
    HOSE FROM STEERING LOCK TO VACUUM PUMP LINE 830 MM
  • 999
    NUT , Replaced By: N913004008005
  • 999
    STEERG. WORM SECTOR SHAFT , Replaced By: A3094600211
  • 999
    PIN , 003202, Replaced By: A3094620074, +001N912002010000
  • 999
    TUMBLER LESS KEY YMOS, STATE LOCK NUMBER WHEN ORDERING UP TO IDENT NO.: 5 447412, EXCEPT 5 446593
  • 999
    STEERING COUPLING , Replaced By: A3094600210
  • 999
    UNIVERSAL JOINT , Replaced By: A3094600157
  • 999
    STEER. COLUMN JACKET TUBE , 011947, Replaced By: A3094600316, +001A3094620397
  • 999
    STEER. COLUMN JACKET TUBE , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 330485, Replaced By: A3094601916
  • 999
    DRAG LINK , Replaced By: A3094603105
  • 999
    STEERING SHAFT
  • 999
    SEAL , Replaced By: A3094620397
  • 999
    BOOT , Replaced By: A3094621396
  • 999
    JOINT , Replaced By: A0004604548
  • 999
    RING HALF STEERING COLUMN MOUNTED SWITCH RESET,370111
  • 999
    STEERING WHEEL , Replaced By: A3104640001, +001A0004640432
  • 999
    SHEET METAL SCREW
