Mercedes N000000000319 - ХОМУТ

L 508 DG 309.416

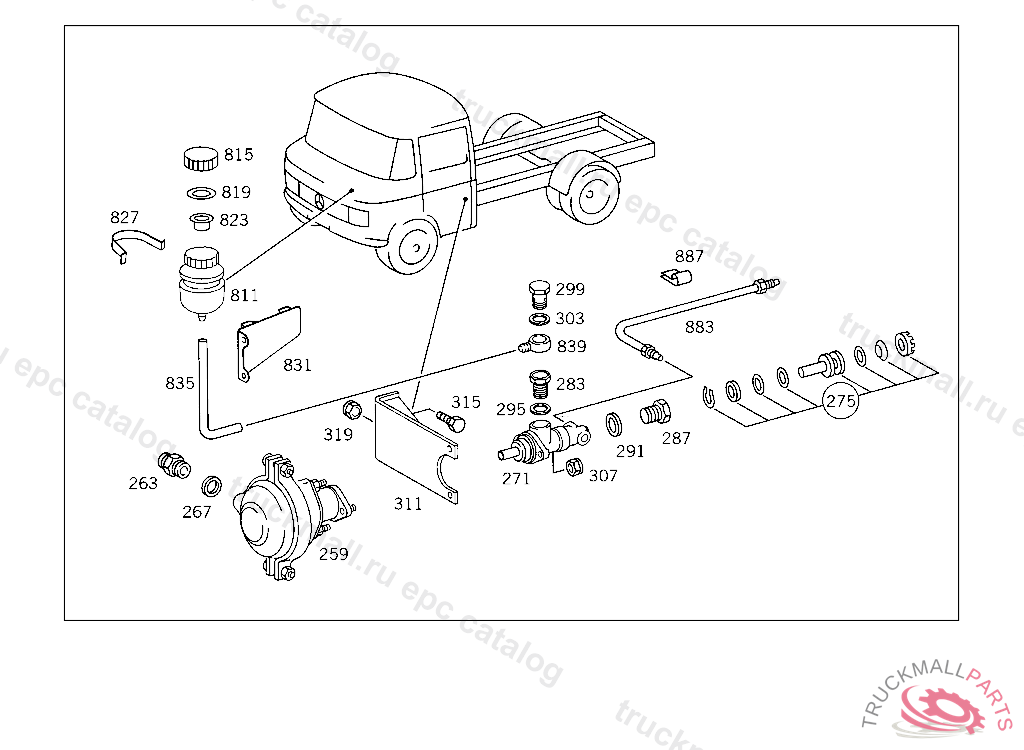

30 CONTROL - 001 FAST IDLE SWITCH,COMPRESSED AIR OPERATED IL.1
  • Поз.
    Артикул
    Описание
  • 259
    BRAKE CYLINDER
  • 259
    BRAKE CYLINDER , ONLY REPLACEABLE BY PAIRS, Replaced By: A0014312114
  • 263
    FITTING DELIVERY LINE TO PUMP
  • 267
    SEALING RING. SEAL RING DELIVERY LINE TO STEERING
  • 271
    BRAKE MASTER CYLINDER FRAME,LEFT
  • 275
    REPAIR KITTO 002 430 50 01
  • 283
    NUT TWO-WAY VALVE "12",4 4121264 691315
  • 287
    SCREW PLUG, FILLING HOUSING,BOTTOM
  • 287
    SCREW PLUG , Replaced By: N000000000648
  • 291
    SEAL RING , Replaced By: N007603010110
  • 291
    SEAL RING PNEUMATIC VALVE
  • 295
    SEAL RING LINE CONNECTION
  • 299
    HOLLOW SCREW , Replaced By: N915036010108
  • 299
    HOLLOW SCREW FUEL LINE TO FEED PUMP
  • 303
    SEAL RING FROM FUEL TANK TO FUEL TANK
  • 307
    NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
  • 307
    NUT , Replaced By: N913004008001
  • 307
    HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 311
    BRACKET FRAME,LEFT
  • 315
    SCREW BRACKET TO SIDE MEMBER
  • 315
    SCREW , Replaced By: N304017010002
  • 319
    NUT AIR CLEANER ELEMENT
  • 811
    RESERVOIR LESS WARNING DEVICE ATE
  • 811
    RESERVOIR WITH CLUCH AND BRAKE SYSTEM WARNING DEVICE, FROM IDENT NO. 352291 EXCCEPT FOR 352759,353163,353868,354161. ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272.
  • 811
    RESERVOIR , Replaced By: A0004318302
  • 811
    RESERVOIR , Replaced By: A0004314702
  • 815
    FILLER CAP , Replaced By: A0004315433
  • 815
    FILLER CAP BUTTRESS THREAD
  • 819
    SEAL RING
  • 819
    SEAL RING42X21.5 MM
  • 823
    STRAINER
  • 823
    STRAINER , Replaced By: A0004314334
  • 827
    CLAMPTO 000 431 58 02
  • 827
    CLAMP
  • 831
    BRACKET FLUID RESERVOIR,145737 ALSO INSTALLED ON 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. EXCEPT FOR 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138.
  • 835
    PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
  • 835
    HOSE , Replaced By: A3109970382
  • 835
    HOSE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3109970382
  • 835
    HOSE , Replaced By: A6039970482
  • 835
    HOSE FLUID RESERVOIR
  • 839
    BANJO UNION , Replaced By: N915052006005
  • 839
    BANJO UNION HEATING CONNECTION,K 169122
  • 883
    LINE FROM TEST CONNECTION TO LEFT FRONT WHEEL BRAKE HOSE 1400 MM
  • 883
    LINE FROM BRAKE POWER REGULATOR TO REAR BRAKE HOSE 500 MM
  • 883
    LINE FROM DIAPHRAGM CYLINDER TO BRAKE HOSE AT REAR AXLE,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 883
    LINE FROM DIAPHRAGM CYLINDER TO BRAKE HOSE AT REAR AXLE,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 883
    LINE , Replaced By: A3404201429
  • 883
    LINE
  • 883
    LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
  • 887
    CLAMP , Replaced By: N916016008200
  • 887
    CLAMP , Replaced By: A3604300143
  • 887
    CLAMP ,K 147121, Replaced By: N000000000319
  • 887
    CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
  • 999
    SCREW PLUG , Replaced By: A0004315433
  • 999
    SCREW PLUG CONNECTION "1","2",4 478330
  • 999
    REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
  • 999
    REPAIR KIT (BRAKE BOOSTER)
  • 999
    VALVE (CHECK VALVE)
  • 999
    HOSE , Replaced By: A0004358382
  • 999
    HOSE
  • 999
    FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
  • 999
    CLAMP LINE TO CROSS MEMBER,HB746633JB783613
  • 999
    CLAMP , Replaced By: N916016020201
  • 999
    CLAMP , Replaced By: N916016022203
  • 999
    LOOM TIE , Replaced By: N916017020000
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0044300630
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0014304630
  • 999
    BRAKE BOOSTER ASSEMBLY , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
  • 999
    REPAIR KIT PRESSURE REGULATOR WABCO
  • 999
    REPAIR KIT , Replaced By: A0004301407
  • 999
    LOOM TIE HOSE TO FILLER NECK
  • 999
    LOOM TIE PIPE ELBOW TO COMPRESSOR
  • 999
    BRAKE MASTER CYLINDER , UP TO CHASSIS 162733
  • 999
    BRAKE MASTER CYLINDER
  • 999
    REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
  • 999
    BRAKE MASTER CYLINDER
  • 999
    SEAL RING
  • 999
    CLAMP TO MOUNT MAIN CABLE HARNESS
  • 999
    BRACKET BRAKE BOOSTER ASSEMBLY
  • 999
    BRACKET COMPRESSED AIR LINE MOUNTING,A 069681
  • 999
    ROD , Replaced By: A3104201174, +001A3109960001, +001A3109960101, +001N000934012022, +001N000934012031
  • 999
    LINE , Replaced By: A3404204029
  • 999
    LINE , FROM IDENT NO. 042866-148036 EXCEPT FOR 042868-042871,042876,042878-042881,042982,042896,042902,042921,042943,042950,043013, 043021,140555,142078, Replaced By: A3404204329
  • 999
    LEVER INTERMEDIATE LEVER, FROM CHASSIS012115530029
  • 999
    LINE
  • 999
    LEVER INTERMEDIATE LEVER
  • 999
    LINE FROM BRAKE BOOSTER ASSEMBLY TO BRAKE HOSE ON REAR AXLE 6X0.7 MM,D 335216
  • 999
    PIVOT INTERMEDIATE LEVER TO BRACKET, 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    SCREW
  • 999
    PIVOT INTERMEDIATE LEVER TO BRACKET
  • 999
    SUPPORT BRAKE BOOSTER ASSEMBLY,012115-145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    SUPPORT BRAKE BOOSTER ASSEMBLY, ON TRUCKS,L.H.D.UP TO CHASSIS 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795 145697,145701,145807,145808,145819,145825,145830,145837,145840,145846,145860,145861,145888,145901, 145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145660. ON TRUCKS,R.H.D.UP TO CHASSIS 148036 WITH EXCEPTION OF 140555,142078 ON BUSES,L.H.D.UP TO CHASSIS 018153 ALSO INSTALLED ON 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,01 8355 WITH EXCEPTION OF 017661,017829, ON BUSES,R.H.D.UP TO CHASSIS 018729
  • 999
    CONNECTOR
  • 999
    CONNECTOR , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 999
    BRACKET , Replaced By: A3104312740
  • 999
    BRACKET FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I, 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 999
    HOSE , Replaced By: A3109970282
  • 999
    HOSE , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 999
    LOCK LEVER TO CONSOLE, FROM CHASSIS 698033 ALSO INSTALLED ON, 500001-599999
  • 999
    YOKE R.H. THREAD
  • 999
    UNION NUT
  • 999
    SLEEVE LEAK LINE
