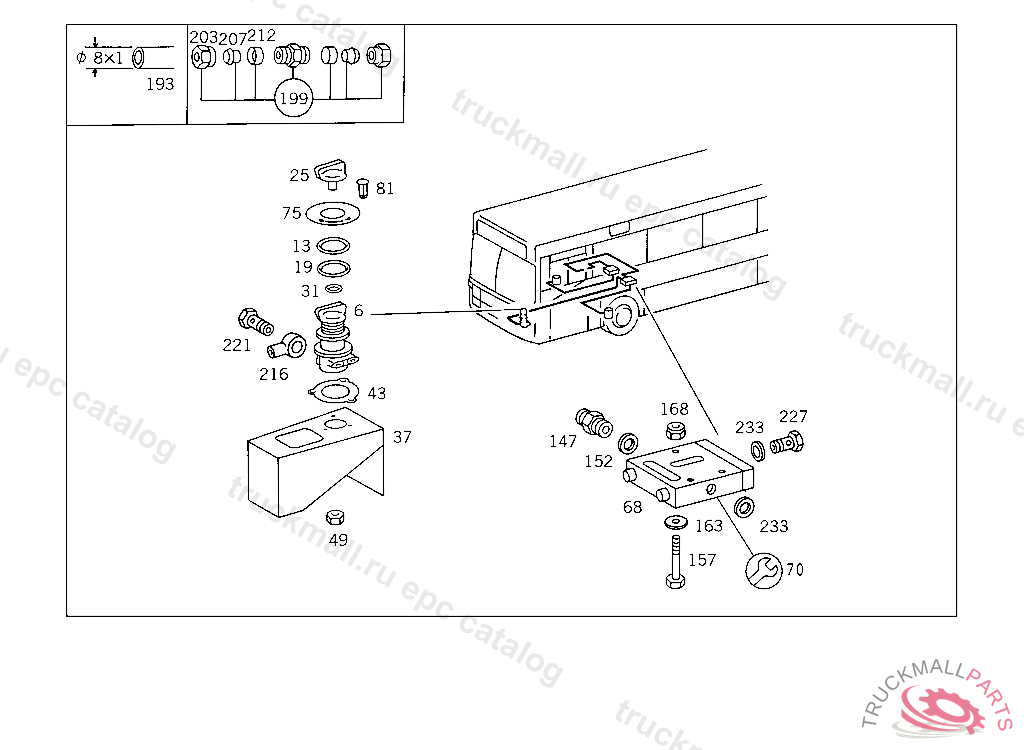

Поз.
Артикул
Описание
6
VALVE (3/2-WAY SOLENOID VALVE)
13
SEAL RING
19
SEAL RING
19
SEAL RING , Replaced By: A0029971640
19
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
25
ACTUATING PARTTO 003 997 24 36,003 997 31 36
31
SEAL RING
37
CONSOLE PNEUMATIC-SUSPENSION CONTROL LINE
43
BRACKET 4/3-WAY VALVE
49
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
68
VALVE (3/2-WAY SOLENOID VALVE)
70
REPAIR KIT 3/2-WAY SOLENOID VALVE
75
INSTRUCTION PLATE 4/3-WAY VALVE
81
GROOVED NAIL GUIDE SIGN TO INSTRUMENT PANEL, UP TO CHASSIS 038985 EXCEPT FOR 036983
147
FITTING DELIVERY LINE TO PUMP
147
FITTING LINE CONNECTION
152
SEAL RING FRONT AXLE/REAR AXLE 3/2-WAY VALVE
157
SCREW 3/2-WAY VALVE TO BRACKET, UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
163
WASHER , Replaced By: N009021005205
163
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
168
NUT , Replaced By: N910113005001
168
NUT HOOK TO BRACKET
193
PLASTIC PIPE AERATION, ORDER BY THE METER
199
FITTING (PARTS KIT),LINE RUPTURE
199
FITTING , Replaced By: A0029905971
203
UNION NUT LINE CONNECTION
207
GLAND LINE CONNECTION
212
SLEEVE LINE CONNECTION
216
BANJO UNION HEATING CONNECTION,K 169122
216
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
221
HOLLOW SCREW LINE CONNECTION
227
HOLLOW SCREW FUEL LINE TO FEED PUMP
227
HOLLOW SCREW , Replaced By: N915036010108
233
SEAL RING 3/2-WAY VALVE,CONNECTION: "Z"
233
SEAL RING FRONT AXLE/REAR AXLE 3/2-WAY VALVE
999
COVERING PARKING BRAKE VALVE
999
SCREW DIODE CASE TO OPERATING UNIT CASE
999
NUT , Replaced By: N910113005001
