Поз.
Артикул
Описание

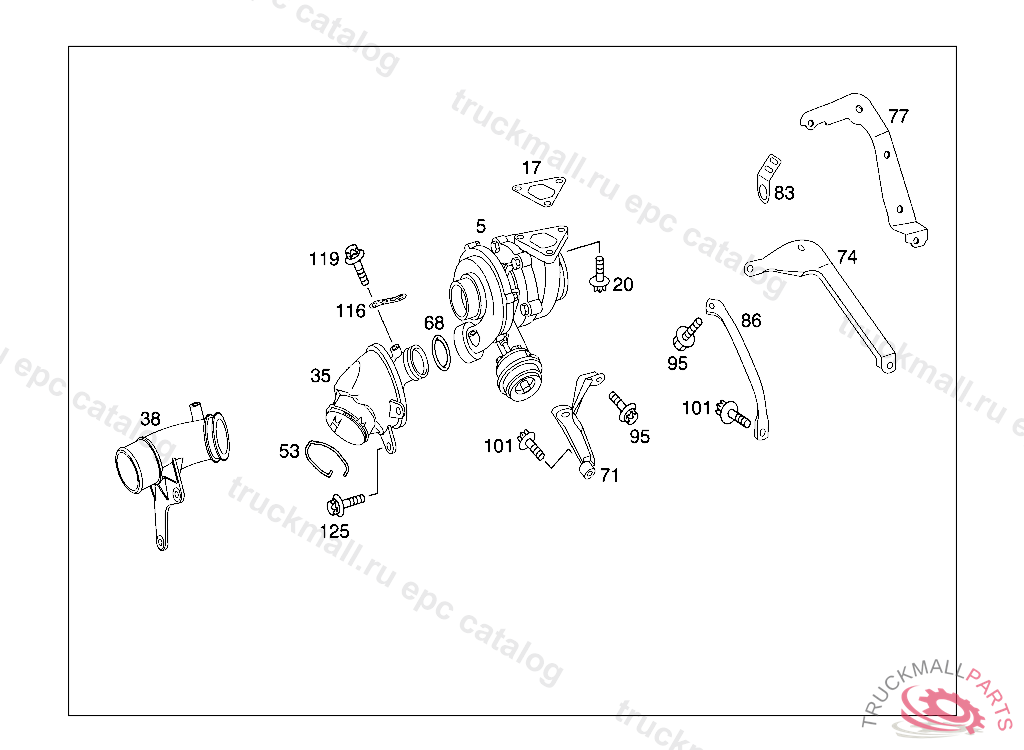

5
TURBOCHARGER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
SCREW , Replaced By: N000000003161
20
HEXAGON HEAD BOLT. SCREW TURBOCHARGER TO EXHAUST MANIFOLD
38
CHARGING AIR LINE
68
SEAL RING
77
SUPPORT EXHAUST GAS TURBOCHARGER
77
SUPPORT , Replaced By: A6120960745
83
BRACKET ELECTRIC CABLES TO CRANKCASE,940 194252
95
BOLT. SCREW SUPPORT TO TURBOCHARGER
101
SCREW BRACKET TO SIDE MEMBER M8X20
116
BRACKET CHARGING AIR LINE TO EXHAUST GAS TURBOCHARGER, 30 271604 40 175400
116
BRACKET CHARGING AIR LINE TO EXHAUST GAS TURBOCHARGER, 30 271603 40 175399
119
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
125
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
