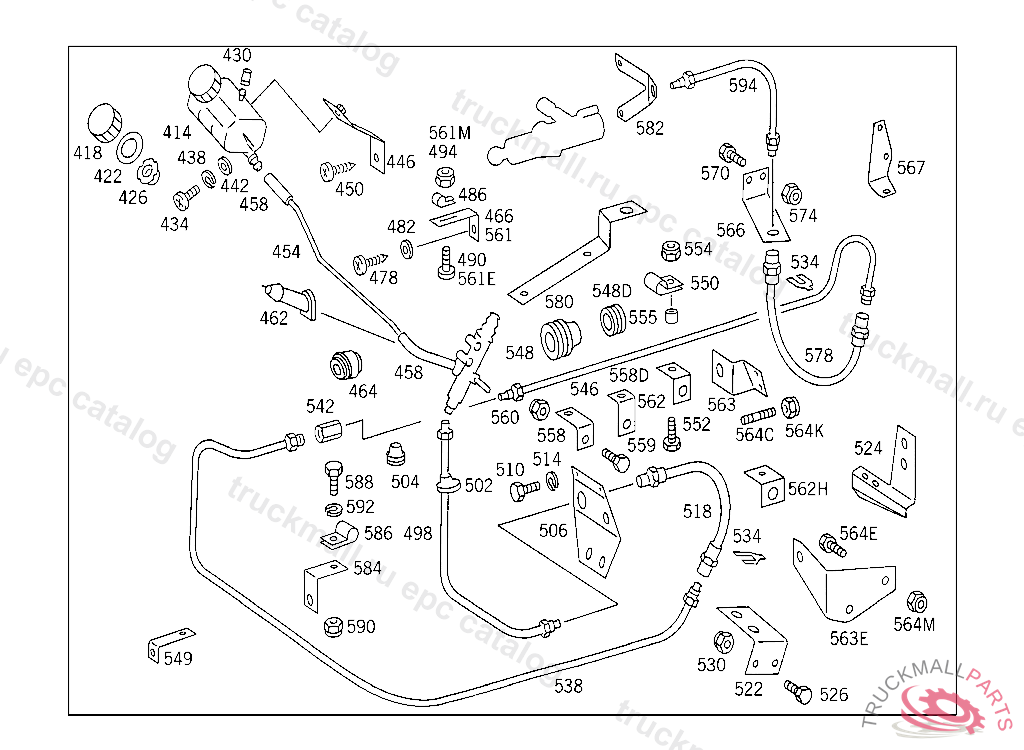

Поз.
Артикул
Описание
414
RESERVOIR RESERVOIR
414
RESERVOIR RESERVOIR, 415 5 014669 416 5 000516 417 4 972024
418
LOCKING CAP
422
SEAL RING , Replaced By: A0009972940
422
SEAL RING
426
STRAINER
430
CAP RESERVOIR DE-AERATION
434
SCREW DELIVERY AND SUCTION LINES TO BRACKET
438
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
442
WASHER , Replaced By: N009021006208
442
WASHER COMPRESSED AIR LINE TO BRACKET
446
BRACKET RESERVOIR
450
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
454
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
458
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
462
GROMMET CLUTCH LINE THRU CAB WINDOW SILL
464
GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797365
466
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
478
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
482
WASHER COMPRESSED AIR LINE TO BRACKET
482
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
486
CLAMP LINE MOUNTING
490
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
494
NUT , Replaced By: N913004006001
494
NUT PUMP TO BRACKET
498
LINE FROM VALVE TO CONNECTION FITTING,K 172343
498
LINE , Replaced By: A3812903214
498
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
502
GROMMET BATTERY CASE
502
GROMMET , Replaced By: A3149970581
504
GROMMET TEMPERATURE GAUGE SENDER UNIT
506
BRACKET HYDRAULIC LINE TO CAB FLOOR
510
SCREW PUMP TO BRACKET
510
SCREW , Replaced By: N304017006016
514
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
518
HOSE , Replaced By: A3982950035
518
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET
522
BRACKET AT OIL TANK BRACKET
522
BRACKET AT OIL TANK BRACKET
526
SCREW , Replaced By: N304017006016
526
SCREW PUMP TO BRACKET
530
NUT PUMP TO BRACKET
530
NUT , Replaced By: N913004006001
534
BRACKET. LOCK , Replaced By: A6525040038
534
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
538
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
538
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
550
CLAMP ,K 147121, Replaced By: N000000000319
550
CLAMP , Replaced By: A3604300143
550
CLAMP , Replaced By: N916016008200
550
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
552
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
552
SCREW PUMP TO BRACKET
552
SCREW , Replaced By: N304017006016
554
NUT , Replaced By: N913004006001
554
NUT PUMP TO BRACKET
555
SPACER TUBE
555
SPACER TUBE , Replaced By: A4082910153
558
ANGLE LINE MOUNTING
558
BRACKET CABLE HARNESS MOUNTING
560
NUT SUPPORT TO SIDE MEMBER
567
BRACKET AT SIDE MEMBER,5 157364
570
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
570
SCREW END PIECE TO EXHAUST PIPE M 10X25
574
NUT BRACKET TO SIDE MEMBER
574
NUT , Replaced By: N910113014001
574
NUT , Replaced By: N910113010000
574
NUT STRAP TO BRACKET
578
HOSE FROM BRACKET AT SIDE MEMBER TO CLUTCH SLAVE CYLINDER 350 MM, 024,026,027,028,121,122 5 095725 065,131,132 5 104253
578
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
582
BRACKET HYDRAULIC HOSE TO TRANSMISSION,5 213167
584
ANGLE LINE MOUNTING
594
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
STUD BOLT BRACKET TO TRANSMISSION
999
BRACKET HYDRAULIC LINE TO SIDE MEMBER,OUTSIDE CENTRAL,5 178595
999
BRACKET HEATING PIPE
