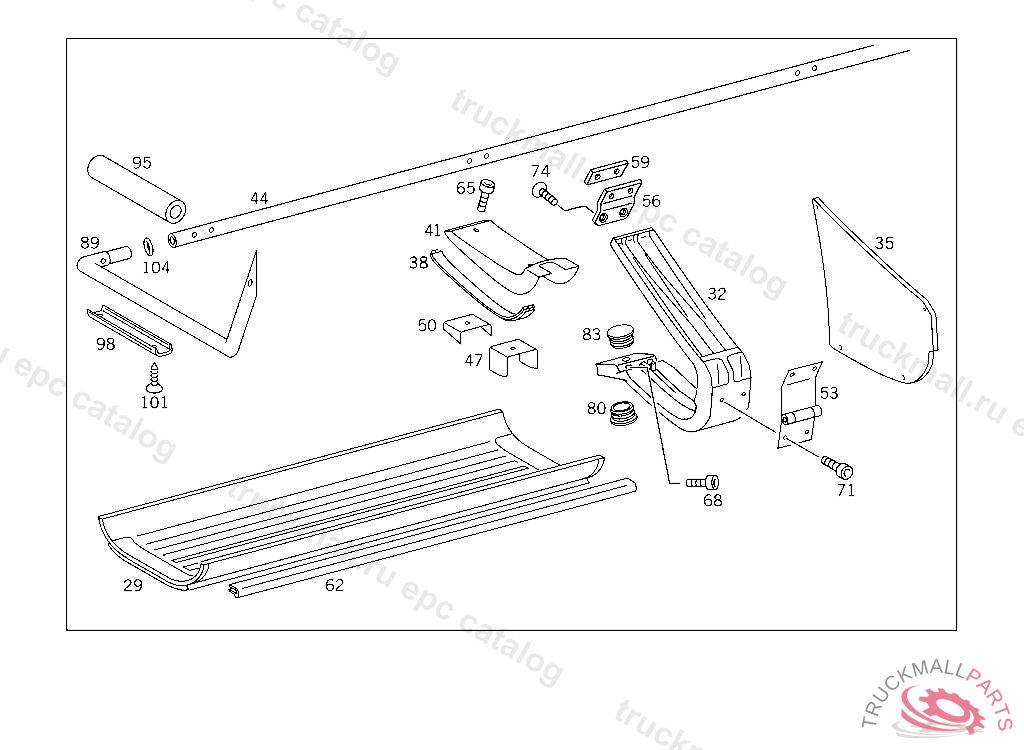

Поз.
Артикул
Описание
29
PARCEL RACK
29
PARCEL RACK
32
STAY PARCEL RACK, NO.7331I.......I.......I.......I.......INO.7358 I
32
STAY PARCEL RACK LEFT, NO.7331I.......I.......I.......I.......INO.7358 I
32
STAY PARCEL RACK ON THE RIGHT, NO.7331I.......I.......I.......I.......INO.7358 I
32
STAY PARCEL RACK LEFT, NO.7331I.......I.......I.......I.......INO.7358 I
32
STAY PARCEL RACK, NO.7331I.......I.......I.......I.......INO.7358 I
32
STAY PARCEL RACK ON THE RIGHT, NO.7331I.......I.......I.......I.......INO.7358 I
35
END PIECE PARCEL RACK, NO.7358I.......I.......I.......I.......I....... I
35
END PIECE PARCEL RACK, NO.7358I.......I.......I.......I.......I....... I
38
PAD PARCEL RACK, NO.7C01I.......I.......I.......I.......I....... I
41
COVERING , NO.7C01I.......I.......I.......I.......INO.7E23 I
41
COVERING LEFT, NO.7C01I.......I.......I.......I.......INO.7E23 I
41
COVERING RIGHT, NO.7C01I.......I.......I.......I.......INO.7E23 I
44
GRIP RAIL PARCEL RACK 2694 MM, TO BE ADAPTED DURING ASSEMBLY NO.7358I.......I.......I.......I.......I....... I
44
GRIP RAIL PARCEL RACK, TO BE ADAPTED DURING ASSEMBLY NO.7365I.......I.......I.......I.......I....... I
47
BRACKET RIGHT OUTSIDE
47
BRACKET OUTSIDE
47
BRACKET LEFT OUTSIDE
50
BRACKET INSIDE
50
BRACKET LEFT INSIDE
50
BRACKET RIGHT INSIDE
53
HINGE RANGE OF DELIVERY
53
HINGE RANGE OF DELIVERY
53
HINGE
53
HINGE
56
PLATE , NO.7E85I.......I.......I.......I II
56
PLATE PARCEL RACK, NO.7358I.......I.......I.......I.......I....... I
59
PLATE
62
LEDGE PARCEL RACK, TO BE ADAPTED DURING ASSEMBLY
62
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
65
SCREW
68
SCREW HIGH PRESSURE EXPANSION HOSE TO OIL PAN
71
SCREW BRACKET TO INTAKE MANIFOLD
74
SCREW
74
SCREW
80
PLUG BRACKET, NO.8316INO.7C52I.......I I II
83
PLUG PARCEL RACK
89
GRIP RAIL LEFT, NO.7331I.......I.......I.......I.......I....... I
89
GRIP RAIL LEFT, NO.7331I.......I.......I.......I.......I....... I
89
GRIP RAIL RIGHT, NO.7331I.......I.......I.......I.......I....... I
89
GRIP RAIL RIGHT, NO.7331I.......I.......I.......I.......I....... I
95
PAD AT PROTECTION BAR
98
METAL SECTION CHIN PROTECTION, ORDER BY THE METER
101
SHEET METAL SCREW3,9X19 MM
104
SEAL RING22X2,5 MM,TO A628 830 20 31/21 63
999
SWITCH PARCEL RACK
999
DOWEL. TREENAIL
