Поз.
Артикул
Описание

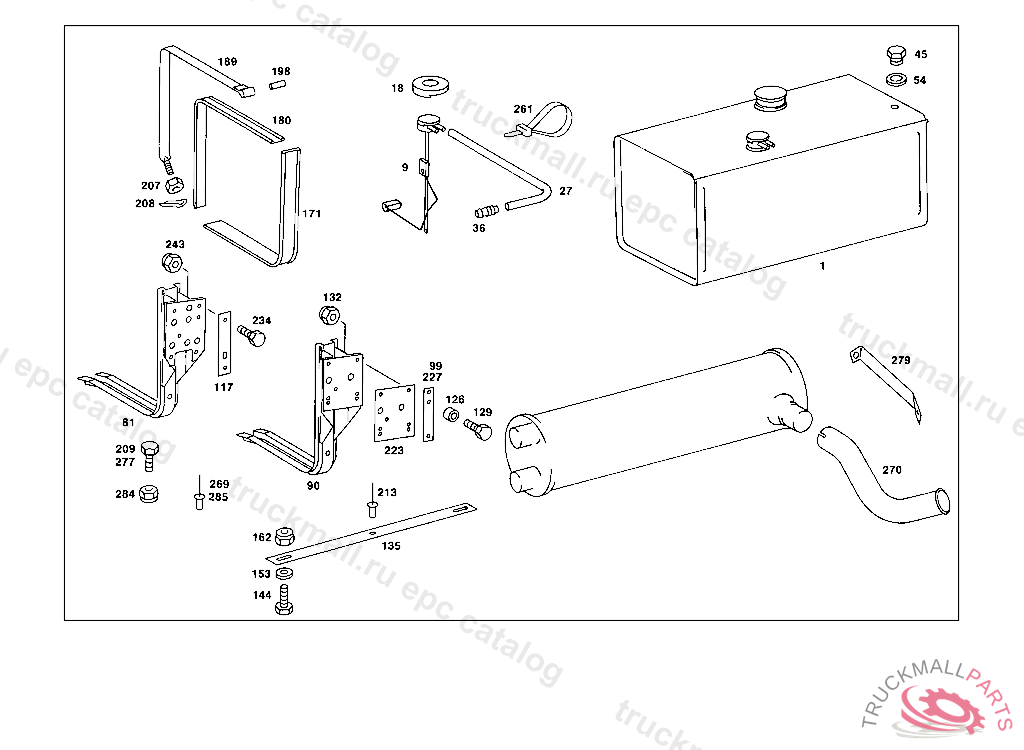

1
FUEL TANK400 L.,4 399369
1
FUEL TANK , Replaced By: A3874700701
9
SENDER UNIT , Replaced By: A0045423817, +001A3054760126, +002A3879900078
9
SENDER UNIT , EXHAUST STOCK OF OLD PART NUMBER FIRST UP TO CHASSIS 4 656938, Replaced By: A0055423917
9
SENDER UNIT , Replaced By: A0085428117
9
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
9
SENDER UNIT , Replaced By: A0045423817, +001A3054760126, +002A3879900078
9
SENDER UNIT ,4 316249, Replaced By: A0045423817, +001A3054760126, +002A3879900078
9
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
18
EXPANSION PLUG
27
HOSE LEAK LINE
27
HOSE LEAK LINE
36
CONNECTOR RIGHT,177-LITER
36
SLEEVE FEED
36
SLEEVE FEED
45
SCREW PLUG , Replaced By: N007604014110
45
SCREW PLUG FUEL TANK
54
SEAL RING FUEL LINE TO FEED PUMP
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK TO FRAME
81
CONSOLE REAR EXHAUST PIPE TO CONSOLE
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK,4 632323
81
SUPPORT FUEL TANK,5 356570
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK
81
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3954700742
81
SUPPORT , Replaced By: A6564701042
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK
81
SUPPORT , Replaced By: A6244700442
81
SUPPORT FUEL TANK,4 906415
81
CONSOLE REAR EXHAUST PIPE TO CONSOLE
81
SUPPORT FRONT TANK
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK TO FRAME, TO BE ADAPTED DURING ASSEMBLY
81
SUPPORT FUEL TANK, 10/50 4 375188 20/60 4 3749824 632322
81
SUPPORT FUEL TANK,4 632323
81
SUPPORT FUEL TANK, VERSION A VERSION B
81
SUPPORT REAR TANK
81
SUPPORT , Replaced By: A3894700242
81
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3954700342
81
SUPPORT FUEL TANK
81
SUPPORT FUEL TANK,5 150326
81
SUPPORT , Replaced By: A6174703742
81
SUPPORT FUEL TANK TO FRAME
81
SUPPORT FUEL TANK
90
SUPPORT REAR TANK,5 758497
90
SUPPORT FUEL TANK TO FRAME
90
SUPPORT FUEL TANK TO FRAME
90
SUPPORT FUEL TANK, VERSION A VERSION B
90
SUPPORT REAR TANK
90
SUPPORT REAR TANK
90
SUPPORT FUEL TANK,4 632323
90
SUPPORT REAR TANK
90
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3954700742
90
SUPPORT , Replaced By: A6564701042
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3874704242
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK TO FRAME
90
SUPPORT REAR TANK,5 758497
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT REAR TANK
90
SUPPORT FUEL TANK,4 632323
90
SUPPORT FUEL TANK,4 632323
90
SUPPORT FUEL TANK
90
SUPPORT , Replaced By: A3874704142
90
SUPPORT FUEL TANK TO FRAME
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK
90
SUPPORT , Replaced By: A3934700442
90
SUPPORT FRONT TANK
90
SUPPORT FUEL TANK, 10/50 4 375188 20/60 4 3749824 632322
90
SUPPORT FUEL TANK,4 632323
90
SUPPORT FUEL TANK
90
SUPPORT FUEL TANK,5 150326
90
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204702442
90
SUPPORT , Replaced By: A6234700542
90
SUPPORT FUEL TANK,5 150326
90
SUPPORT FUEL TANK
99
SHIM SUPPORT TO SIDE MEMBER
99
SHIM SUPPORT TO SIDE MEMBER
117
BASE SUPPORT TO SIDE MEMBER
117
BASE SUPPORT TO SIDE MEMBER
117
BASE SUPPORT TO SIDE MEMBER
126
SPACER TUBE BRACKET TO CONSOLE
126
SPACER TUBE BRACKET TO CONSOLE
126
SPACER WASHER , Replaced By: A3874750053
126
SPACER TUBE BRACKET TO CONSOLE
129
SCREW ROD TO TRANSFER CASE M 14X65
129
SCREW , Replaced By: N308676014013
129
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
129
SCREW STEERING SUPPORT TO FRAME M 14X55
129
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
129
SCREW , Replaced By: N308676012026
129
SCREW STEERING SUPPORT TO FRAME M 14X50
129
SCREW STEERING SUPPORT TO FRAME M 14X50
129
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
129
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
129
SCREW APPARATUS SUPPORT TO FRAME
129
SCREW , Replaced By: A9429901304
129
SCREW BRACKET TO SIDE MEMBER
132
NUT STEERING SUPPORT TO FRAME
132
NUT , Replaced By: N910113014000
135
REINFORCEMENT FUEL TANK CONSOLE
135
REINFORCEMENT
135
REINFORCEMENT FUEL TANK CONSOLE
135
REINFORCEMENT FUEL TANK SUPPORT
135
REINFORCEMENT
135
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
135
REINFORCEMENT FUEL TANK SUPPORT
135
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
135
REINFORCEMENT FUEL TANK CONSOLE
135
REINFORCEMENT FUEL TANK CONSOLE
135
REINFORCEMENT FUEL TANK SUPPORT
135
REINFORCEMENT
135
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
135
REINFORCEMENT , Replaced By: A3954750126
135
REINFORCEMENT FUEL TANK SUPPORT
135
REINFORCEMENT FUEL TANK SUPPORT
135
REINFORCEMENT FUEL TANK CONSOLE
144
SCREW CONSOLE TO SIDE MEMBER
144
SCREW CONSOLE TO SIDE MEMBER
153
WASHER
153
WASHER
162
NUT SUPPORT TO SIDE MEMBER
162
NUT SUPPORT TO SIDE MEMBER
171
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
180
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
189
STRAP FUEL TANK TO SUPPORT
189
STRAP FUEL TANK TO SUPPORT
198
PIN STRAP TO SUPPORT
207
NUT STRAP TO SUPPORT
208
COTTER PINROCKINGER TYP 260 G140
208
COTTER PIN STRAP TO SUPPORT
209
SCREW BRACKET TO CAB CONSOLE,K 035197
209
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
209
SCREW BRACKET TO SIDE MEMBER
209
SCREW STEERING SUPPORT TO FRAME M 14X50
213
RIVET FRAME TRUSS TO SIDE MEMBER
213
RIVET FRAME TRUSS TO SIDE MEMBER
223
SHIM CONSOLE TO RIGHT SIDE MEMBER
223
SHIM SUPPORT TO SIDE MEMBER
223
SHIM SUPPORT TO SIDE MEMBER
227
SHIM SUPPORT TO SIDE MEMBER
234
SCREW , Replaced By: N308676014012
234
SCREW SUPPORT TO SIDE MEMBER M 14X45
234
SCREW STEERING SUPPORT TO FRAME M 14X50
234
SCREW STEERING SUPPORT TO FRAME M 14X55
234
SCREW , Replaced By: A9429901304
234
SCREW APPARATUS SUPPORT TO FRAME
234
SCREW BRACKET TO CAB CONSOLE,K 035197
234
SCREW AT CROSS MEMBER
234
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
234
SCREW , Replaced By: N308676014013
234
SCREW ROD TO TRANSFER CASE M 14X65
234
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
234
SCREW SUPPORT TO SIDE MEMBER M 14X45
234
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
234
SCREW SUPPORT TO SIDE MEMBER M 14X45
234
SCREW STEERING SUPPORT TO FRAME M 14X50
234
SCREW STEERING SUPPORT TO FRAME M 14X55
234
SCREW ROD TO TRANSFER CASE M 14X65
234
SCREW GUSSET PLATE TO CROSS MEMBER
243
NUT , Replaced By: N910113014000
243
NUT STEERING SUPPORT TO FRAME
243
NUT , Replaced By: N910113014001
243
NUT BRACKET TO SIDE MEMBER
243
NUT STEERING SUPPORT TO FRAME
261
LOOM TIE LINE MOUNTING
261
LOOM TIE , Replaced By: A0019978490
269
RIVET FRAME TRUSS TO SIDE MEMBER
269
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
270
REAR EXHAUST PIPE
277
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
279
BRACKET REAR EXHAUST PIPE
284
NUT , Replaced By: N910113014001
284
NUT BRACKET TO SIDE MEMBER
285
RIVET12X20 MM, TO BE ADAPTED DURING ASSEMBLY
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
SUPPORT FUEL TANK
999
STRAP FUEL TANK TO CONSOLE,5 149420
999
SUPPORT FUEL TANK
999
SUPPORT FUEL TANK TO FRAME
