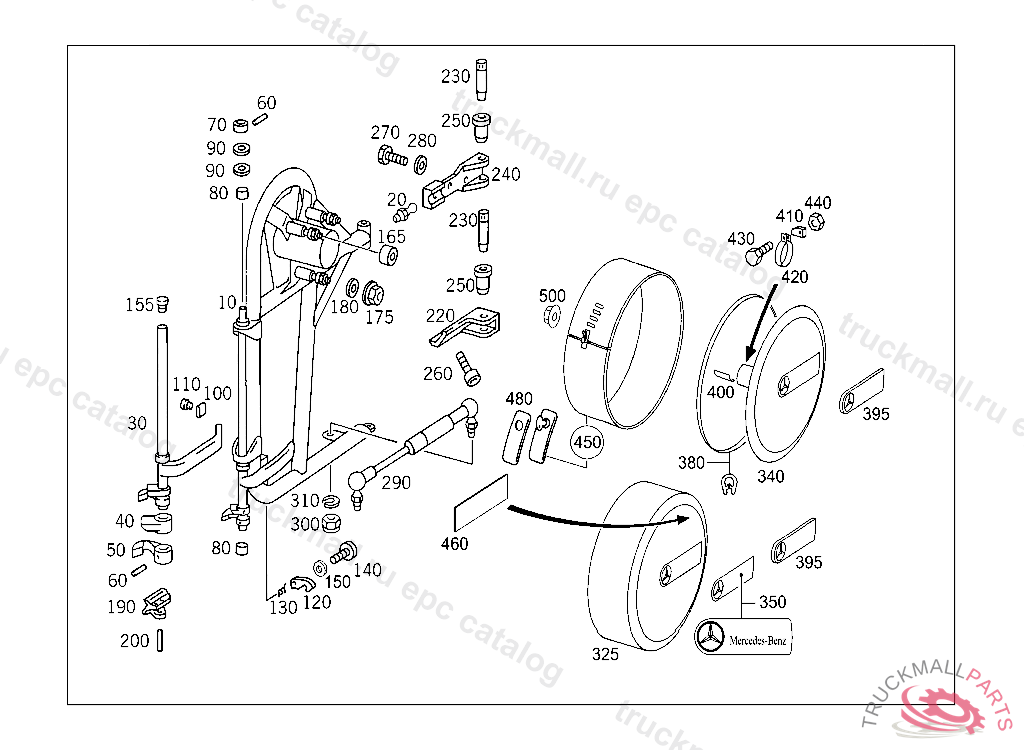

Поз.
Артикул
Описание
10
BRACKET
20
NIPPLE SPARE WHEEL CARRIER
30
BEARING SPARE WHEEL CARRIER
40
BRACKET SPARE WHEEL CARRIER
50
HOOK SPARE WHEEL CARRIER
60
GROOVED PIN
70
PIPE SPARE WHEEL CARRIER
80
BUSHING SPARE WHEEL CARRIER
90
WASHER SPARE WHEEL CARRIER D22,2
90
WASHER
100
HANDLE SPARE WHEEL CARRIER
110
RIVET
120
HOOK SPARE WHEEL CARRIER
130
SPRING
140
BOLT
150
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
150
WASHER COMPRESSED AIR LINE TO BRACKET
155
STOP PLUG SPARE WHEEL CARRIER
165
GROMMET CAB ROOF
175
NUT SPARE WHEEL TO SPARE WHEEL CARRIER
180
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
190
CATCH
190
CATCH SPARE WHEEL CARRIER
190
CATCH SPARE WHEEL CARRIER
200
CYLINDER PIN
220
BEARING BOTTOM, 7167QFT463A0505 DEEP GREY
230
HINGE PIN BOTTOM
230
HINGE PIN BOTTOM
240
BEARING SPARE WHEEL CARRIER AT REAR END DOOR, TOP
250
BUSHING BOTTOM AND TOP
260
BOLT SPARE WHEEL CARRIER, X 18350620091217
270
SCREW LOCK TO BUMPER
270
SCREW EXHAUST PIPE SUSPENSION TO TRANSMISSION
280
WASHER PUMP TO CONSOLE
290
SPRING SPARE WHEEL CARRIER, 20131028
300
HEXAGON NUT. NUT SPARE WHEEL CARRIER TO REAR END DOOR
300
NUT SPARE WHEEL CARRIER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N910113008000
310
LOCK WASHER BRAKE LINE TO REAR AXLE, NOT USED
325
COVER SPARE WHEEL
340
COVER , TO BE PAINTED PRIOR TO INSTALLATION
340
COVER , TO BE PAINTED PRIOR TO INSTALLATION
350
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
350
BADGE EMBLEM: MERCEDES-BENZ
380
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
395
PLATE , X 18350620091217
400
PAD SPARE WHEEL
400
PAD960 MM, ORDER BY THE METER
410
STOP
420
CLAMP60.5 MM,4 613839
430
SCREW SUPPORT TO FENDER
440
WASHER
440
NUT
450
TS COVER PARTS KIT
450
COVER PARTS KIT
460
INSULATION LEFT REAR SIDE DOOR
480
U-SHAPED STRIKER LOCKING HOOK TO A 463 890 72 08, 73 08, X 17189820070705, Replaced By: A4638900589, +001A4638900389
480
CATCH LOCKING HOOK TO A 463 890 13 08 / 48 08, X 17189820070705
500
NUT
