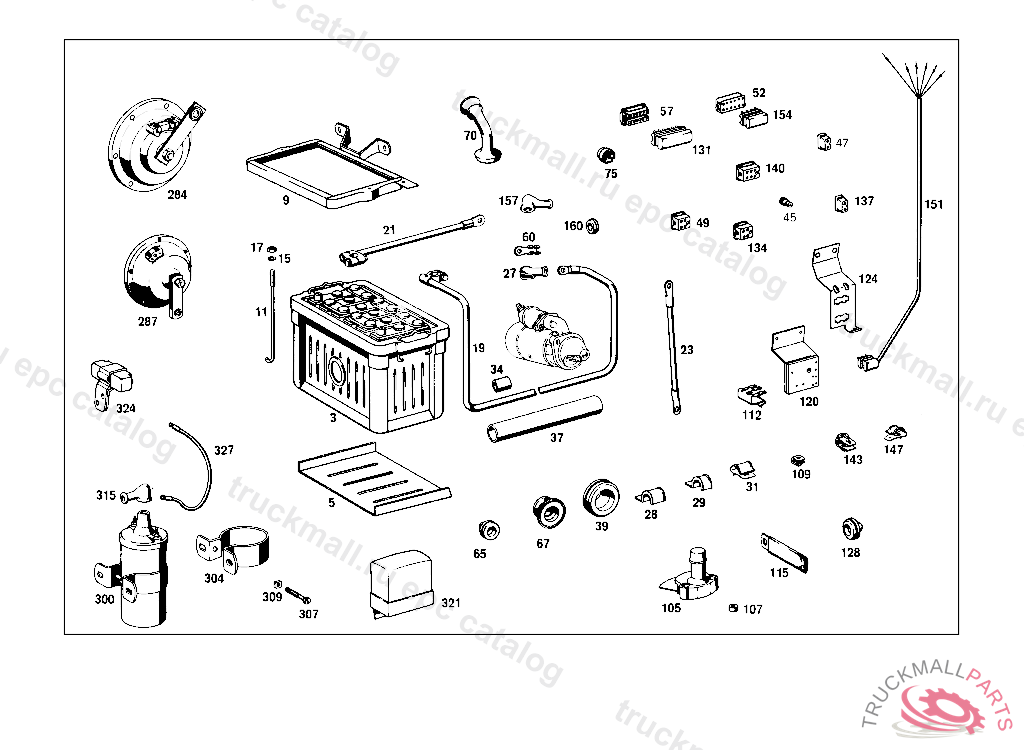

Поз.
Артикул
Описание
3
BATTERY
5
BOTTOM , 000,001,010 FROM CHASSIS 130558
9
MOUNTING FRAME , 000,001,010 FROM CHASSIS 130558
11
CLAMPING SCREW
15
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
17
NUT BATTERY MOUNTING
17
NUT CYLINDER TO BRACKET TO0002902112
19
POSITIVE CABLE , 000,001,010 FROM CHASSIS 064106 ALSO INSTALLED ON, SEE FOOTNOTE 25, 100,101,110 FROM CHASSIS 099642 ALSO INSTALLED ON, SEE FOO TNOTE 12, EXCEPT FOR 099892
21
NEG. CABLE
23
NEG. CABLE FROM SIDE MEMBER TO ENGINE
27
BOOT , Replaced By: A1165460135
27
BOOT
28
CLAMP TO MOUNT MAIN CABLE HARNESS
29
CLAMP MAIN CABLE HARNESS TO LEFT SIDE PART
34
HOSE20 MM
39
GROMMET LINE MOUNTING 10.0 MM
45
PLUG
45
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
45
PLUG
47
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
47
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
49
PLUG TRIPLE
49
PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
49
PLUG , Replaced By: A0075450028, +004A0035452626, +001A0095452128
52
PLUG , Replaced By: A0065458128, +008A0035452626, +001A0095452028
52
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
57
PLUG HEATER UNIT, 201.023,024 A219649 F091790 201.034 A201729 F108104
60
CABLE SHOE
65
GROMMETD5/26
67
GROMMET
70
PROTECTIVE TUBE
75
PLUG
105
SWITCH (FOOT DIMMER SWITCH) BOSCH, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
107
RUBBER RING FOOT DIMMER SWITCH TO TOEBOARD, 000,001,010 FROM CHASSIS 120054-130557, 100,101,110 FROM CHASSIS 016787-225647
109
CLIP WIRE CABLE TO AIR CLEANER
112
CLIP PLUG TO REAR PILLAR
115
BRACKET MAIN CABLE HARNESS TO BODY
120
BRACKET CABLE CONNECTOR, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
124
BRACKET AT INSTRUMENT PANEL, 000,001,010 FROM CHASSIS 130558, 100,101,110 FROM CHASSIS 225648
128
GROMMET BLINKER LAMP BRANCH-OFF
131
PLUG WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM,5 255829
134
PLUG TRIPLE
134
PLUG , Replaced By: A0075450028, +004A0035452626, +001A0095452128
134
PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
137
PLUG , Replaced By: A0085453728, +002A0035452626, +001A0085453828
137
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
140
PIN BUSHING HOUSING 4-POLE
140
PLUG , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0065458028, +006A0015453726, +001A0095453028
143
CLIP TAIL LAMP CABLE HARNESS, 000,001,010 FROM CHASSIS 078810, 100,101,110 FROM CHASSIS 123760
147
CLIP
151
CABLE HARNESS IN STEERING COLUMN JACKET TUBE, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
154
PLUG 7-POLE, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
157
BOOT HEATER PLUGS
160
GROMMET ,D 314239
284
HORN335 HZ
284
HORN335 HZ
304
BRACKET ,303364
307
SCREW PLUG SOCKET TO FRAME
309
NUT PUMP TO BRACKET
315
BOOT HEATER PLUGS
321
REGULATOR AND CUT-OUT , Replaced By: A0021547406
321
REGULATOR AND CUT-OUT ,4 477130
999
NUT TACHOGRAPH TO BRACKET
999
CABLE SHOE CABLE TO ALTERNATOR, NO LONGER AVAILABLE
999
NUT RETAINER FOOT DIMMER SWITCH TO TOEBOARD, 000,001,010 UP TO CHASSIS 012053, 100,101,110 UP TO CHASSIS 016786
999
SCREW BRACKET TO COVERING, FROM IDENT NO. K 074703ALSO INSTALLED ON K 062141
999
CABLE HARNESS
999
INSTRUMENT CLUSTER , Replaced By: A0045422706
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SWITCH,AUTOMATIC ALARM SWITCH
999
HORN , Replaced By: A0025420920, +001A0025421020, +001A0005421040
999
SPEEDOMETER , IN APPLICABLE
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW , Replaced By: N304017010002
999
INSTRUMENT CLUSTER , Replaced By: A0045422306
999
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
999
CABLE CONNECTOR ,760894
999
SHEET METAL SCREW , 100.012,014,016 001961 108.018 077635 114.011 006505 114.023 003980 115.010 076259
999
BATTERY12 V/100 AH
999
INSULATION , TO 000 545 04 12, 000 545 08 12 NO LONGER AVAILABLE
999
HORN , Replaced By: A0035422020, +001A0035421920
999
CONDENSER REGULATOR TERMINAL 61
999
SHEET METAL SCREW
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER T-FITTING TO BRACKET
999
CABLE HARNESS , 000,001 FROM CHASSIS 130558
999
CONDENSER , Replaced By: A0001569801
999
NUT RETAINER , Replaced By: A0019906791
999
WASHER COVERING TO CYCLONE AIR TRAP
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
CABLE HARNESS FROM STARTING MOTOR TO ADDITIONAL FUSE BOX, NOT USED
999
NUT RETAINER REGULATOR AND CUT-OUT, FOR VEHICLES HAVING LOW CAB 344 ON CAB 344
999
REGULATOR AND CUT-OUT 160-W GENERATOR
999
FUSEA16
999
CABLE SHOE DOOR CONTACT SWITCH
999
GROMMET ADDITIONAL CABLE HARNESS
999
NUT , Replaced By: N308675014002
999
INSTRUMENT CLUSTER , Replaced By: A0045422806
999
FLEXIBLE SHAFT THREAD:, 000,001 FROM CHASSIS 081911, 010 FROM CHASSIS 078871
999
PLUG 12-POLE, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
999
CABLE HARNESS FOR 4 SUPERTONE HORNS
999
FUSE , Replaced By: A0015457534
999
SWITCH (FOOT DIMMER SWITCH)
999
SPEEDOMETER , IN APPLICABLE
999
HORN , 123 A 217231 123 F 029181 126 A 103785, Replaced By: A0035425620, +001A1265401573
999
BOTTOM , FROM CHASSIS 064106-130557 ALSO INSTALLED ON, SEE FOOTNOTE 9
999
WASHER1.0 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
LOCK WASHER TAIL LAMP TO BRACKET
999
SHEET METAL SCREW BRACKET TO FLOOR PLATE
999
SCREW PIPE CLAMP
999
INSTRUMENT CLUSTER , Replaced By: A0045422506
999
NUT
999
FLEXIBLE SHAFT 16-MM THREAD 1980 MM, 000,001 FROM CHASSIS 081911, 100,101,110 FROM CHASSIS 134736
999
CLAMP BRAKE LINE TO FIRE WALL, 000 130186 003 066451 007 053318 083 002304 086 001762 093 001874 102,103 113215 105 135079 183 004049 190 005029
999
MOUNTING FRAME , 000,001,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 25
999
FUSE OVERLOAD PROTECTOR
999
SHEET METAL SCREW CABLE CONNECTOR TO BRACKET, 000,001,010 UP TO CHASSIS 130557, 100,101,110 UP TO CHASSIS 225647
999
CABLE HARNESS TAIL LAMP CABLE HARNESS, 000,001,010 FROM CHASSIS 155700, 100,101,110 FROM CHASSIS 274273, 002,003,011 FROM CHASSIS 013948
999
CLAMP , Replaced By: N072571001035
999
CABLE HARNESS , 000,001,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 25
999
SPACER TUBE BRACKET TO FIRE WALL
999
RELAY
999
SHEET METAL SCREW , Replaced By: N000000000459
999
SCREW , Replaced By: N304017008021
999
STUD BOLTM 10X30
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
999
SHEET METAL SCREW BRACKET TO COWL
999
GROUND STRAP FROM CYLINDER BLOCK TO SUPPRESSOR CONDENSER
999
INSTRUMENT CLUSTER , Replaced By: A0045422506
999
SCREW LINES UNDER FUEL TANK
999
CLIP CABLE HARNESS TO ROOF RAIL
999
INSTRUMENT CLUSTER , Replaced By: A0045422706
999
SHEET METAL SCREW ELECTRIC CABLE MOUNTING
999
HANDLE
999
WOODRUFF KEY POWER STEERING PUMP
999
SCREW CLAMP MOUNTING M 6X16
999
SEALING CORD MAIN CABLE HARNESS TO SIDE MEMBER, NO LONGER AVAILABLE
999
BOTTOM , FROM CHASSIS 011696-064105 EXCEPT FOR, SEE FOOTNOTE 9
999
CLIP MAIN CABLE HARNESS TO RIGHT WHEEL ARCH PANEL
999
PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
999
ELECTRIC CABLE , 000,001,010 UP TO CHASSIS 064105 EXCEPT FOR, SEE FOOTNOTE 25, 100,101,110 UP TO CHASSIS 099641 EXCEPT FOR, SEE FOOTNOTE 12, AL SO INSTALLED ON 099892
999
BRACKET
999
BATTERY12V/70AH, ON LP1313(352)FROM CHASSIS 601004 WITH THE EXCEPTION OF 601006,601009,601010,601017,601018,601024 ALSO INSTALLED ON 600917,600 992,600993,600996-999,601001,601002 CONTINUED ON 014
999
PLUG , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0065458028, +006A0015453726, +001A0095453028
999
WASHER , Replaced By: N009021004207
999
BRACKET FLEXIBLE SHAFT, 000,001,010 UP TO CHASSIS 034256, 100,101,110 UP TO CHASSIS 047902 NO LONGER AVAILABLE
999
SHEET METAL SCREW , Replaced By: N007981004339
999
HORN , Replaced By: A0025421020, +001A0025420920, +001A0005421040
999
REGULATOR AND CUT-OUT300 W/12 V,011743-012876 ON SPECIAL REQUEST, SHIELDED GENERATOR
999
SCREW TERMINAL NEG.POLE
999
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
999
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
999
CABLE HARNESS , FROM CHASSIS 064106-130557 ALSO INSTALLED ON, SEE FOOTNOTE 9
999
CLIP FLEXIBLE SHAFT TO WHEELHOUSE, 086 007397 093 010089 183 NOT FOR SWEDEN 028930 183 SWEDEN F 001867 ALSO INSTALLED ON 028960 190 030466 ALSO INSTALLED ON 030442 193 005964 280 NOT FOR SWITZERLAND 009681 ALSO INSTALLED ON 009608,009626-009679 280 SWITZERLAND 009208 283 NOT FOR SWITZERLAND 019905 ALSO INSTALLED ON 019489,019510,019514,019524,019528-019534,019541,019543,019548-019550,019554-019575,019587,019590, 019593,019603,019604,019613,019614,019625-019638,019646,019649-019712,019715-019814,019821,019830- 019894,019899,019901. 283 SWITZERLAND F 000423 ALSO INSTALLED ON 021312,F 000333
999
CABLE HARNESS FROM REGULATOR TO CUT-OFF RELAY, AMMETER
999
CONDENSER
999
GROMMET 34 MM
999
ELECTRIC CABLE , 000,001,010 FROM CHASSIS 064106-195297 ALSO INSTALLED ON, SEE FOOTNOTE 25,100,101,110 FROM CHASSIS 099642-369492 ALSO INSTALLE D ON, SEE FOOTNOTE 12, EXCEPT FOR 099892
999
HOSE , 000,001,004,010,016 FROM CHASSIS 195298, 002,003,005,011,017 FROM CHASSIS 036837, 100,101,104,110,116 FROM CHASSIS 369493
999
RELAY TOWN HORN
999
SPRING WASHER ALTERNATOR CONNECTION D+
999
CABLE HARNESS
999
SHEET METAL SCREW , Replaced By: N914031005208
999
INSTRUMENT CLUSTER , Replaced By: A0045423006
999
BOOT REGULATOR AND CUT-OUT, 000,001,010 FROM CHASSIS 130558-170491, 100,101,110 FROM CHASSIS 225648-309127
999
SHEET METAL SCREW BRACKET TO CAB FLOOR
999
SPACER TUBE ALTERNATOR TO SUPPORT
999
SPEEDOMETER , IN APPLICABLE
999
GROUND STRAP FROM CHOKE CABLE TO COWL,AND FROM TEMPERATURE GAUGE TO COWL,RESP.
999
SCREW
999
CABLE HARNESS SUCCESSIVE TONE SWITCH
999
CLAMPING SCREW , 000,001,010 FROM CHASSIS 011696-130557, 100,101,110 FROM CHASSIS 099642
999
CLAMP , Replaced By: A1239950222
999
GROMMET BACK-UP LIGHT
999
SHEET METAL SCREW COVERING TO REINFORCEMENT
999
AMMETER , UP TO CHASSIS: 108.016 049941 108.018,019 053705 109.016 UNTIL PRODUCTION STOP 109.018 004013 109.056 000865
999
CLIP
999
BRACKET , 000,001,004,010,016 UP TO CHASSIS 195297, 002,003,005,011,017 UP TO CHASSIS 036836, 100,101,104,110,116 UP TO CHASSIS 369492 NO LONGER AVAILABLE
999
CABLE HARNESS TAIL LAMP CABLE HARNESS, 000,001,010 FROM CHASSIS 130558-155699, 100,101,110 FROM CHASSIS 225648-274272, 002,003,011 UP TO CHASSIS 013947
999
SHEET METAL SCREW , Replaced By: N000000000453
999
SWITCH , Replaced By: A0005458511, +001A1108201192, +001A1108210359
999
FLEXIBLE SHAFT 12-MM THREAD 1580 MM, 000,001 UP TO CHASSIS 081910, 010 UP TO CHASSIS 080219, 100,101,110 UP TO CHASSIS 127048
999
SCREW , Replaced By: N304017006018
999
CABLE HARNESS , FROM CHASSIS 110.0 130558 110.1 225648
999
GROUND STRAP FROM ENGINE TO FRAME, 000,001,010 UP TO CHASSIS 009194 ALSO INSTALLED ON, SEE FOOTNOTE 27, 100,101,110 UP TO CHASSIS 012799 ALSO INSTALLED ON, SEE F OOTNOTE 28
999
SCREW ELECTRIC CABLE TO FUSE BOX
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SPEEDOMETER READING IN KILOMETRES,REAR AXLE RATIO 1:4,1, FOR 7,00-13 TIRES, 10/50,12/52 FROM CHASSIS 078871-130557, 20/60,22/62 FROM CHASSIS 081998-130557
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
CLAMP
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
FLEXIBLE SHAFT 16-MM THREAD 1250 MM, 000,001,010 FROM CHASSIS 130558, 100,101,110 FROM CHASSIS 225648
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW T-FITTING TO BRACKET
999
SLEEVE , 000,001,004,010,016 FROM CHASSIS 195298, 002,003,005,011,017 FROM CHASSIS 036837, 100,101,104,110,116 FROM CHASSIS 369493 NO LONGER AVAILABLE
999
INSTRUMENT CLUSTER , Replaced By: A0045422206
999
SCREW BRACKET MOUNTING
999
RETAINER ALTERNATOR TO SUPPORT, 000,001,010 FROM ENGINE 098502, 100,101,110 FROM ENGINE 169697
