Поз.
Артикул
Описание

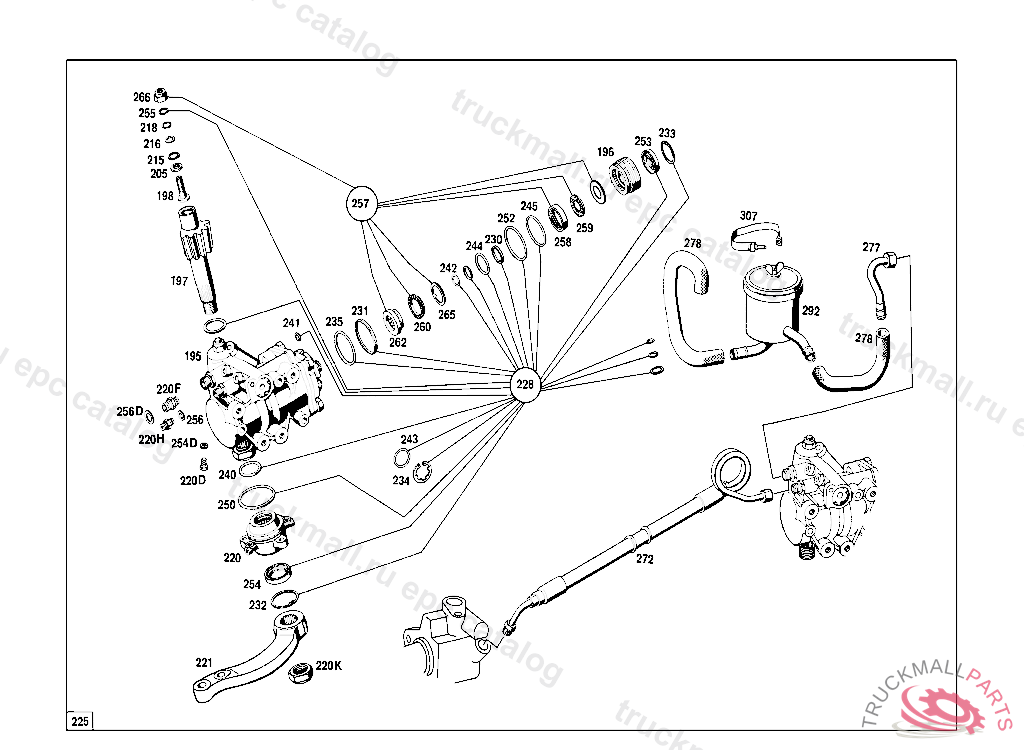

195
STEERING BOX ASSEMBLY , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
196
THREADED INSERT
197
STEERG. WORM SECTOR SHAFT , FROM CHASSIS: 023 009059 UP TO CHASSIS: 073 107866 FROM CHASSIS: SEE UNIT SPARE PARTS LIST 104
198
SCREW
205
THRUST WASHER2.85M
215
LOCK
216
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
218
LOCK RINGTO 000 553 37 01,000 553 39 01,
220
STEERING BOX COVER
230
SEAL RING
231
SEAL RING
232
LOCK TOP TO 387 460 14 09
233
LOCK
234
LOCK
235
SEAL RINGTO 388 476 71 69
235
SEAL RING , Replaced By: A0149976148
240
SEAL RING
240
SEAL RING
241
SEAL RING VALVE
242
SEAL RING , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
243
SEAL RING
244
SEAL RING
245
SEAL RING , 000 10/50,12/52 056283 20/60,22/62 057848 003 10/50,12/52 026979 20/60,22/62 027742 102,103 10/50,12/52 029862 20/60,22/62 041002 105 10/50,12/52 051237 20/60,22/62 052678
250
SEAL RING
252
SEAL RING
253
SEAL RING , Replaced By: A0199975147
253
SEAL RING , Replaced By: A0119976746
254
SEAL RING , Replaced By: A0199975047
254
SEAL RING , Replaced By: A0119976846
254
SEAL RING
256
SEAL RING LINE CONNECTION
258
NEEDLE BEARING
259
ROLLER BEARING
260
ROLLER BEARING
262
ANGULAR CONTACT BEARING
265
WASHER , FROM CHASSIS: 023 009059 UP TO CHASSIS: 073 107866 FROM CHASSIS: SEE UNIT SPARE PARTS LIST 104
266
NUT , Replaced By: A0009904050
266
NUT
278
HOSE80 MM, ORDER BY THE METER
999
CLAMP , Replaced By: N000000000667
999
SCREW FITTING
999
SCREW FITTING
999
COMBINATION BOLT CABLE TO FUSE BOX
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
NUT , Replaced By: N910113010002
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
HEXAGON NUT
999
CLAMP
999
SCREW BRACKET TO CROSS MEMBER M 10X40
999
NUT
999
NUT BATTERY MOUNTING
999
SCREW PUMP TO BRACKET
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING SCREW PLUG
999
SCREW , Replaced By: N308676010023
999
SCREW SHOCK ABSORBER TO TOP BRACKET
999
SCREW , Replaced By: N000961010031
999
NUT , Replaced By: N304032010002
999
NUT CYLINDER TO BRACKET TO0002902112
999
SCREW COVER PLATE TO BRACKET
999
SCREW
999
WASHER BRACKET TO HEAT SHIELD
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
SCREW STEERING TO FRAME
999
WASHER
999
SCREW , Replaced By: A2019900801
999
TUMBLER WITHOUT LOCK UNDEFINED, FOR MASTER KEY,SEE GROUP 72 FROM CHASSIS: 115.000,002,010 099406 115.015 123862 115.100,102,103,110,112 259276 115.115 130163 115.005,017,105,107,108,117,119 000001 UP TO CHASSIS: 000,002,010UNTIL PRODUCTION STOP 005,017 016519 015 223255 UP TO CHASSIS: 100,102,103,112UNTIL PRODUCTION STOP 110 421345 105,107,108,117 032884 115 228860 119 034132
999
SCREW PLUG
999
CLAMP
999
SCREW
999
SCREW
999
PAD IVORY-COLORED
999
STEERING WHEEL
999
STEERING WHEEL , Replaced By: A1164600003
999
PROTECTIVE PLATE
999
SPACER WASHER BRAKE PEDAL TO BEARING BRACKET
999
SPACER WASHER
999
STEERING LOCK , FROM CHASSIS: 115.000,002,010 040310 115.015 039515 UP TO CHASSIS: 000,002,010UNTIL PRODUCTION STOP 005,017 016519 015 223255 IN THE CASE OF LOCK DEFINED,USE 116 462 41 30 IN PLACE OF 000 462 93 30, Replaced By: A1154623730, +001A1234620523, +001A0004629330
999
WASHER AS REQUIRED 3.3 MM
999
WASHER AS REQUIRED 3.2 MM
999
WASHER AS REQUIRED 3.1 MM
999
STEERING SHAFT
999
STEER. COLUMN JACKET TUBE
999
DRAG LINK , Replaced By: A1144600305
999
PROTECTIVE SLEEVE , 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.10,10/50,12/52,100,101,104,110,116 FROM CHASSIS 358854 ALSO INSTALLED ON,SEE FOOTN.11,AND FOOTN.9
999
STEERING BOX COVER , FROM CHASSIS: 115.000,002,010 10/50,12/52 062735 115.015 10/50,12/52 068828 115.100,102,103,110,112 10/50,12/52 157492 115.115 10/50,12/52 074782 FROM CHASSIS: 115.000,002,010 20/60,22/62 063843 115.015 20/60,22/62 070112 115.100,102,103,110,112 20/60,22/62 160382 115.115 20/60,22/62 076211 UP TO CHASSIS: 115.002,002,010 107099 115.015 136924 115.100,102,103,110,112 283284 115.115 143831, Replaced By: A1154600814, +001A0019908651
999
STEERING BOX COVER , UP TO CHASSIS: 115.000,002,010 10/50,12/52 062734 115.015 10/50,12/52 068827 115.100,102,103,110,112 10/50,12/52 157491 115.115 10/50,12/52 074781 UP TO CHASSIS: 115.000,002,010 20/60,22/62 063842 115.015 20/60,22/62 070111 115.100,102,103,110,112 20/60,22/62 160381 115.115 20/60,22/62 076210, Replaced By: A1154600514, +004A0049900701, +004N000433008403
999
SCREW
999
DRAG LINK , Replaced By: A1144600305
999
THRUST WASHER 2,0 MM, TO BE ADAPTED DURING ASSEMBLY
999
THRUST WASHER 1,9 MM, AS REQUIRED
999
THRUST WASHER 1,8 MM, AS REQUIRED
999
THRUST WASHER 1,7 MM, AS REQUIRED
999
THRUST WASHER 1,6 MM, AS REQUIRED
999
THRUST WASHER 1,3 MM, AS REQUIRED
999
THRUST WASHER 1,2 MM, AS REQUIRED
999
GASKET
999
SEAL RING
999
DUST CAP
999
SPACER WASHER , Replaced By: A1244630077
999
WASHER
999
SEAL RING , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
999
THRUST WASHER2.80 MM, Replaced By: A1074620262
999
THRUST WASHER2.75 MM
999
THRUST WASHER2.70 MM
999
THRUST WASHER2.65 MM
999
THRUST WASHER3.10 MM
999
THRUST WASHER3.05 MM
999
THRUST WASHER3.00 MM
999
THRUST WASHER2.95 MM
999
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
999
SEAL RING
999
COVERTO 009 545 56 28
999
SEAL RING STEERING WORM SECTOR SHAFT TO COVER 10X3 MM
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SWITCH,AUTOMATIC , FROM CHASSIS: 005415 ALSO INSTALLED ON: 005408,005410,005412,005413.
999
SEAL RING STEERING NUT BEARING 75X3 MM
999
SCREW , UP TO CHASSIS: 115.000,002,010 10/50,12/52 062734 115.015 10/50,12/52 068827 115.100,102,103,110,112 10/50,12/52 157491 115.115 10/50,12/52 074781 UP TO CHASSIS: 115.000,002,010 20/60,22/62 063842 115.015 20/60,22/62 070111 115.100,102,103,110,112 20/60,22/62 160381 115.115 20/60,22/62 076210
999
SWITCH,AUTOMATIC MANUAL DIMMER CONTROL
999
SEAL RING
999
SEAL RING
999
SEAL RING
999
SEAL RING , Replaced By: A0139973648
999
SEAL RING
999
WASHER
999
NUT DRAG LINK END M 24X1.5
999
SEAL RING STEERING NUT BEARING 12.4X1.78 MM
999
ROLLER BEARING
999
ROLLER BEARING
999
CONTACT RING , UP TO CHASSIS 019587 STEERING WHEEL: BLACK UP TO CHASSIS 019541 STEERING WHEEL: WHITE
999
TUMBLER , 077647
999
COVER , 077647
999
TUMBLER WITHOUT LOCK UNDEFINED, 000,001,004,010,016 FROM CHASSIS 190318 ALSO INSTALLED ON,SEE FOOTN.10,10/50,12/52,100,101,104,110,116 FROM CHASSIS 358854 ALSO INSTALLED ON,SEE FOOTN.11,AND FOOTN.9
999
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP., 000,003,007,102,103,105,200 10/50,12/52 A 063106 20/60,22/62 A 072608 083,086,093,183,190,193,280,283 F 007678
