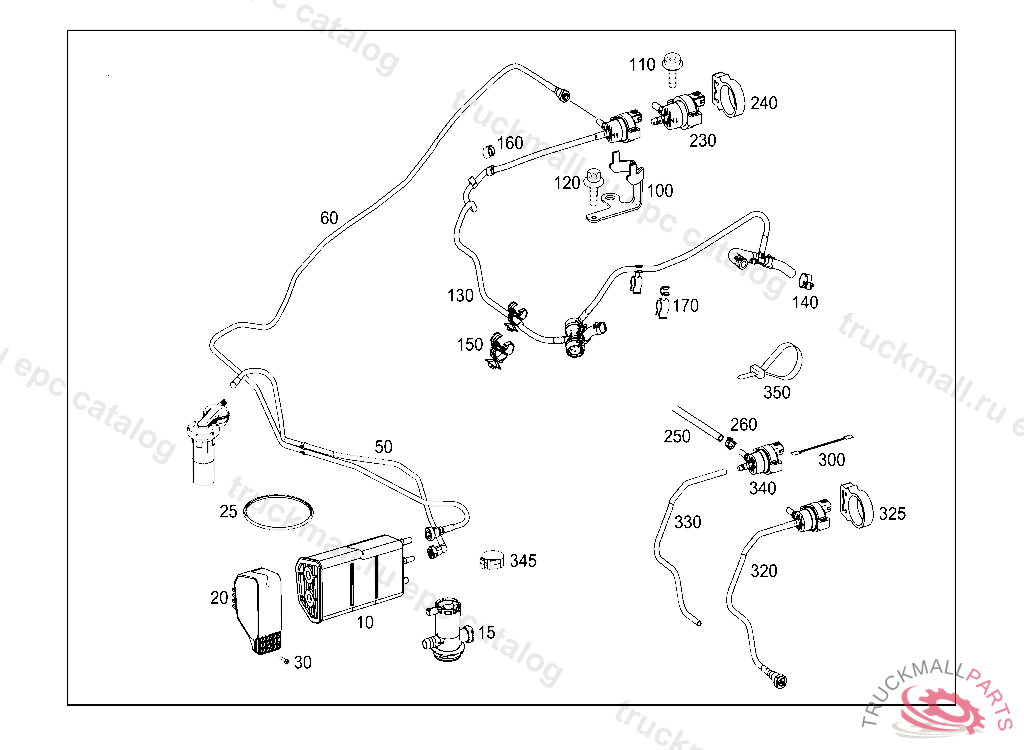

FORTWO CABRIO - 451.432 - 47 FUEL SYSTEM

  • Поз.
    Артикул
    Описание
  • 10
    ACTIVATED CHARCOAL FILTER
  • 10
    ACTIVATED CHARCOAL FILTER
  • 15
    SHUT-OFF VALVE
  • 20
    ACTIVATED CHARCOAL FILTER
  • 25
    O-RING
  • 25
    O-RING FUEL PUMP
  • 30
    TAPPING SCREW COVER AND BRACKET TO CAB CORNER PILLAR
  • 50
    LINE BREATHER LINE TO ACTIVATED CHARCOAL FILTER
  • 60
    LINE FROM REGENERATION LINE TO ENGINE
  • 60
    LINE FROM REGENERATION LINE TO ENGINE
  • 100
    BRACKET REGENERATION VALVE, K 44579020100901
  • 100
    BRACKET REGENERATION VALVE, K 44579020090901
  • 100
    BRACKET REGENERATION VALVE, K 44579120090901
  • 100
    BRACKET REGENERATION VALVE, K 44579120101123
  • 110
    HEXALOBULAR BOLT BUMPER COVERING M6X20
  • 120
    HEXALOBULAR BOLT. SCREW POSITION SENDER UNIT TO CYLINDER CRANKCASE M 6X16
  • 130
    LINE WITH PURGE VALVE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 44579020101117, Replaced By: A4514700393
  • 130
    PURGE VALVE REGENERATION LINE
  • 140
    CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
  • 150
    LINE HOLDER REGENERATION LINE
  • 160
    CLAMP PLASTIC LINE ON CONTROL LINE
  • 170
    CLAMP FLEXIBLE SHAFT TO GROUND CABLE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
  • 230
    BLEEDER VALVE REGENERATION LINE, NO LONGER AVAILABLE, ORDER NEXT HIGHER ASSEMBLY
  • 240
    BRACKET REGENERATION VALVE
  • 250
    FUEL HOSE REGENERATION VALVE
  • 260
    HOSE CLAMP FASTENING COOLANT HOSE
  • 300
    WIRING HARNESS REGENERATION VALVE
  • 320
    PURGE VALVE REGENERATION LINE, K 48242620100901
  • 320
    REGENERATION VALVE REGENERATION LINE, K 48242520100901
  • 325
    BRACKET REGENERATION VALVE
  • 330
    PURGE LINE REGENERATION, K 48242520100901
  • 340
    BLEEDER VALVE REGENERATION LINE, NO LONGER AVAILABLE, ORDER NEXT HIGHER ASSEMBLY
  • 345
    HOSE CLAMP. LOOM TIE BREATHER LINE TO FUEL TANK, FROM MODEL YEAR '98
  • 350
    CABLE TIE310X5MM
