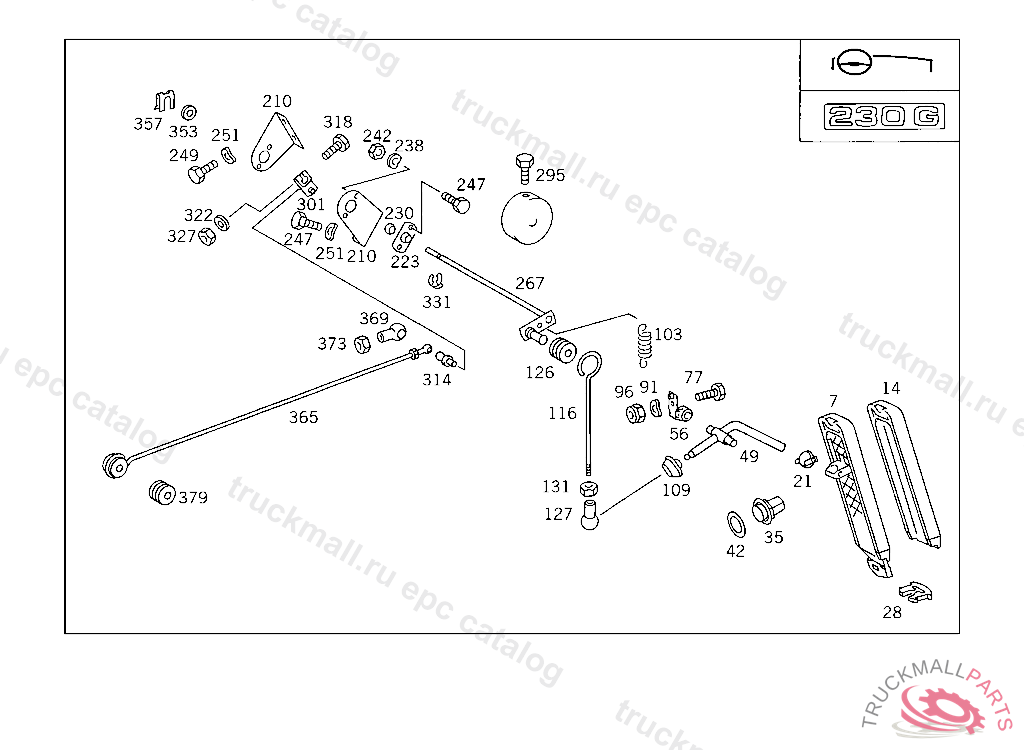

280 GE - 460.223 - 30 CONTROL

  • Поз.
    Артикул
    Описание
  • 7
    ACCELERATOR PEDAL
  • 14
    PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
  • 21
    JOINT ,B 859430
  • 28
    CLIP
  • 35
    STOP
  • 42
    SEAL RING KICK-DOWN SWITCH
  • 49
    LEVER
  • 56
    BEARING
  • 77
    SCREW COVER PLATE TO BRACKET
  • 91
    SPRING WASHER LICENSE PLATE TO BRACKET
  • 96
    NUT BALL PIVOT TO LEVER
  • 103
    SPRING LEVER,823342
  • 109
    BOOT ACCELERATOR PEDAL TO FIRE WALL, 026 079273 ALSO INSTALLED ON 078726,078728,078730,078733,078735,078739,078741-078745,078749-078754,078756-078758,078760-078770, 078773,078774,078776,078777,078779,078784,078787-078797,078799-078801,078804,078806,078808-078811, 078813-078823,078825-078834,078836-078852,078854,078855,078857-078860,078969-078975,078978-079018, 079020-079069,079072,079074-079093,079095,079097,079098,079100-079105,079107-079115,079117-079119, 079121-079129,079131-079144,079147-079166,079168-079208,079210-079246,079249-079271. 028 079247 ALSO INSTALLED ON 079167
  • 109
    BOOT , Replaced By: A1233010497
  • 127
    BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
  • 127
    CONICAL CUPTO 102 070 09 75
  • 131
    NUT TACHOGRAPH TO BRACKET
  • 314
    BALL PIVOT
