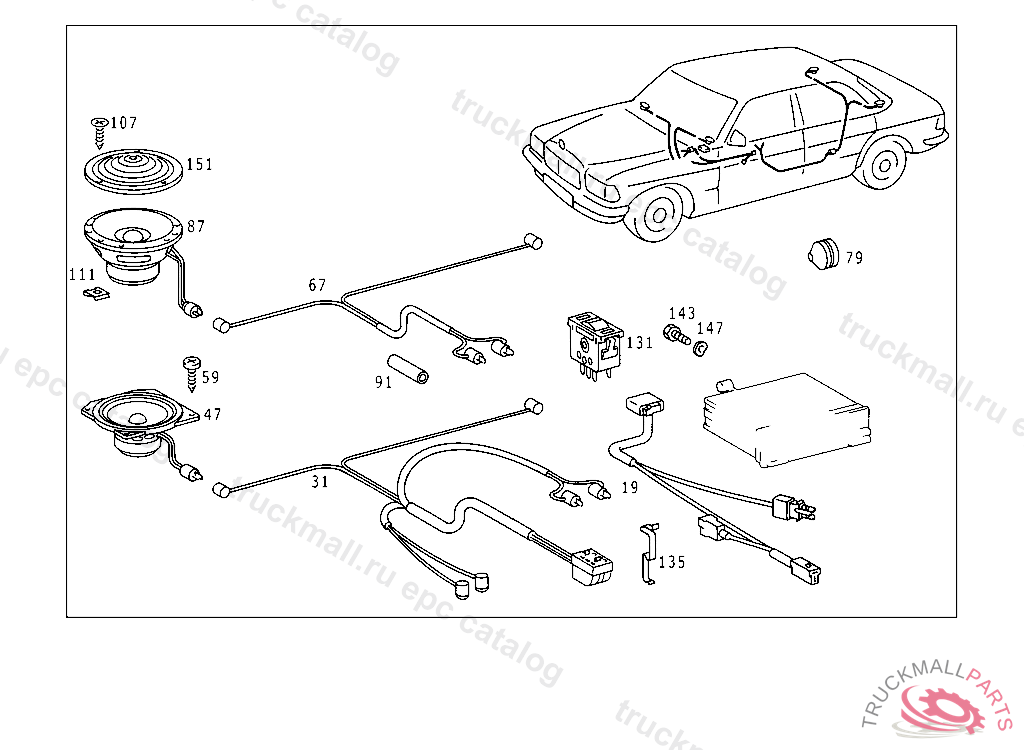

Поз.
Артикул
Описание
19
ELECTRIC CABLE RADIO CURRENT SUPPLY
31
ELECTRIC CABLE FROM RADIO SET TO FADER CONTROL
47
LOUDSPEAKER FRONT
59
SHEET METAL SCREW , Replaced By: N000000000453
59
SHEET METAL SCREW MODULE TO HOUSING
67
ELECTRIC CABLE REAR END LOUDSPEAKER CONNECTION
79
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
87
LOUDSPEAKER
91
HOSE SOUND GUIDE
107
SHEET METAL SCREW LOUDSPEAKER WITH COVERING TO HAT TRAY
111
LOCK LOUDSPEAKER WITH COVERING TO HAT TRAY
131
SWITCH. FADER CONTROL
135
LOCK RADIO SET FIXTURE IN HOUSING, FROM CHASSIS 107.022 009534 107.025 001705 107.026 002281 107.042 009860 107.045 003233 107.046 000489
143
SCREW COVER PLATE TO COVER PLATE M 6 X 10
147
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
151
COVERING , AVAILABLE ONLY IN BLACK,NO.9051
