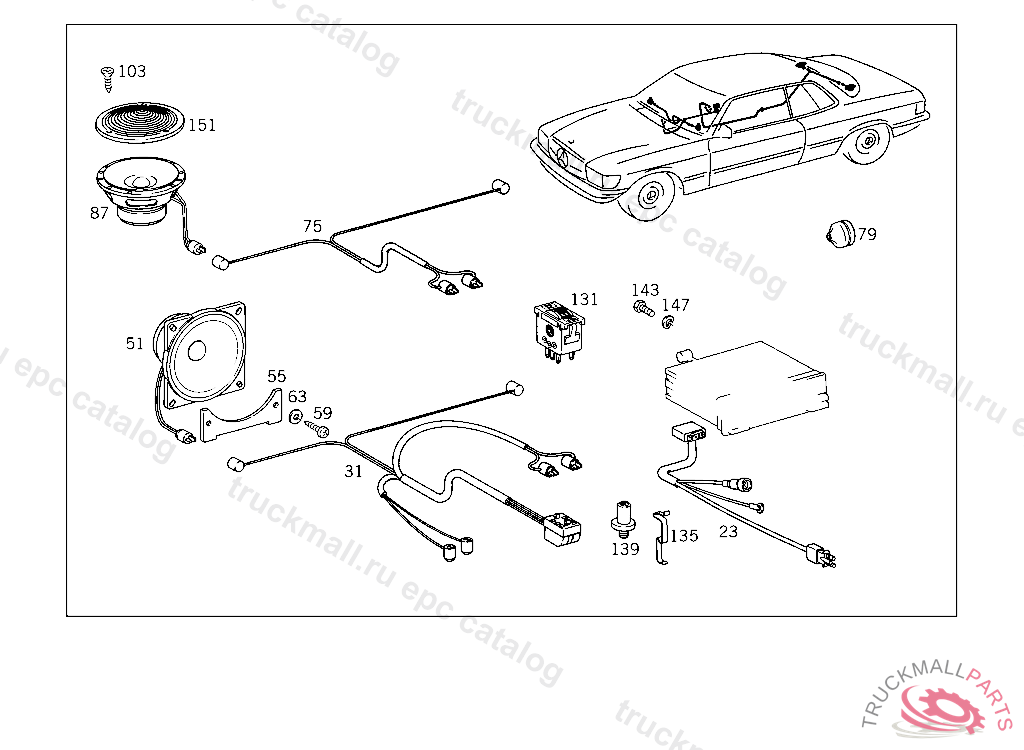

300 TD - 123.190 - 82 ELECTRICAL SYSTEM

  • Поз.
    Артикул
    Описание
  • 23
    ELECTRIC CABLE RADIO CURRENT SUPPLY, UP TO END OF MODEL YEAR'85 FROM CHASSIS,SEE STANDARD MICROFICHE
  • 31
    ELECTRIC CABLE FROM RADIO SET TO FADER CONTROL
  • 51
    LOUDSPEAKER
  • 55
    COVERING FRONT LOUDSPEAKER
  • 59
    SHEET METAL SCREW , Replaced By: N000000000453
  • 59
    SHEET METAL SCREW MODULE TO HOUSING
  • 63
    WASHER BRACKET TO WINDOW SILL
  • 75
    ELECTRIC CABLE BETWEEN FADER CONTROL AND REAR END LOUDSPEAKER
  • 79
    GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
  • 87
    LOUDSPEAKER
  • 103
    SHEET METAL SCREW , Replaced By: N007982003261
  • 103
    SHEET METAL SCREW LOUDSPEAKER WITH COVERING TO HAT TRAY
  • 131
    SWITCH. FADER CONTROL
  • 135
    LOCK RADIO SET FIXTURE IN HOUSING, FROM CHASSIS 107.022 009534 107.025 001705 107.026 002281 107.042 009860 107.045 003233 107.046 000489
  • 139
    STAY RADIO SET FIXTURE IN HOUSING
  • 143
    SCREW COVER PLATE TO COVER PLATE M 6 X 10
  • 147
    LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
  • 151
    COVERING , AVAILABLE ONLY IN BLACK,NO.9051
