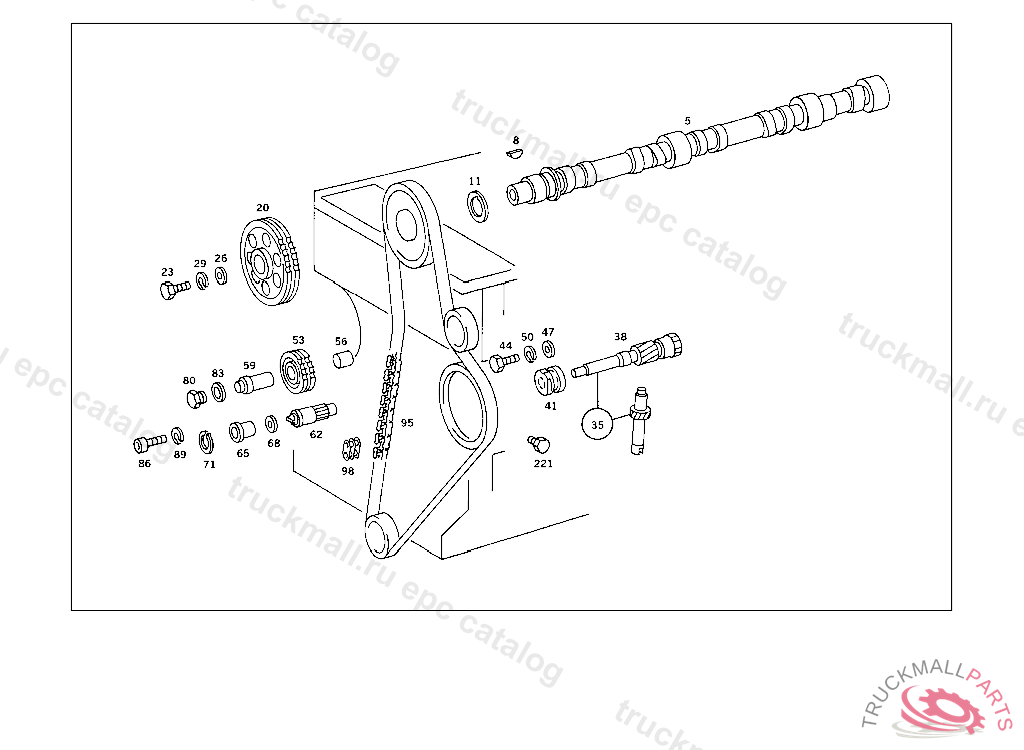

Поз.
Артикул
Описание
5
CAMSHAFT
8
WOODRUFF KEY SHIFTED BY 5 DEGS.,AS REQUIRED,REPAIR SIZE
8
WOODRUFF KEY SHIFTED BY 4 DEGS.,AS REQUIRED,REPAIR SIZE
8
WOODRUFF KEY POWER STEERING PUMP
8
WOODRUFF KEY SHIFTED BY 2 DEGS.,AS REQUIRED,REPAIR SIZE
8
WOODRUFF KEY SHIFTED BY 3 DEGS.,AS REQUIRED, REPAIR SIZE
11
SHIM, 2.75 MM THICK. SPACER WASHER 2.75 MM
20
CAMSHAFT GEAR
23
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
26
WASHER
29
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
35
INTERMEDIATE SHAFT SET, 940 10/50,20/60 311920 940 12/52,22/62 011778
41
BEARING INTERMEDIATE GEAR SHAFT, FRONT, FOR CHASSIS 123.105,132 FROM ENGINE 912 10/50 053240 912 12/52 051015 FOR CHASSIS 123.130,190 FROM ENGINE 912 10/50,20/60 071609 912 12/52,22/62 066309919 000097
44
SCREW , Replaced By: N304017006018
44
SCREW COVER PLATE TO COVER PLATE M 6 X 12
47
WASHER
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
53
SPROCKET
56
BUSHING
59
PIVOT PIN
80
SCREW PLUG
83
SEAL RING VALVE TO VALVE,K 025179
95
ROLLER CHAIN
95
ROLLER CHAIN , Replaced By: A0039976294, +001A0009972898
95
ROLLER CHAIN , Replaced By: A0039975894, +001A0009972698
95
ROLLER CHAIN , Replaced By: A0039973494
95
ROLLER CHAIN , Replaced By: A0039972594
98
CHAIN LOCK LINK , Replaced By: A0009972898
98
CHAIN LOCK LINK , Replaced By: A0009972698
98
CHAIN LOCK LINK , Replaced By: A0009972398
98
CHAIN LOCK LINK
221
SCREW , WHEN USING 615 052 01 71 SCREW, ELIMINATE 007603 012120 SEAL RING
