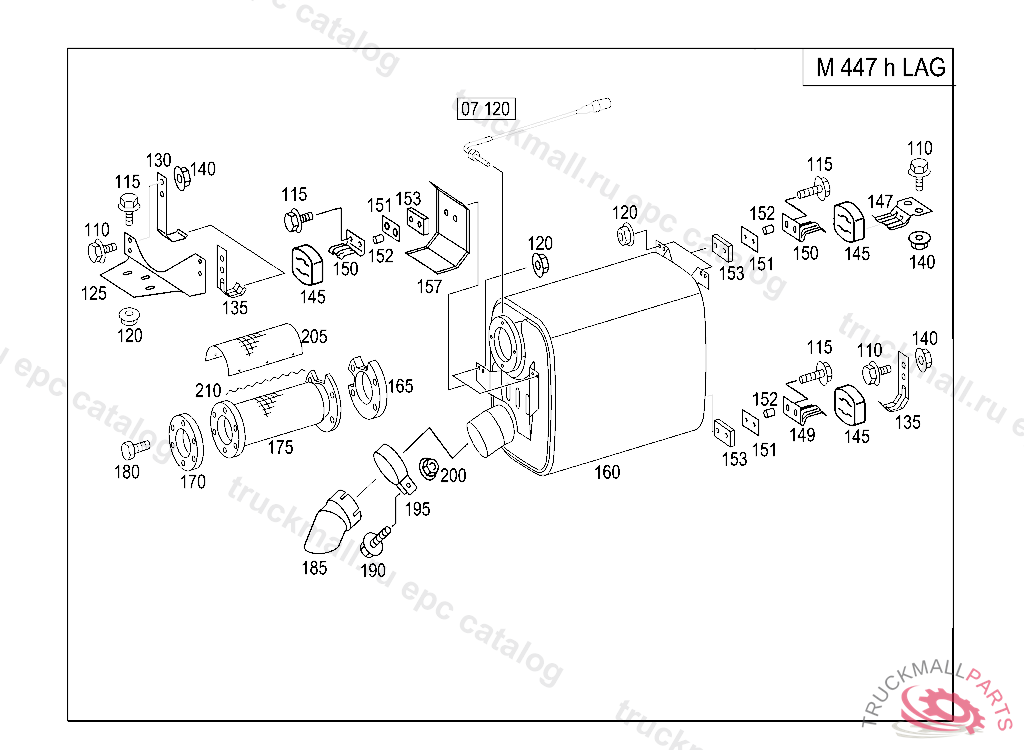

Поз.
Артикул
Описание
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
115
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
115
SCREW , Replaced By: N910143008002
120
NUT HORN TO BRACKET M8
125
CONSOLE ON ENGINE SUPPORT
130
BRACKET LEFT EXHAUST MUFFLER TO CONSOLE
135
BRACKET EXHAUST MUFFLER SUSPENSION
140
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
145
DAMPING PAD EXHAUST MUFFLER SUSPENSION
147
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
149
CONSOLE FRONT EXHAUST MUFFLER
149
CONSOLE , Replaced By: A6284910415
150
CONSOLE EXHAUST MUFFLER
151
PLATE CONSOLE TO EXHAUST MUFFLER
152
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
153
INSULATION CONSOLE TO EXHAUST MUFFLER
153
INSULATION CONSOLE TO EXHAUST MUFFLER
157
PROTECTIVE PLATE REAR EXHAUST MUFFLER
160
160
CATALYST
165
FLANGE GASKET
170
FLANGE GASKET
175
FLEXIBLE METAL TUBE EXHAUST GAS TURBOCHARGER CONNECTION
180
SCREWM10X25MM
185
185
REAR EXHAUST PIPE AT MUFFLER
185
EXHAUST PIPE AT MUFFLER
185
REAR EXHAUST PIPE AT MUFFLER
190
SCREW , Replaced By: N000933010347
190
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
195
CLAMP REAR EXHAUST PIPE TO MUFFLER,086438
195
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
200
NUT CONNECTOR TO EXHAUST MANIFOLD,086438
200
NUT CONNECTOR TO EXHAUST MANIFOLD,086438
200
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
205
INSULATION
210
WIRE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
