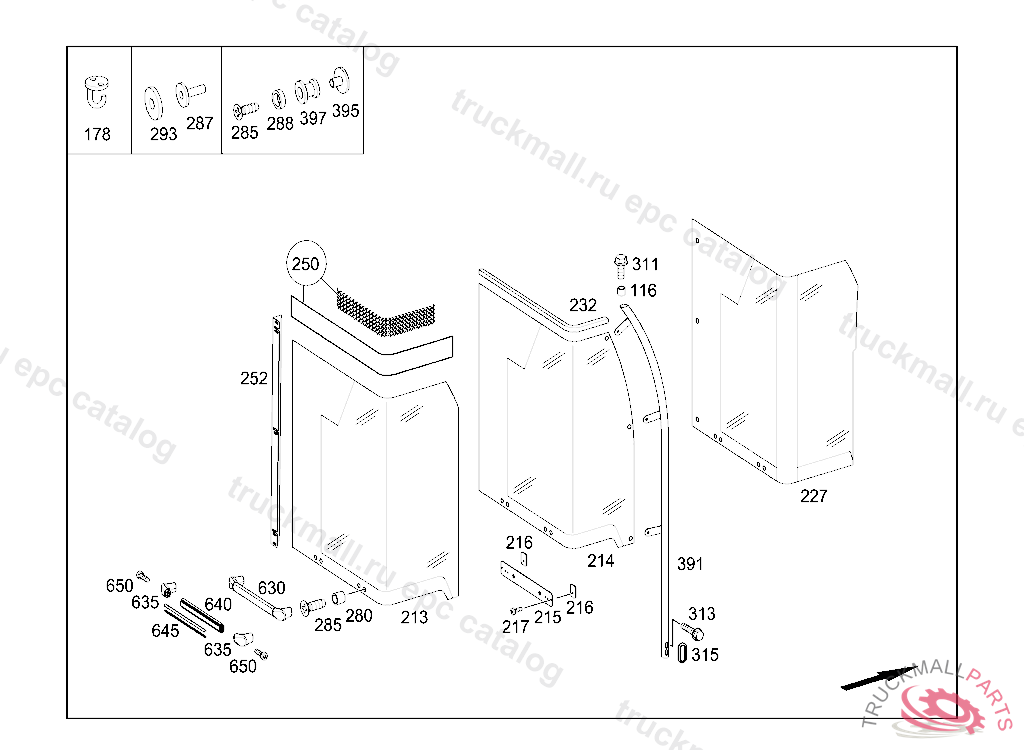

Поз.
Артикул
Описание
116
SPACER TUBE
178
CLOTHES-HOOK , FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
213
PARTITION PANEL PARTITION PANEL,REAR LATERAL, FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
214
PARTITION PANEL PARTITION PANEL,REAR LATERAL, FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
214
GLASS PANE PARTITION PANEL,REAR LATERAL
214
PARTITION PANEL PARTITION PANEL,REAR LATERAL
215
PLATETO 6287100801
216
THREADED PLATETO 6287100801
217
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
232
FRAME
250
ADHESIVE FASTENER SECONDARY SWITCHBOARD
252
ANGLE , FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
280
SPACER TUBE TO GLASS PANE,BOTTOM
280
SPACER TUBE ADDITIONAL BLOWER TO ADDITIONAL BLOWER
285
SCREWM6X30 T30
285
SCREW MOUNTING OF INSTRUMENT PANEL
285
SCREWM6X10
285
SCREW LIGHT SWITCH M5X16
287
THREADED CHUCK. PART NAME MISSING
288
WASHER
288
SEAL RING
293
WASHER TO GLAS PANE,LATERAL
311
SCREW BRACKET TO CAB REAR PANEL M 8X20
313
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
315
COVERING
391
GRIP RAIL TO GLAS PANE,LATERAL, NO.7365I.......I.......I.......
395
BUSHING
397
MOUNTING
630
HANDLE TO GLASS PANE,BOTTOM MODULAR 330LG
630
HANDLE TO GLASS PANE,BOTTOM, FROM IDENT NO. 100921 ALSO INSTALLED IN 100586,100762-100765,100768-100770,100782,100783,100797,100842,100849-100866,100872,100912. EXCEPT 100941-100946,100957-100960.
630
HANDLE TO GLASS PANE,BOTTOM
635
END PIECETO A 632 810 03 54
640
METAL SECTIONTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
645
INSERTTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
650
SCREWM8 X 25 MM / TO A 632 810 03 54
999
PANELLING TO DOOR FRAME TOP
999
REINFORCEMENT INTERIOR DOOR UPPER PART
999
VALUABLES COMPARTMENT
999
GUIDE
999
END PIECE
999
BRACKET
999
LATCH
999
DETENT
999
END PIECE
999
LOCK
