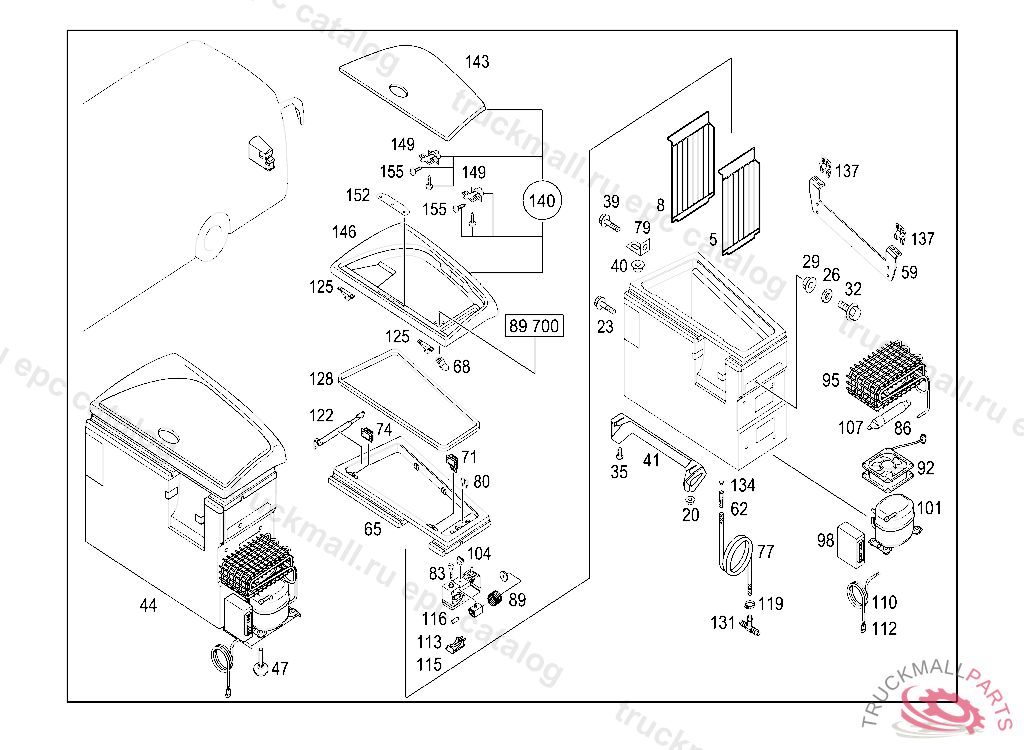

Поз.
Артикул
Описание
5
GRILLE229X419MM
8
GRILLE279X419MM
20
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
20
NUT GUIDE RAIL,REAR BOTTOM
23
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M8X35
26
WASHER BRACKET TO CONSOLE
29
NUT HORN TO BRACKET M8
32
SCREW , Replaced By: N910143008009
35
SCREW W SOCKET DRIVEM6X25 T30
39
SCREW , Replaced By: N910143008000
40
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
41
CONSOLE DEEP FREEZER
44
DEEP FREEZERELTESAN, UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.08.2009, Replaced By: A6328201006
44
REFRIGERATORELTESAN, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009 EXHAUST STOCK OF OLD PART NUMBER FIRST
47
FOOTRESTM10
59
BRACKET
62
VALVE
65
RIM , UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 31.08.2009
65
COVER FRAME , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
68
LATCH TONEUE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
68
LATCH PLATE
71
FASTENER
74
FASTENER COVER
77
HOSED7/6 - 3/4
79
BRACKET
80
LIGHT EMITTING DIODE GREEN
80
LUMINOUS PLATE
83
FUSE F.FEEBLE CURRENT5A
83
LOCK5A
86
DEHYDRATOR
89
THERMOSTAT REFRIGERATOR CODE 028
92
FAN COMPRESSOR, AS OF PRODUCTION BREAKPOINT DATE 01.06.00
92
BLOWER COMPRESSOR, Replaced By: A0008358704
95
CONDENSER
98
CONTROL UNIT COMPRESSOR 24 V, AS OF PRODUCTION BREAKPOINT DATE 01.06.00
101
COMPRESSOR24 VDC/ R 134 A, AS OF PRODUCTION BREAKPOINT DATE 01.06.00
101
COMPRESSOR24 VDC/ R 134 A, Replaced By: A0008354003
104
KNOB , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
104
ROTARY KNOB
107
SPRING COMPRESSOR
110
CABLE HARNESS , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
110
CABLE HARNESS
112
CASE
113
SHELL REFRIGERATOR
115
LED ILLUMIN. DISPLAY WITHE
115
FUSE BOX
116
BULB24V/5W, Replaced By: N072601024131
116
BULB24V/5W
119
CLAMP16 - 23 MM
119
HOSE CLAMP12-22MM,TO A 632 820 10 06
122
SPRING
122
DASHPOT GAS PRESSURE SPRING
125
FASTENER
128
SEAL
131
T-FITTING
134
PLUG
137
HINGE , Replaced By: A0008300751
137
HINGE
140
CLOSING COVER COMPLETE, AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
140
COVER COMPLETE
143
PANELLING
143
HOUSING COVER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
143
COVER , Replaced By: A0008270429
146
COVERING , Replaced By: A0008270939
146
COVER
146
COVER , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.09.2009
149
HINGE , Replaced By: A0008270351
149
HINGE
152
PLATE , Replaced By: A0008270911
152
PLATE
155
SHEET METAL SCREW SLOTTED GATE TO FLOOR SHIFT, 124.0,124.1 : F 063052 124.2,124.3 : F 079076
