Поз.
Артикул
Описание

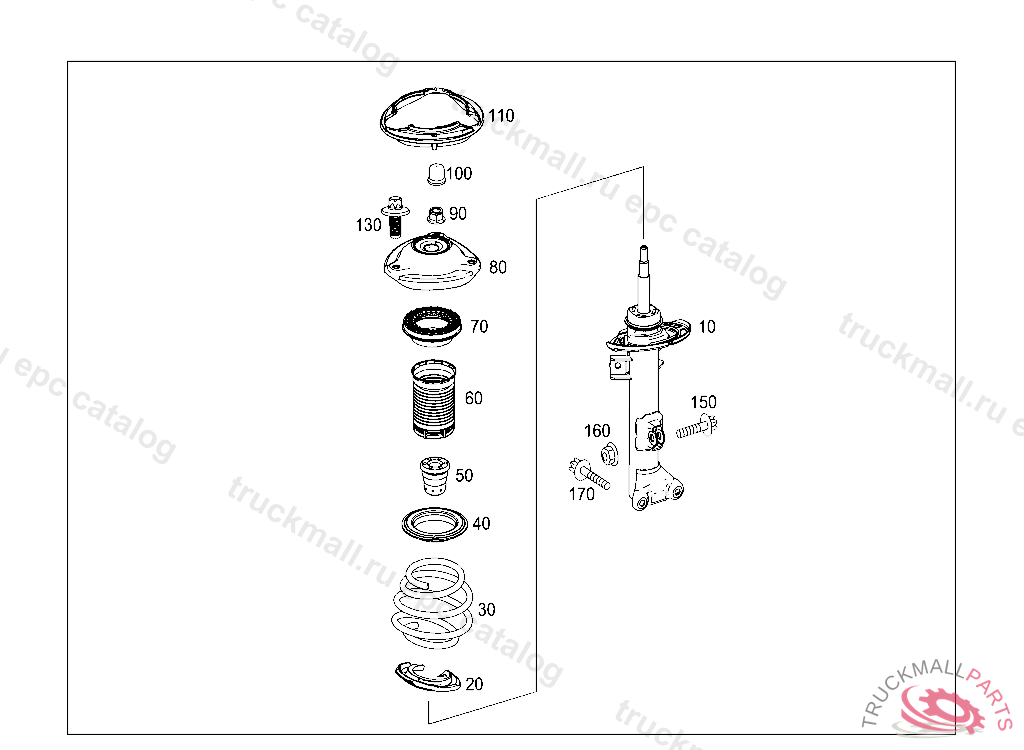

10
SHOCK-ABSORBER STRUT FRONT RIGHT
10
SHOCK-ABSORBER STRUT FRONT LEFT
10
SHOCK-ABSORBER STRUT FRONT LEFT AND RIGHT
10
SHOCK-ABSORBER STRUT FRONT LEFT AND RIGHT
20
COIL SPRING SHIM BOTTOM LEFT & RIGHT
30
HELICAL SPRING COLOR MARKING: 1 X SILVER/2 X BLUE, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 1 X SILVER/2 X YELLOW, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X ORANGE, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X GREEN, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X YELLOW, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X VIOLET, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X RED, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 2 X SILVER/1 X BLUE, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 1 X SILVER/2 X VIOLET, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 1 X SILVER/2 X RED, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
30
HELICAL SPRING COLOR MARKING: 1 X SILVER/2 X GREEN, UPON EXCHANGING SPRING, ALWAYS REPLACE LOWER SPRING SEAL
40
COIL SPRING SHIM TOP LEFT AND RIGHT
50
BUFFER STOP STOP BUFFER, F 00968620110501
50
ADDITIONAL SPRING STOP BUFFER, F 00968520110501, Replaced By: A1723210606, +001A1723200273
50
ADDITIONAL SPRING STOP BUFFER, F 00968520110501, Replaced By: A1723210506, +001A1723200273
50
BUFFER STOP STOP BUFFER, F 00968620110501
60
ELASTOMERIC CUP DAMPER STRUT
70
BALL BEARING
80
SUPPORT BEARING SPRING STRUT TO BODY, F 00968520110501, Replaced By: A1723200273, +001A1723210606
80
SUPPORT BEARING SPRING STRUT TO BODY, F 00968620110501
90
NUT TRANSVERSE CONTROL ARM TO INTEGRAL CARRIER, RIGHT M14X1.5
100
DUST PROTECTION CAP TOP
110
SHIELDING TO BEARING
130
SCREW W RND. HEXAL. HEAD SPRING STRUT TO BODY M10X23
150
BOLT HYDROPNEUMATIC SPRING LEG TO STEERING KNUCKLE,TOP M14X1.5X45
160
NUT W FLANGE, BINDING LEAF SPRING TO RUBBER MOUNTING M14X1.5
170
BOLT HYDROPNEUMATIC SPRING LEG TO STEERING KNUCKLE,BOTTOM M12X20
