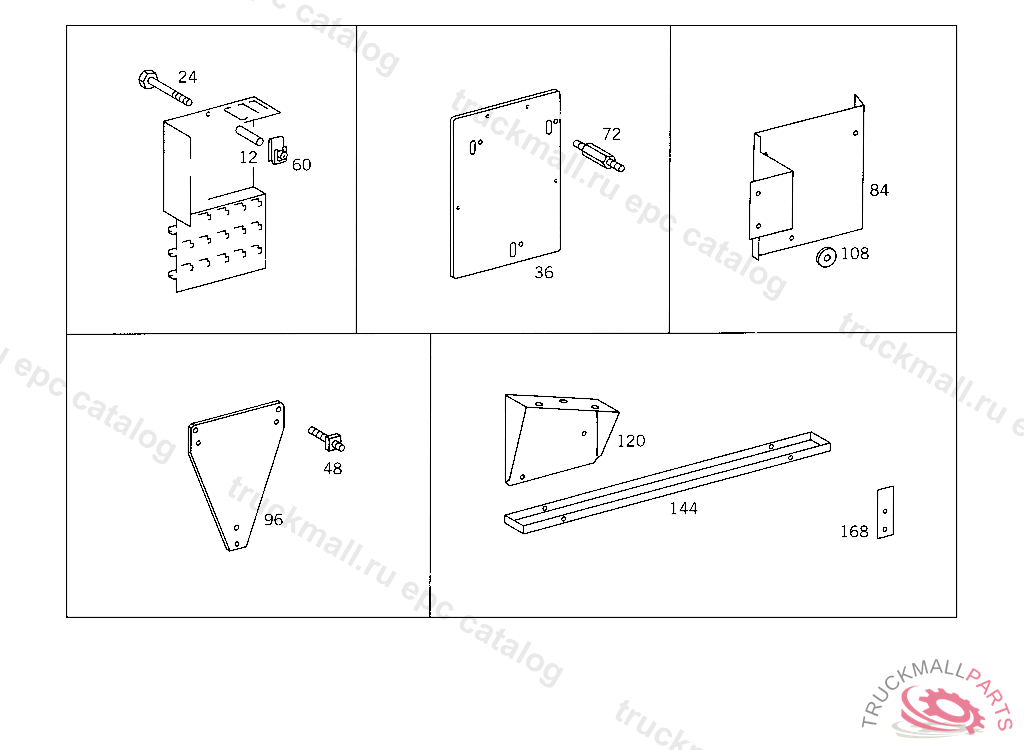

Поз.
Артикул
Описание
12
SPACER TUBE COVERING TO SEMIMONOCOQUE WING, TO BE ADAPTED DURING ASSEMBLY
12
BUSHING APPARATUS PLATE 9 MM, TO BE ADAPTED DURING ASSEMBLY
12
SPACER TUBE APPARATUS PLATE, TO BE ADAPTED DURING ASSEMBLY
12
SPACER TUBE , Replaced By: A4602910350
12
SPACER TUBE APPARATUS PLATE, TO BE ADAPTED DURING ASSEMBLY
12
SPACER TUBE CONTROL UNIT TO CAB, TO BE ADAPTED DURING ASSEMBLY
12
SPACER TUBE CONTROL UNIT TO CAB, TO BE ADAPTED DURING ASSEMBLY
24
SCREW APPARATUS PLATE M 6X150
24
SCREW APPARATUS PLATE M 6X100
24
SCREW APPARATUS PLATE M 6X80
24
SCREW , Replaced By: N304017006026
24
SCREW , Replaced By: N304017006026
24
SCREW APPARATUS PLATE M 6X85
24
SCREW APPARATUS PLATE M 6X45
24
SCREW , Replaced By: N304017006027
24
SCREW COVERING M 5X60
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT TO CAB
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT
36
BRACKET CONTROL UNIT TO CAB
48
PIN APPARATUS PLATE
48
PIN APPARATUS PLATE
60
NUT RETAINER APPARATUS PLATE TO CAB
60
NUT RETAINER APPARATUS PLATE,5 715400
60
NUT RETAINER APPARATUS PLATE,5 715400
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
72
PIN APPARATUS PLATE
84
BRACKET CONTROL UNIT
84
BRACKET CONTROL UNIT TO CAB
96
PLATE CONTROL UNIT TO CAB
108
WASHER COMPRESSED AIR LINE TO BRACKET
108
WASHER , Replaced By: N009021006208
120
BRACKET CONTROL UNIT
120
BRACKET CONTROL UNIT
120
BRACKET CONTROL UNIT
120
BRACKET CONTROL UNIT
120
BRACKET CONTROL UNIT
144
COVERING CONTROL UNIT
168
PLATE COVERING
999
BRACKET CONTROL UNIT
999
BRACKET COVERING, NOT USED
999
NUT APPARATUS PLATE
999
BRACKET (APPARATUS PLATE)
999
PLATE
