Поз.
Артикул
Описание

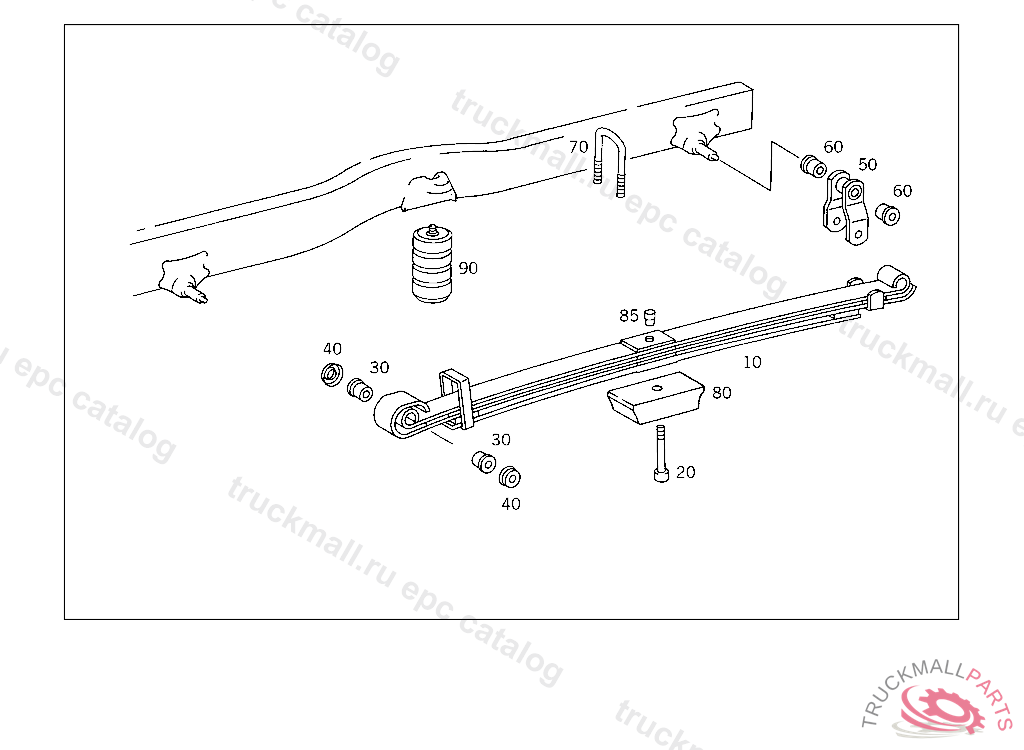

10
REAR SPRING , TO WHEELBASE 3150 MM ,WITH EXHAUST IN FRONT OF REAR AXLE ,REWORK IF NECESSARY. USE U-BOLT + GUIDE PLATE + FITTED SCREW AS REQUIRED (SEE GROUP 32 ,VARIO) ONLY REPLACEABLE BY PAIRS, Replaced By: A6673203306, +002A6703200175, +004A6673516425
10
REAR SPRING , TO WHEELBASE 3150 MM ,WITH EXHAUST IN FRONT OF REAR AXLE ,REWORK IF NECESSARY. USE U-BOLT + GUIDE PLATE + FITTED SCREW AS REQUIRED, Replaced By: A6673203206, +002A6703200175, +002A6673220631, +004A6673516425
10
REAR SPRING
10
REAR SPRING (SUPPORTING SPRING),3 LEAVES
20
SPRING BOLTM 10X75
20
SPRING BOLT
30
BUSHING
30
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
40
SUPPORTING SHELL REAR SPRING TO REAR SPRING FRONT BRACKET
40
SUPPORTING SHELL REAR SPRING TO REAR SPRING FRONT BRACKET
50
SHACKLE REAR SPRING TO REAR SPRING REAR BRACKET
60
BUSHING
60
BUSHING FRONT SPRING TO FRONT-SPRING REAR BRACKET
70
U-BOLT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 001514 P 227655, Replaced By: A6673514725
70
U-BOLT , Replaced By: A6673514025
70
U-BOLT REAR AXLE TO TO REAR SPRINGS M14X180 MM
70
U-BOLT REPAIR SOLUTION M12X160 MM
70
U-BOLT REAR AXLE TO TO REAR SPRINGS M12X180 MM, 813314 N 000000 P 000000
80
SHIM REAR SPRING 35 MM
85
PIN (CENTERING CONE), UP TO IDENT NO.: 837282, FROM IDENT NO.: SEE SA 44210/1+2
90
RUBBER SPRING FRONT SPRING STOP
