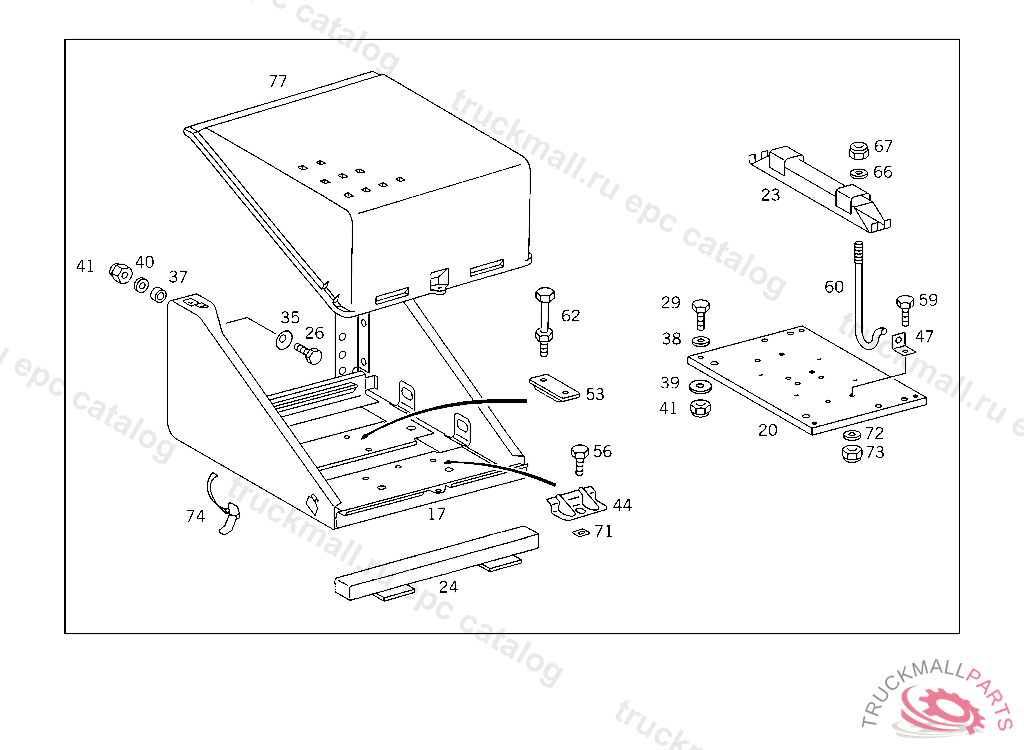

Поз.
Артикул
Описание
20
BATTERY TRAY
23
RAIL
26
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
29
BOLT. SCREW VIBRATION ABSORBER TO BRACKET M 10X55
38
WASHER DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
39
WASHER LEAF SPRING TO STRUT
39
WASHER BRACKET TO COVERING
39
WASHER , Replaced By: N009021010209
41
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
NUT SUPPORT TO SIDE MEMBER
41
NUT , Replaced By: N913023010002
47
ANGLE BATTERY MOUNTING
59
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
59
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
59
SCREW BRACKET TO SIDE MEMBER
60
CLAMPING SCREW BATTERY MOUNTING
66
WASHER , Replaced By: N009021006208
66
WASHER COMPRESSED AIR LINE TO BRACKET
67
NUT AT FILTER BRACKET
72
WASHER BRACKET TO LEFT SIDE MEMBER
72
WASHER , Replaced By: N009021008213
72
WASHER BRACKET TO CAB REAR PANEL
73
NUT , Replaced By: N913004008001
73
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
73
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
74
FASTENER
77
COVER
999
SPACER TUBE ELECTRIC CABLE THRU FRAME, FROM IDENT NO.K 224007, EXCEPT FOR K 222189
999
SCREW STRUT TO FRAME, LEFT
999
THREADED UNION TERMINAL 30,CABLE TO STARTING MOTOR,K 199371
999
NUT EXHAUST PIPE TO SIDE MEMBER
