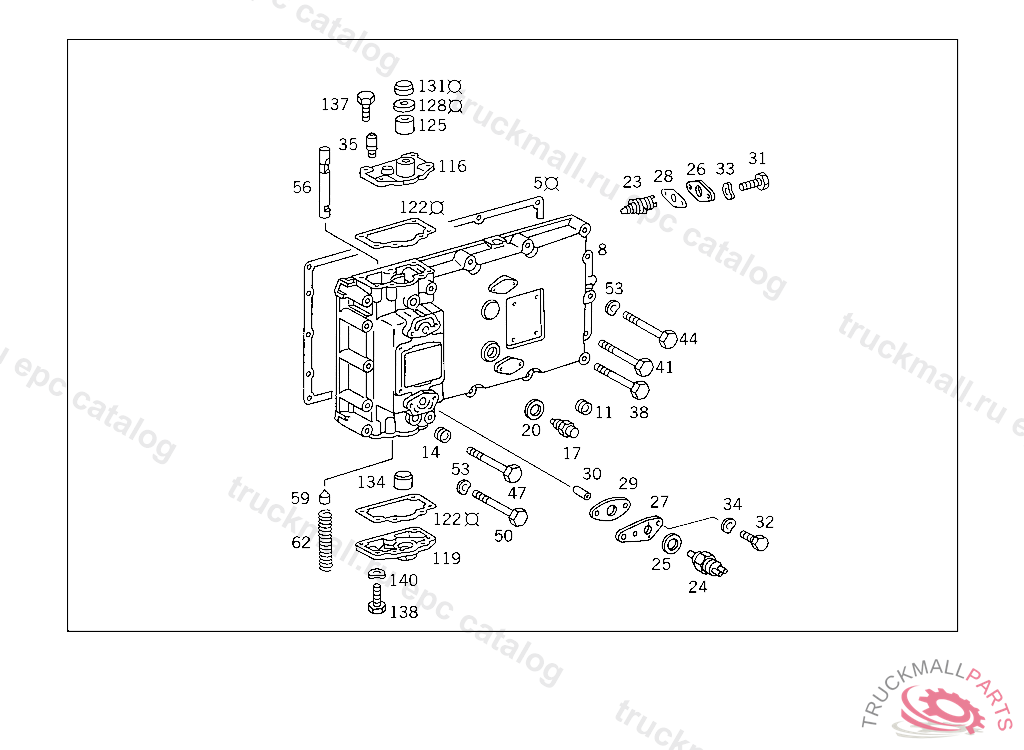

Поз.
Артикул
Описание
5
GASKET LATERAL, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
5
GASKET , Replaced By: A0002650280
8
TRANSMISSION CASE COVER , Replaced By: A0002612019
8
TRANSMISSION CASE COVER (SHIFTER COVER),059559 -718.254 , 004639 -718.630 , 001159 -718.631 , 001180 - 718.634
11
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
14
SCREW PLUG
17
DETENT , Replaced By: A0002601873
17
DETENT TRANSMISSION CASE
20
SEAL RINGTO 006 997 00 72
20
LOCK PLATE
23
SWITCH FRONT AXLE DRIVE INDICATOR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
26
FLANGE FRONT AXLE DRIVE INDICATOR, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
31
SCREW BRACKET MOUNTING
31
SCREW 3/2-WAY VALVE TO BRACKET
33
SPRING WASHER CABLE TO ALTERNATOR
35
VALVE
35
VALVE , Replaced By: A0002642389
35
BREATHER , Replaced By: A3432640089
38
SCREW LEVER TO RELEASE SHAFT
41
SCREW STRAP TO BRACKET
44
SCREW CLUTCH TO FLYWHEEL
47
SCREW BRACKET TO REAR CROSS MEMBER
50
SCREW
53
SPRING WASHERTO 000 268 46 01
56
SHAFT SHIFT CASE
56
SHAFT SHIFT CASE
59
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002683974
62
SPRING SHIFT CASE
116
CASE SHIFTING DOME
119
COVER SHIFT CASE,BOTTOM
122
GASKET SHIFT CASE,TOP AND BOTTOM
122
GASKET , Replaced By: A0002685180
125
BUSHING SHIFTING DOME,TOP
128
SEAL RING SHIFTING SHAFT
131
BOOT SHIFTING SHAFT
134
NEEDLE BEARING REAR DRIVE SHAFT
137
SCREW QUICK-RELEASE VALVE TO BRACKET
138
SCREW BRACKET TO CONSOLE M 8X25
140
SPRING WASHER CABLE TO ALTERNATOR
999
JOINT , Replaced By: A0002686189
999
JOINT , Replaced By: A0002686289
999
SHIFTING ROD , Replaced By: N900331012339
999
SHAFT , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0002605038
