Поз.
Артикул
Описание

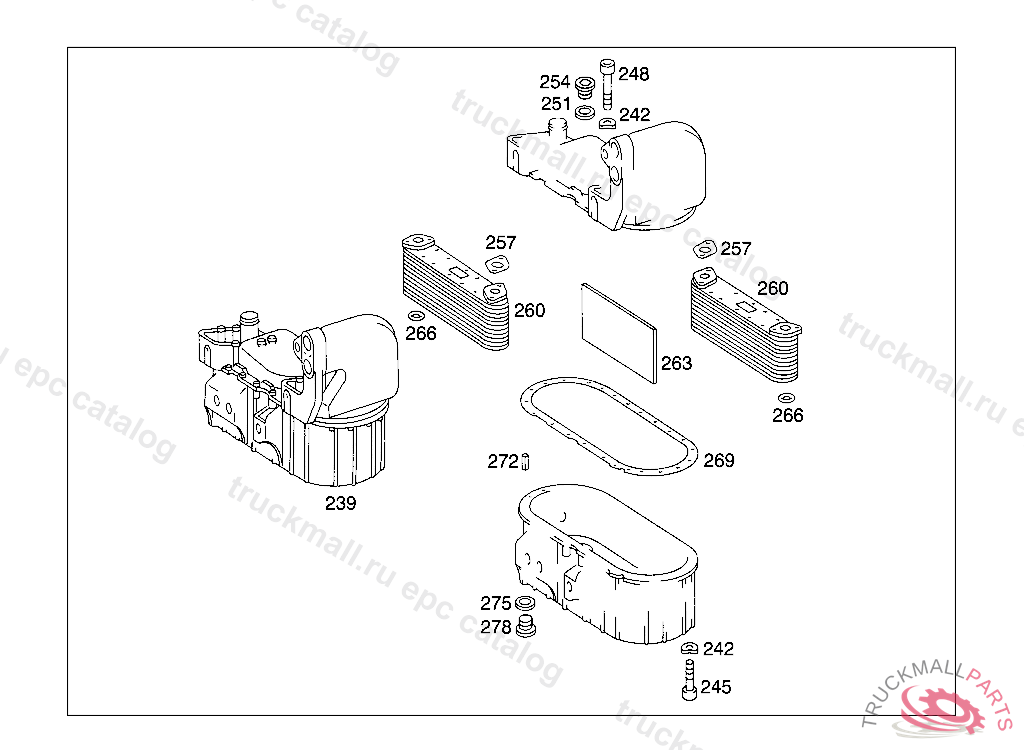

239
OIL COOLER
239
HOUSING , Replaced By: A0002701295
242
SPRING WASHER BOX TO BODY
242
SPRING WASHER , Replaced By: N000137008214
245
SCREW
248
SCREWM 8X50
248
SCREW
248
SCREWM 8X60
248
HEXALOBULAR BOLT. SCREWM 8X45
248
SCREW , Replaced By: N000000001448
251
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
254
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
257
GASKET
260
ELEMENT
263
COVERING
266
SEAL RING
269
GASKET
272
CLAMPING SLEEVEROCKINGER,TYP 59 U150
275
SEAL RING VALVE TO VALVE,K 025179
278
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
278
SCREW PLUG HOUSING,BOTTOM, Replaced By: N000908018011
