Поз.
Артикул
Описание
5

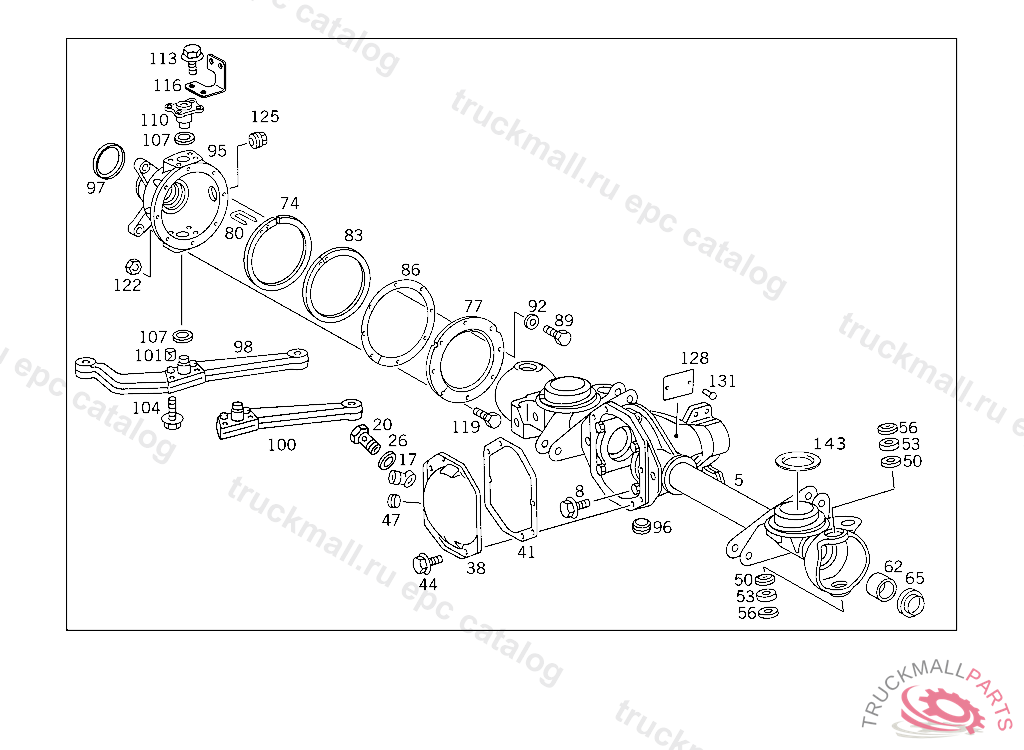

FRONT AXLE HOUSING WITH REAR AXLE TUBES
5
FRONT AXLE HOUSING WITH REAR AXLE TUBES
8
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
38
COVER AXLE HOUSING
41
GASKET COVER TO AXLE HOUSING
44
SCREW COVER TO AXLE HOUSING
47
SCREW PLUG
50
SEAL RING STEERING KNUCKLE,BOTTOM
53
TAPERED ROLLER BEARING OUTSIDE,F 023121 ALSO INSTALLED ON F 027127
53
TAPERED ROLLER BEARING OUTSIDE
56
EXPANSION PLUG KINGPIN
62
BUSHING REAR AXLE TUBE
65
SEAL RING REAR AXLE TUBE
65
SEAL RING REAR AXLE TUBE
74
SEAL HOLDER INSIDE
77
SEAL HOLDER OUTSIDE
80
CONSOLE
83
GASKET INSIDE
83
GASKET SPLIT
86
GASKET OUTSIDE
89
SCREW BRACKET TO CAB REAR PANEL M 8X20
89
SCREW BRACKET TO SIDE MEMBER M8X20
92
WASHER EXHAUST MUFFLER TO STRAP
95
HOUSING LEFT
95
HOUSING RIGHT
96
PLUG TO LOCK ANTI-LOCK BRAKING SYSTEM SENSOR BORES
97
PROTECTIVE RING AT HOUSING
98
STEERING ARM LEFT
98
STEERING ARM RIGHT
100
STEERING ARM RIGHT
100
STEERING ARM LEFT
101
CLAMPING PIN STEERING ARM TO STEERING KNUCKLE
104
SCREW STEERING ARM TO STEERING KNUCKLE M 14X50, SERRATED BOLT
104
SCREW STEERING ARM AND KING PIN TO HOUSING M 14X50
107
WASHER AS REQUIRED, HOUSING BOTTOM 1.50 MM
107
FITTED WASHER AS REQUIRED, HOUSING TOP 0.30 MM
107
WASHER AS REQUIRED, HOUSING BOTTOM 0.55 MM
107
FITTED WASHER AS REQUIRED 1.20 MM
107
FITTED WASHER AS REQUIRED 1.50 MM, 714.700,704,054348 714.701 053627
107
SHIM. FITTED WASHER AS REQUIRED 0.50 MM
107
WASHER AS REQUIRED, HOUSING BOTTOM 0.30 MM
107
WASHER AS REQUIRED 0.80 MM
107
FITTED WASHER AS REQUIRED 0.55 MM
107
FITTED WASHER AS REQUIRED 1.00 MM,054348
107
WASHER AS REQUIRED, HOUSING BOTTOM 0.50 MM
107
FITTED WASHER AS REQUIRED 0.80 MM
107
WASHER AS REQUIRED 0.45 MM
107
FITTED WASHER AS REQUIRED, HOUSING TOP 0.45 MM
107
WASHER AS REQUIRED 1.00 MM
107
FITTED WASHER AS REQUIRED, HOUSING TOP 0.35 MM
107
FITTED WASHER AS REQUIRED 0.40 MM
107
WASHER AS REQUIRED 0.35 MM
107
WASHER AS REQUIRED 0.40 MM
107
WASHER AS REQUIRED 1.20 MM
110
KINGPIN TOP
113
SCREW UPPER KINGPIN TO STEERING KNUCKLE M14X1.5X35
116
BRACKET RIGHT BRAKE LINE
116
BRACKET LEFT BRAKE LINE
119
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
122
NUT STRAP TO BRACKET
125
SCREW PLUG
128
UNIT IDENTIFICATION PLATE
128
UNIT IDENTIFICATION PLATE
143
STIFFENING AXLE HOUSING
