Поз.
Артикул
Описание

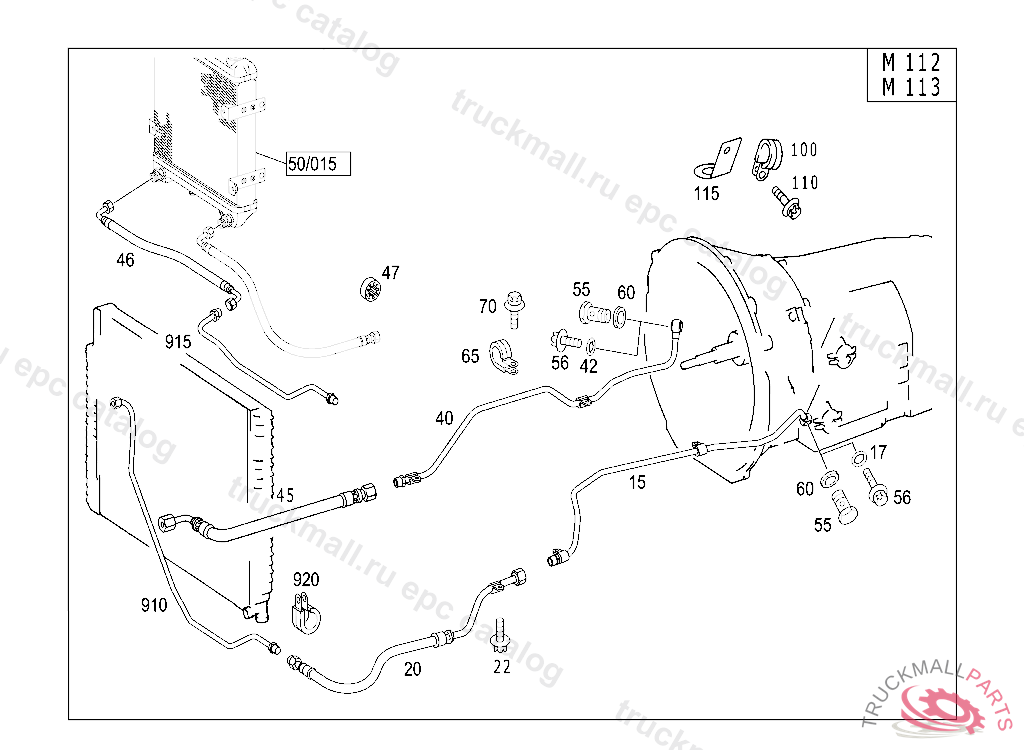

15
LINE TORQUE CONVERTER HOUSING TO OIL COOLER AT LEFT, A 04047620030930804
20
HOSE PARTITION POINT TO OIL COOLER, LEFT
22
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
40
LINE OIL COOLER TO TORQUE CONVERTER HOUSING RIGHT, A 04047620030930804
45
PRESSURE HOSE PARTITION POINT TO OIL COOLER, RIGHT, A 00879420000630
46
HOSE FROM TRANSMISSION TO AIR COOLED OIL COOLER,LEFT
47
RUBBER RING
55
BANJO BOLT OIL LINE TO TRANSMISSION CASE
60
SEAL RING OIL LINE TO TRANSMISSION 14X18
60
SEAL RING
60
SEAL RING OIL LINE TO TRANSMISSION 14X18, Replaced By: A0002711160
65
CLAMP CABLE HARNESS MOUNTING
70
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
100
CLAMP CABLE HARNESS MOUNTING
110
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
115
BRACKET TO TRANSMISSION FLANGE, A 03627320031028803
115
BRACKET TO AIR CONDITIONER COMPRESSOR, A 03627320031028803
910
LINE OIL COOLER,TOP, A 33789620021113MA 323239
910
LINE
915
LINE OIL COOLER,TOP
920
CLAMP CABLE HARNESS MOUNTING
