Mercedes A1644310042 - Болт

R 350 4MATIC 251.157

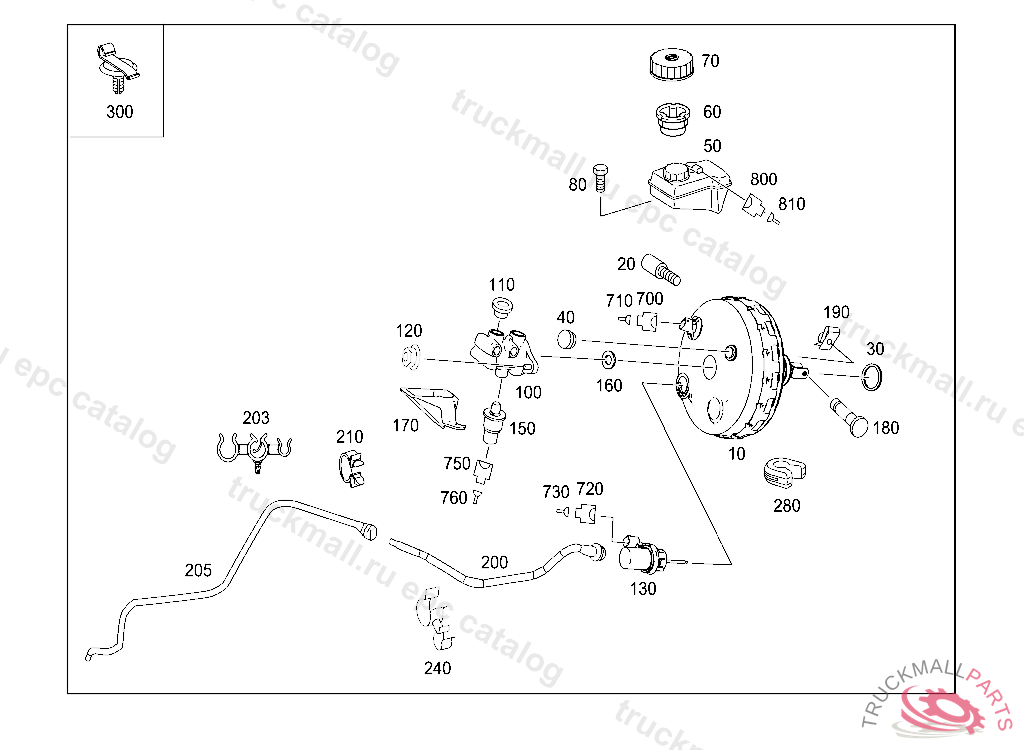

42 BRAKES - 060 BRAKE BOOSTER
  • Поз.
    Артикул
    Описание
  • 10
    BRAKE BOOSTER , A 20979520061130 P A 209723 A 20979520061130MA 210855
  • 20
    BOLT EXPANSION RESERVOIR TO MASTER CYLINDER
  • 30
    GASKET BRAKE BOOSTER
  • 40
    SEALING PLUGS VACUUM LINE AT BRAKE BOOSTER
  • 50
    EXPANSION TANK BRAKE BOOSTER
  • 50
    EXPANSION TANK BRAKE BOOSTER
  • 60
    STRAINER BRAKE FLUID RESERVOIR
  • 70
    COVER
  • 80
    BOLT EXPANSION RESERVOIR TO MASTER CYLINDER
  • 100
    BRAKE MASTER CYLINDER , A 20972720061130 P A 205002A 209586 A 20972720061130MA 209866
  • 110
    STOP PLUG EXPANSION RESERVOIR TO MASTER CYLINDER
  • 120
    HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 130
    SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS, A 809595 F 894084 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 809594, F 894083 WITH CODE 800
  • 150
    SENDER UNIT PRESSURE SENSOR, A 21638720010731 E 02000020070101
  • 160
    SEAL RING
  • 170
    BAFFLE PLATE BRAKE MASTER CYLINDER
  • 180
    PIN BRAKE PEDAL TO BRAKE BOOSTER
  • 190
    LOCK PULL TO FASTENER
  • 200
    LINE AT BRAKE BOOSTER
  • 200
    LINE AT BRAKE BOOSTER
  • 203
    LINE HOLDER LINE ATTACHMENT
  • 205
    VACUUM LINE
  • 300
    LINE HOLDER ENGINE HOOD HINGE,LEFT
  • 700
    CLUTCH. PIN BUSHING HOUSING RADAR SENSOR 6 PIN, CODE B,TO A0004460449
  • 710
    CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
  • 720
    CLUTCH. PIN BUSHING HOUSING SIREN
  • 730
    CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
  • 750
    PIN BUSHING HOUSING. PLUG SOCKET SENSOR TO WHEEL HOUSING,3-POLE
  • 760
    CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
  • 800
    PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
  • 810
    CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
