Mercedes A1152681442 - КНОПКА

O 303 301.164

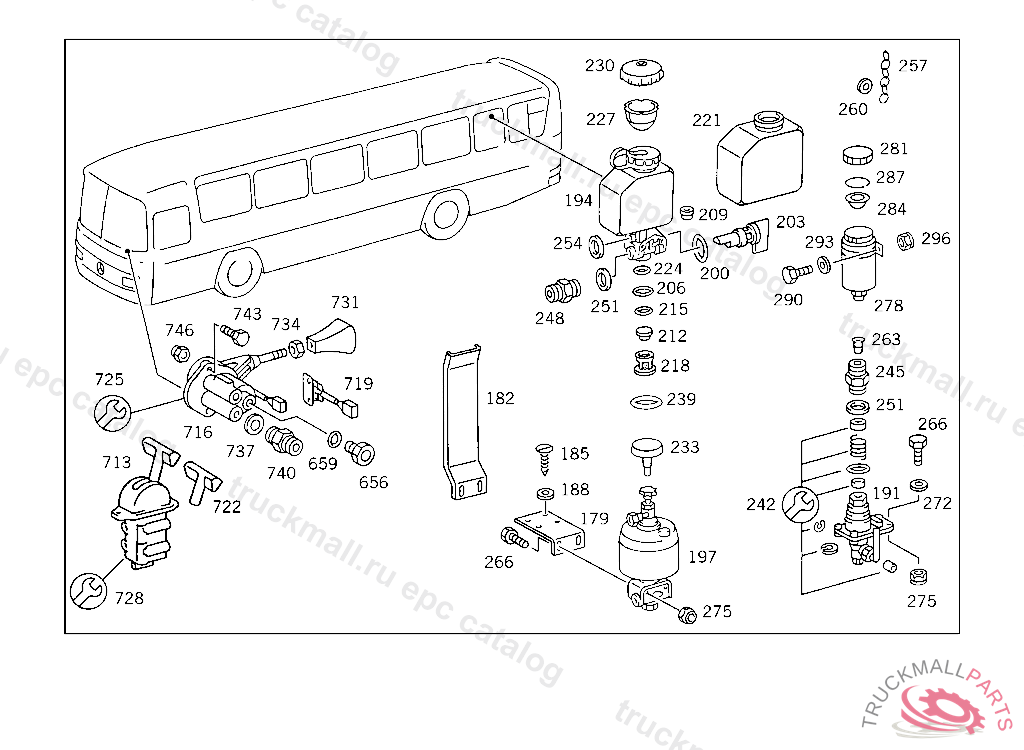

42 BRAKE SYSTEM - 001 BRAKES IL. 5
  • Поз.
    Артикул
    Описание
  • 191
    ANTI-FREEZE DEVICE
  • 242
    REPAIR KIT 3/2-WAY VALVE
  • 245
    FITTING LINE CONNECTION, Replaced By: N000000006446
  • 251
    SEAL RING LINE CONNECTION
  • 263
    NOZZLE ANTI-FREEZE DEVICE,019894
  • 266
    SCREW PIPE CLAMP
  • 266
    SCREW , Replaced By: N304017008021
  • 272
    WASHER EXHAUST MUFFLER TO STRAP
  • 272
    WASHER , Replaced By: N000125008443
  • 275
    NUT BRACKET TO SIDE MEMBER
  • 278
    RESERVOIRTO 000 431 22 15
  • 281
    FILLER CAP
  • 284
    STRAINERTO 001 431 01 02,019894
  • 287
    CLAMPING RINGTO 001 431 01 02,019894
  • 290
    SCREW CAB FLOOR COVERING M 6X25
  • 293
    WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
  • 296
    NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
  • 296
    NUT , Replaced By: N910113006001
  • 656
    FITTING FROM BRAKE BOOSTER,"A" CONNECTION,TO VALVE,"V" CONNECTION, UP TO IDENT NO. 840080 EXCEPT FOR 500001-599999
  • 659
    SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
  • 713
    VALVE PARKING BRAKE, 10/50 FROM CHASSIS 034051 ALSO INSTALLED ON 033449,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012. PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
  • 713
    VALVE PARKING BRAKE, 10/50 FROM IDENT NO.034051, ALSO INSTALLED ON: 033449,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
  • 716
    VALVE HAND BRAKE VALVE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
  • 716
    VALVE HAND BRAKE VALVE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
  • 719
    SWITCH WITH CABLE TO 000 430 76 81, 10/50 UP TO IDENT NO.034050 EXCEPT FOR: 033449,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
  • 719
    SWITCH WITH CABLE TO 000 430 76 81, 10/50 UP TO IDENT NO.034050 EXCEPT FOR: 033449,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
  • 722
    HANDLETO WABCO
  • 722
    HANDLE , Replaced By: A0009972477
  • 725
    REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
  • 725
    REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
  • 725
    REPAIR KIT , Replaced By: A0004305760
  • 728
    REPAIR KITTO 001 430 58 81/59 81,WABCO, WITH HAND BRAKE VALVE ON ENGINE TUNNEL, FROM IDENT NO. SEE MF 26032
  • 728
    REPAIR KIT , Replaced By: A0034303381
  • 731
    KNOB
  • 731
    KNOB
  • 734
    NUT
  • 734
    NUT
  • 737
    SEAL RING FUEL LINE TO FEED PUMP
  • 737
    SEAL RING FUEL LINE TO FEED PUMP
  • 740
    FITTING LINE CONNECTION
  • 740
    FITTING LINE CONNECTION
  • 743
    SCREW BRACKET TO TAIL LAMP BRACKET
  • 743
    SCREW BRACKET TO TAIL LAMP BRACKET
  • 746
    NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
  • 746
    NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
  • 746
    NUT , Replaced By: N910113006001
  • 999
    VALVE GASKET KIT TO 003 429 16 44,BOSCH,UP TO 03.82
  • 999
    VALVEBOSCH
  • 999
    REPAIR KIT CHECK TO 003 429 07 44
  • 999
    BUSHINGWABCO,5 433388
  • 999
    VALVE SEAT RINGWABCO,5 433388
  • 999
    GASKETTO 003 429 22 44
  • 999
    THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
  • 999
    VALVE , Replaced By: A0004290782
  • 999
    VALVE , Replaced By: A0004291182
  • 999
    THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
  • 999
    THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
  • 999
    VALVE BODYTO 002 429 95 44
  • 999
    VALVE PARKING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
  • 999
    BRAKE HOSE , Replaced By: N074310013002
  • 999
    BRAKE HOSE , UP TO CHASSIS 003138 EXCEPT FOR 003131
  • 999
    BRAKE HOSE FROM TEST CONNECTION TO T-FITTING
  • 999
    BRAKE HOSE FROM CONNECTOR I TO CONNECTOR II
  • 999
    BRAKE HOSE CENTRAL AXLE
  • 999
    REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
  • 999
    REPAIR KIT DIAPHRAGM PART BOSCH,209
  • 999
    REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
  • 999
    REPAIR KIT SEAL RING BOSCH,209
  • 999
    GASKET34X2X6 MM,GRAU
  • 999
    VALVE SEATGRAU
  • 999
    VALVEWABCO
  • 999
    TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
  • 999
    VALVETO 003 997 11 36/12 36
  • 999
    RING DRAIN VALVE TO 000 432 08 07, NOT USED
  • 999
    O-RING CHECK VALVE TO AIR RESERVOIR
  • 999
    SEALING CORD9.2X3.5,TO A 003 429 35 44, NOT USED
  • 999
    T-FITTING , Replaced By: N074317000100
  • 999
    T-FITTING REAR AXLE BRAKE CIRCUIT
  • 999
    T-FITTING AIR DEHYDRATOR,CONNECTION:21"
  • 999
    T-FITTING BETWEEN THE LINES,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 999
    ELBOW FITTING AIR RESERVOIR,CONNECTIONS: "31,32"
  • 999
    ELBOW FITTING AT PRESSURE REGULATOR, UP TO IDENT NO.000837 MIT AUSNAHME VON 000614,000616,000621,000626,0006631,000634,000662,000783,000785,00792,000793,000811
  • 999
    ELBOW FITTING , Replaced By: A0029901271
  • 999
    CLAMP LINE CONNECTION
  • 999
    CLAMP , Replaced By: N916016018201
  • 999
    SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
  • 999
    GROMMET
  • 999
    REPAIR KITTO 003 429 35 44, NOT USED
  • 999
    REPAIR KIT PRESSURE REGULATOR WABCO
  • 999
    SEAL RING28X2 MM,GRAU
  • 999
    SEAL RING86X2 MM,GRAU
  • 999
    REPAIR KITTO 001 429 20 44,BOSCH
  • 999
    REPAIR KIT , Replaced By: A0004301407
  • 999
    T-FITTING INSIDE AND OUTSIDE AIR RESERVOIRS, FRONT CONNECTION
  • 999
    T-FITTING
  • 999
    SEAL CONE LINE CONNECTION
  • 999
    ELBOW FITTING DELIVERY LINE TO PUMP
  • 999
    ELBOW FITTING
  • 999
    T-FITTING REGULATING VALVE,CONNECTION: "1", FROM CHASSIS 003139 ALSO INSTALLED ON 000256,000500,000690,000747,000799,000805,000829,000876,000937,000964,001123,001247,001291,001482, 001531,001560,001887,001899,002062,002096,002106,002237,002293,002348,002441,002465,002488,002553, 002574,002595,002834,002893,002993,003131.
  • 999
    T-FITTING
  • 999
    ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
  • 999
    FITTING AIR RESERVOIR,CONNECTION: "13"
  • 999
    FITTING SHUTTLE VALVE,CONNECTION: "20"
  • 999
    LOOM TIE LINE MOUNTING 280 MM
  • 999
    REPAIR KITKNORR
  • 999
    REPAIR KIT BOOT TO 001 431 15 06,BOSCH
  • 999
    REPAIR KIT SEAL RING TO 001 431 15 06,BOSCH
  • 999
    REPAIR KIT , Replaced By: A0004201071
  • 999
    REPAIR KIT , Replaced By: A0004301109
  • 999
    BALLTO 003 429 22 44
  • 999
    ELBOW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "1", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
  • 999
    FITTING (PARTS KIT),LINE RUPTURE
  • 999
    FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
  • 999
    FITTING SHUTTLE VALVE
  • 999
    FITTING DELIVERY LINE TO PUMP
  • 999
    FITTING DELIVERY LINE TO FRAME
  • 999
    FITTING BRAKE HOSE,5 418584
  • 999
    LOOM TIE , Replaced By: N916017020000
  • 999
    FITTINGTO 001 431 01 02
  • 999
    FITTING , Replaced By: A0049978972
  • 999
    FITTING TWO-WAY VALVE
  • 999
    GASKET KIT SEAL RING TO 001 431 58 06,BOSCH
  • 999
    FITTING AIR RESERVOIR TO BRACKET, FROM CHASSIS 003139 ALSO INSTALLED ON 003131
  • 999
    FITTING RELAY VALVE,CONNECTION: "10",950459
  • 999
    SEAL RING LINE CONNECTION
  • 999
    FITTING FITTING TO SUBSTRUCTURE
  • 999
    FITTING , Replaced By: A0029905971
  • 999
    SEAL RING VALVE TO VALVE
  • 999
    FITTING ANTI-FREEZE DEVICE TO PRESSURE REGULATOR
  • 999
    FITTING AT AIR RESERVOIR
  • 999
    HOSE CLAMP LINE MOUNTING
  • 999
    SEAL RING22.3X2.4 MM,GRAU
  • 999
    SEAL RINGTO 000 429 28 95,GRAU
  • 999
    SEAL RING17X3.5,TO A 003 429 35 44, NOT USED
  • 999
    SEAL RINGWABCO
  • 999
    SEAL RING22.3X2.4,TO A 003 429 35 44, NOT USED
  • 999
    BRAKE HOSE , Replaced By: A0004298535
  • 999
    SCREW AIR RESERVOIR
  • 999
    SCREW RESERVOIR TO BRACKET M 22X1.5X50
  • 999
    HOSE BLEEDING, NOT USED
  • 999
    BRAKE HOSE , Replaced By: A0004298835
  • 999
    PLUG TOP,5 220080
  • 999
    BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
  • 999
    BRAKE HOSE LEFT AND RIGHT FRONT WHEEL BRAKE CYLINDERS
  • 999
    CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
  • 999
    WASHER
  • 999
    SCREW , Replaced By: N304014008007
  • 999
    SCREW , Replaced By: N304017008053
  • 999
    SCREW COVER PLATE TO BRACKET
  • 999
    NUT , Replaced By: N304032008006
  • 999
    GLAND LINE CONNECTION
  • 999
    GLAND , Replaced By: A0019901967
  • 999
    GLAND LINE CONNECTION
  • 999
    SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
  • 999
    SEAL RINGTO 000 553 03 05,000 553 18 05,
  • 999
    SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
  • 999
    SEAL RING LINE CONNECTION
  • 999
    SHEET METAL SCREW , Replaced By: N007981004258
  • 999
    SHEET METAL SCREW OIL LINE MOUNTING
  • 999
    WASHER , Replaced By: N009021006208
  • 999
    WASHER COMPRESSED AIR LINE TO BRACKET
  • 999
    NUT CHECK VALVE TO AIR RESERVOIR
  • 999
    NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
  • 999
    SCREW FRONT AXLE REGULATING SOLENOID VALVE
  • 999
    HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
  • 999
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 999
    NUT , Replaced By: N913004008001
  • 999
    UNION NUT LINE CONNECTION, Replaced By: N000000006239
  • 999
    UNION NUT FEED LINE
  • 999
    UNION NUT BUTT SCREW CONNECTION
  • 999
    SEAL RING , Replaced By: N007603012121
  • 999
    BANJO UNION , Replaced By: N000000000364
  • 999
    SLEEVE LEAK LINE
  • 999
    SLEEVE LINE CONNECTION
  • 999
    CLAMP ,K 147121, Replaced By: N000000000319
  • 999
    CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
  • 999
    CLAMP , Replaced By: N000000000667
  • 999
    CLAMP , Replaced By: A0059970190
