Mercedes N900055012001 - ШАЙБА ПРУЖИННАЯ

O 309 D 309.371

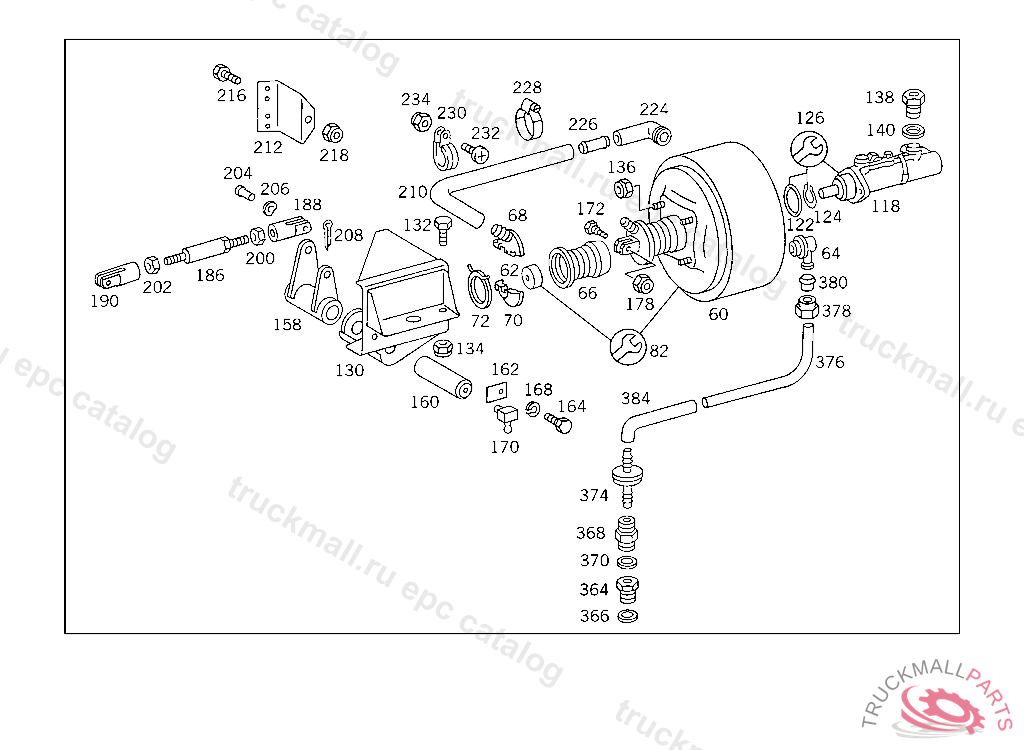

42 BRAKE SYSTEM - 001 BRAKES IL. 2
  • Поз.
    Артикул
    Описание
  • 60
    BRAKE BOOSTER ASSEMBLY , UP TO CHASSIS 162733
  • 60
    BRAKE BOOSTER ASSEMBLY , UP TO CHASSIS 162733
  • 60
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0044300630
  • 62
    DAMPING RING , FROM CHASSIS005298
  • 62
    DAMPING RING , FROM CHASSIS005298
  • 64
    CONNECTION HOUSING , FROM CHASSIS005298
  • 64
    CONNECTION HOUSING , FROM CHASSIS005298
  • 66
    PROTECTIVE CAPTO 001 430 21 30
  • 66
    PROTECTIVE CAPTO 001 430 21 30
  • 66
    PROTECTIVE CAPTO 001 430 36 30,002 430 27 30
  • 68
    BRACKET UPPER PART, BIS FGST 005296
  • 68
    BRACKET UPPER PART, BIS FGST 005296
  • 70
    BRACKET LOWER PART, BIS FGST 005296
  • 70
    BRACKET LOWER PART, BIS FGST 005296
  • 72
    CLAMPING RING , FROM CHASSIS005298
  • 72
    CLAMPING RING , FROM CHASSIS005298
  • 82
    REPAIR KIT
  • 82
    REPAIR KIT
  • 118
    BRAKE MASTER CYLINDER CAB,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 118
    BRAKE MASTER CYLINDER CAB,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 122
    SEAL RING
  • 124
    LOCK RING
  • 126
    REPAIR KITTO 002 430 64 01,145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913-145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 130
    SUPPORT BRAKE BOOSTER ASSEMBLY, FROM CHASSIS012115530029
  • 132
    SCREW END PIECE TO EXHAUST PIPE M 10X25
  • 132
    SCREW END PIECE TO EXHAUST PIPE M 10X25
  • 134
    NUT STRAP TO BRACKET
  • 134
    NUT STRAP TO BRACKET
  • 134
    NUT , Replaced By: N910113010000
  • 136
    NUT , Replaced By: N913004008001
  • 136
    NUT , Replaced By: N913004008001
  • 138
    FITTING TWO-WAY VALVE "12",4 4121264 691315
  • 138
    FITTING TWO-WAY VALVE "12",4 4121264 691315
  • 140
    SEAL RING LINE CONNECTION
  • 140
    SEAL RING LINE CONNECTION
  • 140
    SEAL RING LINE CONNECTION
  • 158
    LEVER INTERMEDIATE LEVER, FROM CHASSIS012115530029
  • 158
    LEVER INTERMEDIATE LEVER, FROM CHASSIS012115530029
  • 160
    PIVOT INTERMEDIATE LEVER TO BRACKET, 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 160
    PIVOT INTERMEDIATE LEVER TO BRACKET, 145736 ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138. EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701.
  • 162
    LOCK LEVER TO CONSOLE, FROM CHASSIS 698033 ALSO INSTALLED ON, 500001-599999
  • 162
    LOCK LEVER TO CONSOLE, FROM CHASSIS 698033 ALSO INSTALLED ON, 500001-599999
  • 164
    SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 164
    SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 164
    SCREW , Replaced By: N304017008016
  • 164
    SCREW PIPE CLAMP
  • 164
    SCREW , Replaced By: N304017008021
  • 168
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 168
    LOCK WASHER CLAMP TO BRACKET AND TO PIPE
  • 170
    GREASE NIPPLE
  • 170
    GREASE NIPPLE
  • 172
    SCREW
  • 172
    SCREW
  • 178
    NUT , Replaced By: N913004008001
  • 178
    NUT , Replaced By: N913004008001
  • 186
    ROD
  • 186
    ROD
  • 188
    YOKE L.H. THREAD
  • 188
    YOKE L.H. THREAD
  • 190
    YOKE R.H. THREAD
  • 190
    YOKE R.H. THREAD
  • 200
    NUT STRAP TO SUPPORT
  • 200
    NUT STRAP TO SUPPORT
  • 202
    NUT STRAP TO CONSOLE
  • 202
    NUT STRAP TO CONSOLE
  • 204
    PIN PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER
  • 204
    PIN PUSH ROD TO BRAKE PEDAL AND TO INTERMEDIATE LEVER
  • 206
    SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
  • 206
    SPRING WASHER PULL ROD TO BRAKE INTERMEDIATE LEVER
  • 208
    COTTER PIN STRAP TO SUPPORT
  • 208
    COTTER PIN STRAP TO SUPPORT
  • 210
    HOSE , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 210
    HOSE , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 212
    BRACKET FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I, 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 212
    BRACKET FROM BRAKE CIRCUIT II TEST CONNECTION TO BRAKE HOSE,REAR AXLE I, 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 216
    SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
  • 216
    SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
  • 218
    NUT STRAP TO BRACKET
  • 218
    NUT STRAP TO BRACKET
  • 218
    NUT , Replaced By: N910113010000
  • 224
    CONNECTOR , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 224
    CONNECTOR , 005298-145736 EXCEPT FOR 139841,139842,140553,145397,145406,145409,145426,145445,145462,145592,145660,145697,145701. ALSO INSTALLED ON 145741,145768,145770,145774,145786,145787,145795,145807,145808,145819,145825,145830,145837,145840, 145846,145860,145861,145888,145901,145907,145910,145911,145913,145914,145915,145916,145917,146138.
  • 226
    CONNECTOR
  • 226
    CONNECTOR
  • 228
    CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
  • 228
    CLAMP , Replaced By: N000000000667
  • 230
    CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
  • 230
    CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
  • 232
    SCREW CLAMP MOUNTING M 6X16
  • 232
    SCREW CLAMP MOUNTING M 6X16
  • 232
    SCREW , Replaced By: N000000001146
  • 234
    NUT PUMP TO BRACKET
  • 234
    NUT PUMP TO BRACKET
  • 234
    NUT , Replaced By: N913004006001
  • 364
    FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
  • 364
    FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
  • 366
    SEAL RING LINE CONNECTION
  • 368
    FITTING DELIVERY LINE TO PUMP
  • 370
    SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
  • 374
    VALVE (CHECK VALVE)
  • 374
    VALVE , Replaced By: A0004316107
  • 374
    VALVE (CHECK VALVE)
  • 376
    PIPE FROM VACUUM PUMP TO CHECK VALVE,360785
  • 376
    PIPE FROM VACUUM PUMP TO CHECK VALVE,360785
  • 376
    PIPE FROM VACUUM PUMP TO CHECK VALVE,360785
  • 376
    LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY,177155-360785
  • 376
    LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY, ORDER BY THE METER
  • 376
    LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY,360786
  • 376
    LINE FROM CHECK VALVE TO BRAKE BOOSTER ASSY, ORDER BY THE METER360785
  • 378
    NUT. UNION NUT LINE CONNECTION
  • 378
    UNION NUT LINE CONNECTION, Replaced By: N000000006239
  • 380
    CUTTING RING. GLAND LINE CONNECTION
  • 380
    SEAL CONE LINE CONNECTION
  • 380
    GLAND , Replaced By: A0019901967
  • 384
    PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
  • 384
    PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
  • 384
    PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
  • 384
    PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
  • 384
    PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
  • 999
    STRAINER , Replaced By: A0004313734
  • 999
    PROTECTIVE CAP , Replaced By: A0004217187
  • 999
    BRACKET. LOCK , Replaced By: A6525040038
  • 999
    BRAKE HOSE , Replaced By: A0004280535
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0014301430, +001A0024306301, +001A3104310035, +001A3104310135, +001A3104311440, +001A3109970282, +001N000933010016, +002N007985006109, +002N913002006002, +001N913002010000, +002N916016022203
  • 999
    VALVETO 003 430 07 01, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0014301430, +001A0024306301, +001A3104310035, +001A3104310135, +001A3104311440, +001A3109970282, +001N000933010016, +002N007985006109, +002N913002006002, +001N913002010000, +002N916016022203
  • 999
    STRAINERTO 002 430 31 01
  • 999
    FILLER CAP , Replaced By: A0004315133
  • 999
    COMPENSATING TANK. RESERVOIR , Replaced By: A0004318302, +001A3094310043
  • 999
    VALVE , Replaced By: A0004313607
  • 999
    VALVE ,000545, Replaced By: A0004313607
  • 999
    STRAINER , Replaced By: A0004314334
  • 999
    FILLER CAP , Replaced By: A0004315433
  • 999
    RESERVOIR , Replaced By: A0004318302
  • 999
    FILTER RING , Replaced By: A0015864143
  • 999
    HOSE , Replaced By: A0004358382
  • 999
    HOSE
  • 999
    HOSE , Replaced By: A0004358382
  • 999
    HOSE , Replaced By: A0004358382
  • 999
    HOSE , Replaced By: A0004358382
  • 999
    REPAIR KIT , Replaced By: A0015869242
  • 999
    REPAIR KIT , Replaced By: A0004302183
  • 999
    RIVETED NUT , Replaced By: N913010006106
  • 999
    POP BLIND RIVET. RIVET
  • 999
    BANJO UNION , Replaced By: N915052006005
  • 999
    CLAMP , Replaced By: N916016020201
  • 999
    CLAMP , Replaced By: A3604300143
  • 999
    CLAMP , Replaced By: N916016022203
  • 999
    BRAKE BOOSTER ASSEMBLY , Replaced By: A0014301430, +001A0024306301, +001A3104310035, +001A3104310135, +001A3104311440, +001A3109970282, +001N000933010016, +002N007985006109, +002N913002006002, +001N913002010000, +002N916016022203
  • 999
    BRAKE BOOSTER ASSEMBLY ,042866-050375 EXCEPT FOR 042868-042871,042876,042878-042881,042891,042892,042896,042902,042921,042943,042950,043013,043021., Replaced By: A0014301430, +001A0024306301, +001A3104310035, +001A3104310135, +001A3104311440, +001A3109970282, +001N000933010016, +002N007985006109, +002N913002006002, +001N913002010000, +002N916016022203
  • 999
    BRAKE BOOSTER ASSEMBLY , FROM CHASSIS 018154 ALSO INSTALLED ON 017661,017829 EXCEPT FOR 018155,018156,018159,018308,018310,018315,018317,018318,018327,018350,018355. EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 533350, Replaced By: A0024305630, +001A1262920074, +001N912011008000
  • 999
    RESERVOIR LESS WARNING DEVICE FAG
  • 999
    RESERVOIR , Replaced By: A0004314702
  • 999
    EDGE GUARD SECTION , Replaced By: A0009871972
  • 999
    WHEEL BRAKE CYLINDER , Replaced By: A0044206218
  • 999
    BRAKE MASTER CYLINDER , Replaced By: A0024306401
  • 999
    LOOM TIE , Replaced By: A0019978390
  • 999
    WHEEL BRAKE CYLINDER , Replaced By: A0094208218
  • 999
    DRUCKFEDER. SPRING , Replaced By: A3145860142
  • 999
    BRACKET
  • 999
    PROTECTIVE PLATE
  • 999
    REPAIR KIT , Replaced By: A3094210992
  • 999
    RATCHET ROD ,D 299170
  • 999
    LINE , Replaced By: A3404200729
  • 999
    LINE , Replaced By: A3404201329
  • 999
    BRAKE CABLE , Replaced By: A3094201385
  • 999
    LINE , Replaced By: A3404201429
  • 999
    BRAKE ANCHOR PLATE , Replaced By: A3094201817
  • 999
    LINE , Replaced By: A3404204229
  • 999
    BRAKE CABLE , Replaced By: A3094201385
  • 999
    BRAKE ANCHOR PLATE , Replaced By: A3094201917
  • 999
    LINE , Replaced By: A3404200729
  • 999
    LINE , Replaced By: A3404201829
  • 999
    ROD , Replaced By: N900331010667
  • 999
    ROD , Replaced By: N900331010482
  • 999
    LINE , Replaced By: A3104282301, +001A1809900060
  • 999
    LINE , Replaced By: A3104282301, +001A1809900060
  • 999
    LINE , Replaced By: A3094206628
  • 999
    LINE , Replaced By: A3094206728
  • 999
    LINE , Replaced By: A3404200729
  • 999
    LINE FROM DISTRIBUTOR TO LEFT FRONT WHEEL BRAKE HOSE 6X0.7 MM,D 335216
  • 999
    LINE , Replaced By: A3404203829
  • 999
    LINE , Replaced By: A3404203829
  • 999
    LINE , Replaced By: A3404201429
  • 999
    LINE , Replaced By: A3404200729
  • 999
    PIN , Replaced By: A3095860242
  • 999
    DETENT , Replaced By: A3095860242
  • 999
    ADJUSTING SLEEVE , Replaced By: A3095860242
  • 999
    SCREW , Replaced By: A3094270574
  • 999
    THRUST PIN
  • 999
    ROD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 156258 EXCEPT FOR 155145,155146,155169,155170,155195,155196,155467,155468,155636,155897,156056,156099,156146,156147., Replaced By: A3094210214
  • 999
    ADJUSTING SLEEVE , Replaced By: A3095860242
  • 999
    SPRING HAND BRAKE LEVER, UP TO REAR AXLE 154947,FROM REAR AXLE 154948 SEE MICROFICHE 816,743.4
  • 999
    SPRING , Replaced By: A3095860342
  • 999
    ADJUSTING SLEEVE , Replaced By: A3095860242
  • 999
    PIN , Replaced By: A3095860242
  • 999
    SPRING , Replaced By: A3094210592
  • 999
    SPRING READJUSTMENT OF REAR WHEEL BRAKE, UP TO REAR AXLE 154947,FROM REAR AXLE 154948 SEE MICROFICHE 816,743.4
  • 999
    REPAIR KIT , Replaced By: A3094210892
  • 999
    SPRING BRAKE CABLE GUIDE TO BRAKE ANCHOR PLATE, UP TO REAR AXLE 154947,FROM REAR AXLE 154948 SEE MICROFICHE 816,743.4
