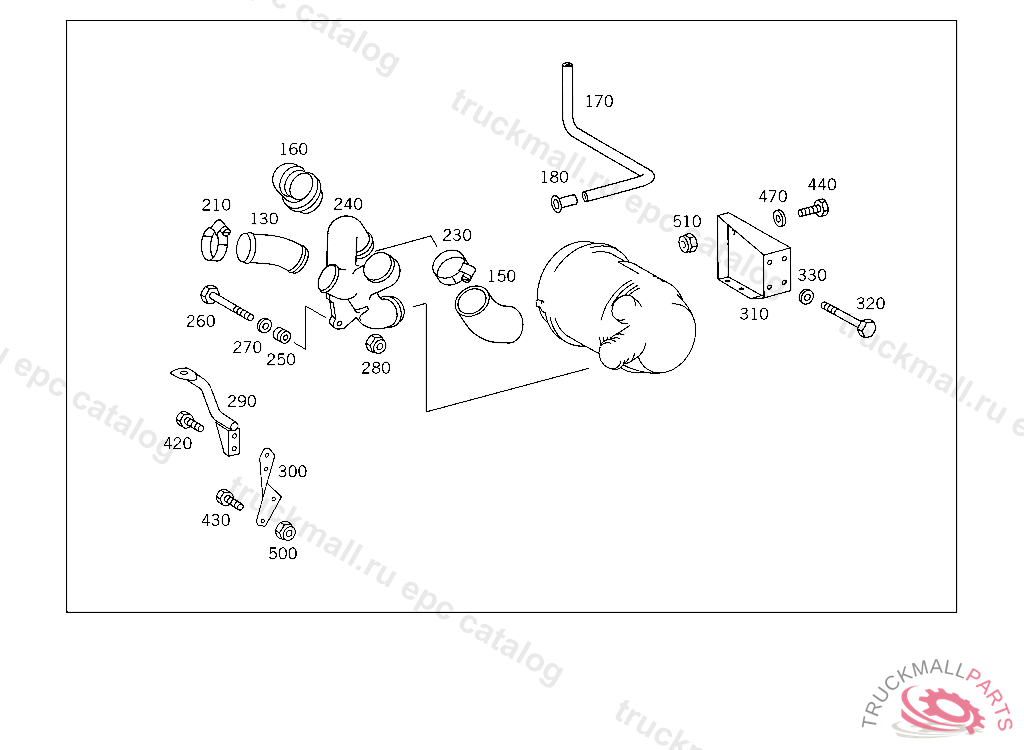

Поз.
Артикул
Описание
130
AIR INTAKE PIPE
150
HOSE FROM SUPPORT TO PAPER AIR CLEANER
160
HOSE FROM MUFFLER TO ENGINE
170
HOSE LEAK LINE, ORDER BY THE METER
170
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
170
PLASTIC PIPE RISING PIPE 4X6 MM
180
SLEEVE LEAK LINE
210
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
210
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
230
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
240
SUPPORT (PAPER AIR CLEANER)
250
THREADED INSERT
250
THREADED INSERT
250
THREADED INSERT
260
SCREW CONSOLE TO SIDE MEMBER
260
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
260
SCREW , Replaced By: N308676012011
270
WASHER BRACKET TO FRAME
280
NUT SUPPORT TO SIDE MEMBER
290
BRACKET AIR INTAKE PIPE
300
BRACKET AIR INTAKE PIPE
310
SUPPORT
320
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
330
WASHER RADIATOR TO RUBBER MOUNTING
330
WASHER , Replaced By: N000125010532
420
SCREW BRACKET TO SIDE MEMBER,K 168169
420
SCREW , Replaced By: A0089907401
430
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
430
SCREW , Replaced By: N304017008016
440
SCREW CONSOLE TO SIDE MEMBER
440
SCREW CONSOLE TO FRAME
440
SCREW , Replaced By: N308676016020
440
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
470
WASHER BRACKET TO FRAME
470
WASHER , Replaced By: N000125017016
470
WASHER
500
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
500
NUT , Replaced By: N913004008001
510
NUT SUPPORT TO SIDE MEMBER
510
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
510
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
HOSE TO OIL BATH AIR CLEANER
999
HOSE TO OIL BATH AIR CLEANER
999
HOSE FROM MUFFLER TO SUPPORT
999
AIR CLEANERMANN & HUMMEL,5 586475
999
AIR CLEANER , Replaced By: A0160945902
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANERKNECHT,5 451580
999
CLAMP
999
PIPE SOCKET
