Mercedes A0019978546 - Уплотнит. кольцо

LK 2624/6X4 343.303

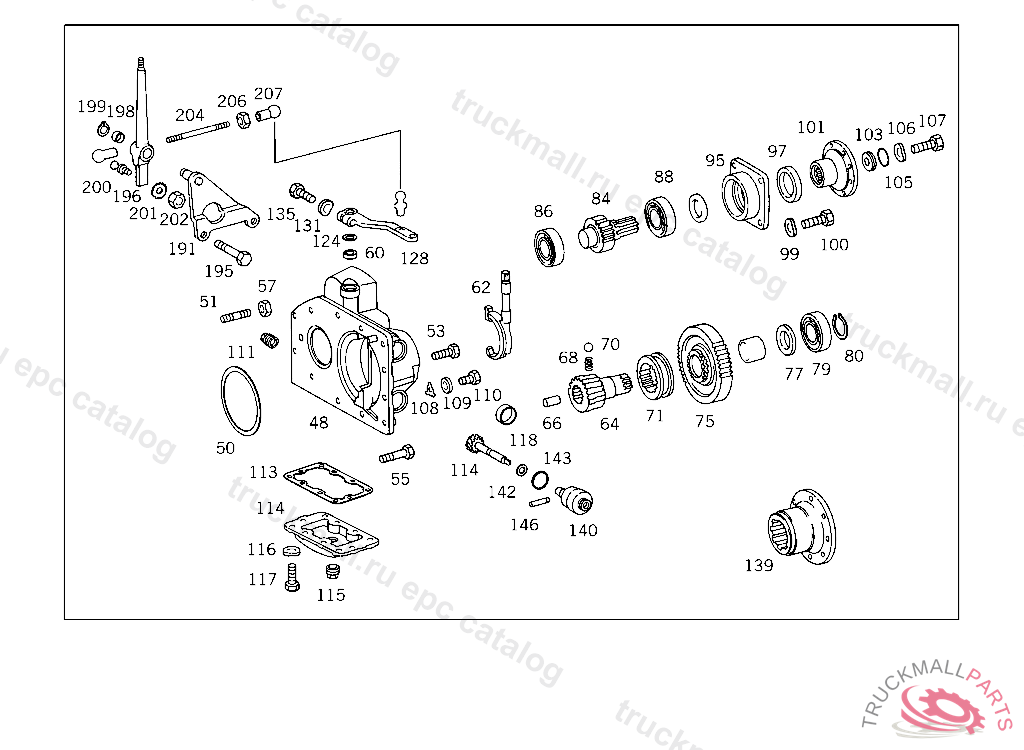

26 TRANSMISSION - 001 AK6-80 TRANSMISSION WITH N80/10 CENTRAL P.T.O. AND WITH N352/1B LATERAL P.T.O. IL.2
  • Поз.
    Артикул
    Описание
  • 48
    HOUSING , UP TO TRANSMISSION 007543, Replaced By: A3432640728, +001A3432640524, +001A3432640126, +001A0049978246
  • 48
    HOUSING , Replaced By: A0002642701
  • 48
    HOUSING , Replaced By: A0002642701
  • 48
    HOUSING TO 336 260 31 05 41:27 I0.95 X N, FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0,95 X ENGINE REVOLUTIONS
  • 48
    HOUSING , Replaced By: A0002643001
  • 48
    HOUSING , Replaced By: A0002643001
  • 48
    HOUSING
  • 50
    SPACER WASHER AS REQUIRED 1.40 MM
  • 50
    SPACER WASHER1.5 MM
  • 50
    SPACER WASHER1.6 MM
  • 51
    STUD BOLT
  • 53
    SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
  • 55
    SCREW , Replaced By: N304017010002
  • 55
    SCREW BRACKET TO SIDE MEMBER
  • 57
    NUT , Replaced By: N304032010002
  • 57
    NUT
  • 60
    SEAL RING SHIFTING FORK
  • 60
    SEAL RING
  • 62
    SHIFTING FORK , UP TO TRANSMISSION 007543, Replaced By: A3432640126, +001A3432640724
  • 62
    SHIFTING FORK , FROM TRANSMISSION 007544, Replaced By: A3432640226, +001A3432640524, +001A3432640624, +001A3432640462
  • 62
    SHIFTING FORK
  • 64
    DRIVE SHAFT
  • 66
    PIN
  • 68
    SPRING DRIVE SHAFT
  • 70
    BALL P.T.O. SHAFT
  • 71
    SLIDING COLLAR P.T.O.
  • 75
    GEAR NUMBER OF TEETH: 43, UP TO TRANSMISSION 029242
  • 75
    GEAR NUMBER OF TEETH: 41
  • 75
    GEAR , Replaced By: A0002600508
  • 75
    GEAR (DRIVE GEAR),P.T.O. Z 48
  • 77
    THRUST WASHER DRIVE GEAR
  • 79
    CYLINDR. ROLLER BEARING DRIVE SHAFT
  • 80
    LOCK RING BEARING TO DRIVE SHAFT,183596
  • 80
    LOCK RING , Replaced By: A0019942241
  • 80
    LOCK AS REQUIRED 2.40 MM
  • 80
    LOCK AS REQUIRED 2.30 MM
  • 80
    LOCK AS REQUIRED 2.20 MM
  • 84
    DRIVE SHAFT NUMBER OF TEETH: 25, UP TO TRANSMISSION 029242 FOR GEAR SET 43:25,RATIO1.07XENGINE REVOLUTION
  • 84
    DRIVE SHAFT27 ZAEHNE I0,95 X N MOTOR, FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0,95 X ENGINE REVOLUTIONS
  • 84
    DRIVE SHAFT P.T.O. Z20
  • 86
    CYLINDR. ROLLER BEARING FRONT
  • 86
    CYLINDR. ROLLER BEARING FRONT
  • 86
    CYLINDR. ROLLER BEARING FRONT
  • 88
    GROOVED BALL BEARING , Replaced By: N005412670010, +001N005412400035
  • 88
    CYLINDR. ROLLER BEARING REAR DRIVE SHAFT,324180
  • 88
    CYLINDR. ROLLER BEARING REAR DRIVE SHAFT,324180
  • 95
    COVER REAR P.T.O.
  • 95
    COVER REAR P.T.O.
  • 95
    COVERI0.95 X N MOTOR
  • 97
    SEAL RING , Replaced By: A0089975147
  • 97
    SEAL RING , Replaced By: A0129979847
  • 97
    SEAL RING , Replaced By: A0229974147
  • 97
    SEAL RING OIL DISTRIBUTOR BLOCK
  • 99
    SPRING WASHER CAB FLOOR
  • 100
    SCREW BRACKET TO LEFT SIDE MEMBER
  • 101
    COUPLING FLANGE
  • 103
    SHIM FLANGE TO TRANSMISSION CASE COVER
  • 105
    SEALING CORD , Replaced By: A0119979145
  • 105
    SEAL RING FLANGE TO TRANSMISSION CASE COVER
  • 106
    SPRING WASHER CAB FLOOR
  • 107
    SCREW BRACKET TO FRAME
  • 108
    LOCK CONNECTOR
  • 109
    SEAL RING FUEL LINE TO FEED PUMP
  • 110
    SCREW , Replaced By: A0009970419, +001A0039901051
  • 110
    THREADED PIN SPEEDOMETER
  • 111
    SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
  • 113
    GASKET COVER TO P.T.O. CASE
  • 114
    COVER
  • 115
    SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
  • 116
    SPRING WASHER STEERING COLUMN BRACKET TO CAB
  • 117
    SCREW BRACKET TO SIDE MEMBER
  • 118
    EXPANSION PLUG SPEEDOMETER DRIVE
  • 124
    THRUST WASHER SHIFTING FORK
  • 124
    THRUST WASHER SHIFTING DOME, FROM TRANSMISSION 007544 UP TO TRANSMISSION 009924
  • 124
    THRUST WASHER
  • 128
    SHIFT LEVER , Replaced By: A3432640724, +001A3432640326
  • 128
    SHIFT LEVER , UP TO TRANSMISSION 007543
  • 128
    SHIFT LEVER , FROM TRANSMISSION 007544 UP TO TRANSMISSION 009924, Replaced By: A3432640524, +001A3432640226, +001A3432640462
  • 128
    SHIFT LEVER P.T.O. SHIFT LEVER
  • 128
    SHIFT LEVER , FROM TRANSMISSION 007544 UP TO TRANSMISSION 009924, Replaced By: A3432640624, +001A3432640226, +001A3432640462
  • 128
    SHIFT LEVER P.T.O. SHIFT LEVER
  • 131
    SPRING WASHER , Replaced By: N000137008212
  • 135
    SCREW , Replaced By: N304017008018
  • 135
    SCREW SUPPORT TO FENDER
  • 135
    SCREW , Replaced By: N304017008021
  • 135
    SCREW PIPE CLAMP
  • 135
    SCREW PIPE CLAMP
  • 139
    FLANGE OUTPUT FLANGE,BOTTOM
  • 140
    CONNECTOR AS REQUIRED 88.50 MM,TO 366 264 00 32
  • 142
    SEAL RING
  • 143
    SEAL RING , Replaced By: A0069970245
  • 143
    SEAL RING SHIFT CASE,FRONT
  • 146
    CYLINDRICAL PIN CONNECTOR
  • 191
    BEARING BRACKET P.T.O. SHIFT LEVER
  • 191
    BEARING BRACKET P.T.O. SHIFT LEVER
  • 195
    SCREW STRAP TO BRACKET
  • 196
    SHIFT LEVER
  • 196
    SHIFT LEVER TRANSFER CASE, /5-/8 UP TO IDENT NO.: 992001
  • 198
    BUSHING
  • 199
    LOCK RING RELEASE YOKE TO BEARING BRACKET
  • 200
    BALL PIVOT BELT TIGHTENER
  • 201
    TOOTHED WASHER
  • 202
    NUT BRACKET TO SUPPORT AND TO END PIECE
  • 204
    PULL ROD , Replaced By: N900331010653
  • 206
    NUT BRACKET TO SUPPORT AND TO END PIECE
  • 207
    BALL SOCKET BELT TIGHTENER
  • 999
    NUT
  • 999
    SCREW , Replaced By: N304017008018
  • 999
    COVER ,290281, Replaced By: A0002642111, +001A0002647680
  • 999
    SCREW PLUG BELL HOUSING
  • 999
    SCREW , Replaced By: N304017010046
  • 999
    COVER LATERAL, IN CASE OF L.H.D.,RANGE OF DELIVERY INCLUDES 1X000 997 20 35 WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
  • 999
    GASKET , Replaced By: A0002642980
  • 999
    SHIM , Replaced By: A0002720776
  • 999
    GASKET ,290281, Replaced By: A0002642980, +001A0002642111
  • 999
    SHIM AS REQUIRED 0.80 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
  • 999
    SHIM AS REQUIRED 1.00 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
  • 999
    SHIM AS REQUIRED 1.20 MM, PIECES ARE NEEDED IF A POWER TAKE OFF N352/1B AND N352/2B IS FITTED
  • 999
    HOUSING CASE COVER, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
  • 999
    SHIFT LEVER
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0.95XENGINE REVOLUTION, Replaced By: A3432602701, +001A3432600505
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0.95XENGINE REVOLUTION, Replaced By: A3432601801, +001A3362603305
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0.95XENGINE REVOLUTION, Replaced By: A3432602701, +001A3432600505
  • 999
    TRANSMISSION , FROM TRANSMISSION 029243,FOR GEAR SET 41:27,RATIO0,95 X ENGINE REVOLUTIONS, Replaced By: A3432601801, +001A3362603305
  • 999
    TRANSMISSION
  • 999
    TRANSMISSION
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST, Replaced By: A3432602701, +001A3432600705
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST, Replaced By: A3432602701, +001A3432600705
  • 999
    TRANSMISSION , UP TO TRANSMISSION 029242 FOR GEAR SET 43:25,RATIO1.07XENGINE REVOLUTION, Replaced By: A3432607001
  • 999
    TRANSMISSION , UP TO TRANSMISSION 029242 FOR GEAR SET 43:25,RATIO1.07XENGINE REVOLUTION, Replaced By: A3432606801
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST, Replaced By: A3432601801, +001A3432600605
  • 999
    TRANSMISSION , SEE STANDARD EQUIPMENT SPARE PARTS LIST, Replaced By: A3432601801, +001A3432600605
  • 999
    TRANSMISSION , UP TO TRANSMISSION 029242 FOR GEAR SET 43:25,RATIO1.07XENGINE REVOLUTION, Replaced By: A3432606901
  • 999
    TRANSMISSION , UP TO TRANSMISSION 029242,FOR GEAR SET 43:25,RATIO1,07 X ENGINE REVOLUTIONS, Replaced By: A3432601801, +001A3362603305
  • 999
    P.T.O. , LESS SPEEDOMETER DRIVE,CENTRAL P.T.O.RATIO1,49XENGINE REVOLUTIONS1:0,67
  • 999
    P.T.O. , LESS SPEEDOMETER DRIVE,CENTRAL P.T.O.RATIO1,49XENGINE REVOLUTIONS1:0,67
  • 999
    P.T.O. , FROM TRANSMISSION 029243 FOR GEAR SET 41:27,RATIO0.95XENGINE REVOLUTION LESS SPEEDOMETER DRIVE,CENTRAL P.T.O.RATIO0,95XENGINE REVOLUTIONS1:1,05
  • 999
    P.T.O. , UP TO TRANSMISSION 029242 FOR GEAR SET 43:25,RATIO1.07XENGINE REVOLUTION, Replaced By: A3432600505
  • 999
    P.T.O.N 70-1 C
  • 999
    BEARING BRACKET , Replaced By: A3432601894
  • 999
    BUSHING
  • 999
    DRIVE GEAR R.H.TURN, SPEEDOMETER DRIVE PARTS ARE NOT CONNECTED FOR SPEEDOMETER CONNECTION SEE TRANSFER CASE
  • 999
    DRIVE GEAR L.H. TURN, SPEEDOMETER DRIVE PARTS ARE NOT CONNECTED FOR SPEEDOMETER CONNECTION SEE TRANSFER CASE
  • 999
    P.T.O. N 80/10 LESS LOCK-OUT,AND N 352/1 B P.T.O.,WITH SPEEDOMETER DRIVE, FROM TRANSMISSION 029243,FOR GEAR SET 41:27,RATIO0,95 X ENGINE REVOLUTIONS CENTRAL P.T.O.RATIO0,95 X ENGINE REVOLUTIONS 1 : 1,05,SPEEDOMETER RATIO 1 : 2,166,L.H.TURN
  • 999
    P.T.O. , UP TO TRANSMISSION 029242,FOR GEAR SET 43:25,RATIO1,07 X ENGINE REVOLUTIONS, Replaced By: A3362603305
  • 999
    BUSHING
  • 999
    NUT SPEEDOMETER
  • 999
    PLUG , Replaced By: A3529970032
  • 999
    PLUG , Replaced By: A0009977535
  • 999
    PLUG , Replaced By: A0009973435
  • 999
    WASHER SPEEDOMETER DRIVE 0.60 MM
  • 999
    GASKET CASE,REAR
  • 999
    GASKET , Replaced By: A3432640479
  • 999
    GASKET
