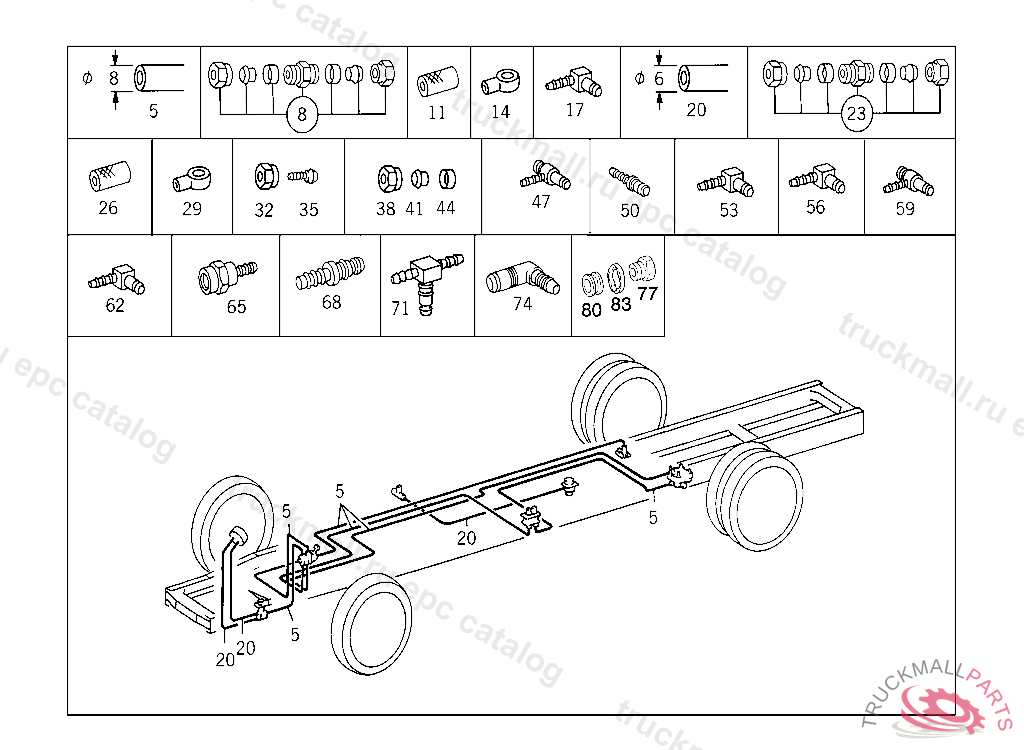

Поз.
Артикул
Описание
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE8X6 MM, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
INSULATING HOSE COLOR CODE BROWN
11
INSULATING HOSE RED, ORDER BY THE METER
11
INSULATING HOSE
14
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
14
BANJO UNION HEATING CONNECTION,K 169122
17
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
26
INSULATING HOSE COLOR CODE BLUE 2X0,01 MM
26
INSULATING HOSE RED, ORDER BY THE METER
29
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
32
UNION NUT
35
FITTING
38
UNION NUT
41
GLAND , Replaced By: A0019901667
44
SLEEVE LEAK LINE
47
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
50
CONNECTOR HOSE WIDTH, 6 MM, TO M22
50
CONNECTOR , Replaced By: A0029905478
53
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
56
ELBOW FITTING , Replaced By: A0049905371
59
T-FITTING
62
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
65
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
71
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
74
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
