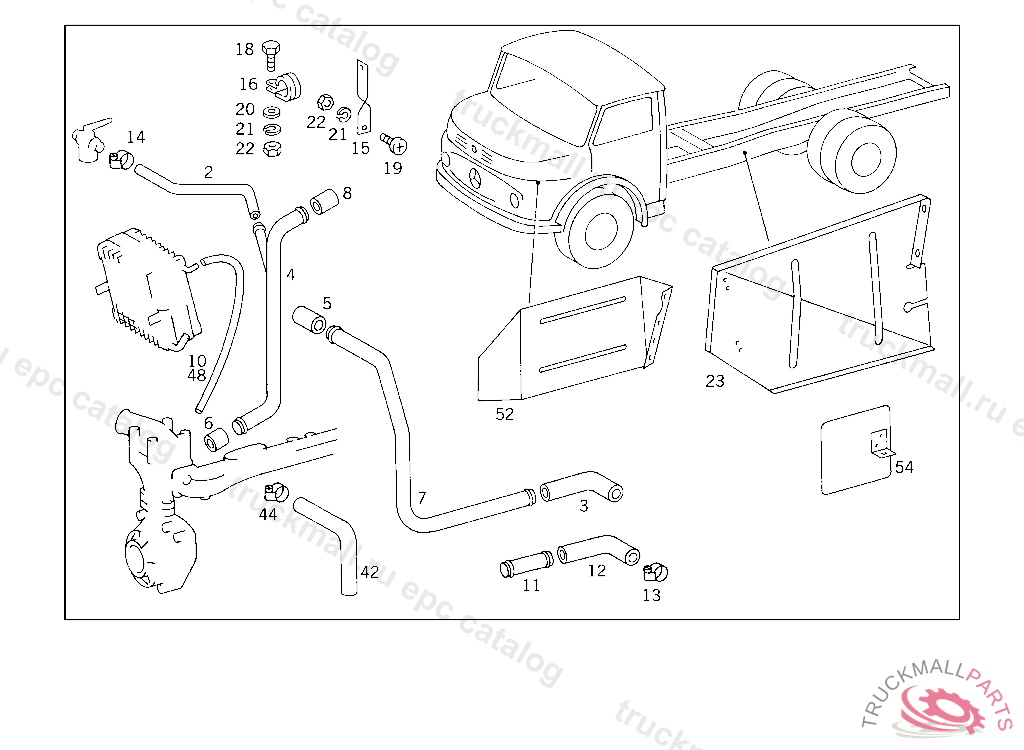

Поз.
Артикул
Описание
2
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
2
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
2
HOSE HEATING RETURN 18X26X420 MM
3
COOLING WATER PIPE
4
LINE
5
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
5
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
6
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE 28X36X110 MM, NOT USED
7
LINE
8
HOSE FROM EXPANSION TANK TO HEATING PIPE 28X36X90 MM, NOT USED
10
HOSE COOLING WATER LINE 18X26X520 MM
11
PIPE ELBOW
12
HOSE
13
LOOM TIE
14
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
14
LOOM TIE HOSE TO HEATING PIPE
14
CLAMP HOSE TO FILLER NECK
14
LOOM TIE. CLAMP HOSE TO HEATING PIPE
14
CLAMP HOSE TO COOLING WATER PIPE
14
LOOM TIE ELECTRIC CABLE MOUNTING
14
LOOM TIE HOSE TO FILLER NECK
14
CLAMP EXPANSION TANK
14
CLAMP FROM EXPANSION TANK TO HEATING PIPE, NOT USED
14
LOOM TIE , Replaced By: A3459977390
14
CLAMP AIR COMPRESSOR
14
CLAMP HOSE TO HEATING PIPE
15
BRACKET HEATING WATER LINE
16
CLAMP HOSE TO FLANGE AND TO VALVE
18
SCREW BRACKET TO INTAKE MANIFOLD
18
SCREW CLAMP TO BRACKET
19
SCREW CABLE TO ALTERNATOR
20
WASHER PLUG SOCKET TO BRACKET
21
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
22
NUT , Replaced By: N304032008006
22
NUT
23
PROTECTIVE PLATE ,445590
42
HOSE HEATING FEED
44
LOOM TIE. CLAMP HOSE TO HEATING PIPE
44
CLAMP HOSE TO HEATING PIPE
44
LOOM TIE. CLAMP HOSE TO FLANGE AND TO VALVE
44
CLAMP AIR COMPRESSOR
48
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
52
PROTECTIVE PLATE
52
PROTECTIVE PLATE
54
PROTECTIVE PLATE
999
PROTECTIVE PLATE , Replaced By: A3454927630
999
HOSE , Replaced By: N900271015037
999
HOSE , Replaced By: N900271015037
999
INTERMEDIATE PIECE FROM RADIATOR TO WATER PUMP
