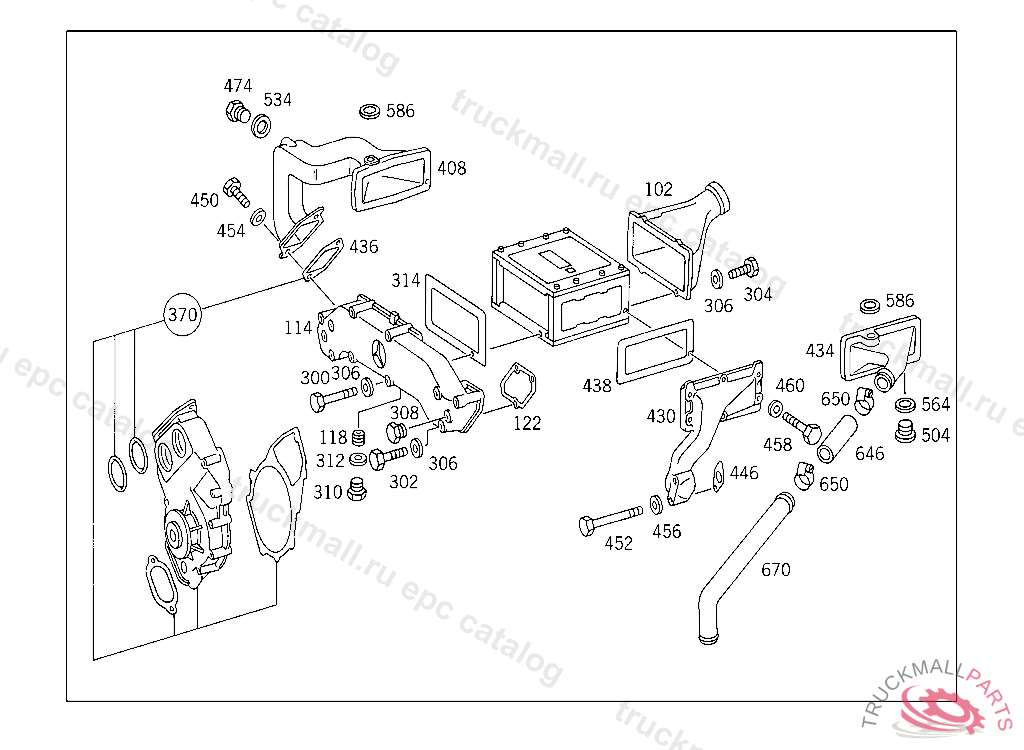

Поз.
Артикул
Описание
102
INTAKE PIPE (CHARGE AIR PIPE)
114
AIR INTAKE PIPE CHARGE AIR PIPE ON CHARGE AIR INTERCOOLER END
118
THREADED INSERT
118
THREADED INSERT
118
THREADED INSERT
122
GASKET , Replaced By: A4421410780
122
GASKET , Replaced By: A4421410980
122
GASKET , Replaced By: A4421410980
122
GASKET , Replaced By: A4441410480
122
GASKET INTAKE MANIFOLD
122
GASKET TRANSVERSE CHARGE AIR PIPE TO INTAKE MANIFOLD
122
GASKET CHARGE AIR LINE TO CHARGE AIR INTERCOOLER
300
SCREW 3/2-WAY VALVE TO BRACKET
300
SCREW 3/2-WAY VALVE TO BRACKET
300
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
300
SCREW , Replaced By: N304014008009
302
SCREW
302
CAP BOLT. SCREW CYLINDER TO TRANSMISSION CASE M 12X40
302
SCREW CHARGE AIR PIPE TO INTAKE MANIFOLD M 12X160
302
COMBINATION BOLT CHARGE AIR PIPE TO INTAKE MANIFOLD M 8X110
304
SCREW BRACKET TO CROSS CONNECTION STRUT
304
SCREW , Replaced By: N304017008034
306
WASHER , Replaced By: N000125008443
306
WASHER RADIATOR TO RUBBER MOUNTING
306
WASHER EXHAUST MUFFLER TO STRAP
308
SCREW PLUG 4/2-WAY VALVE
310
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
312
SEAL RINGTO 001 431 72 14
312
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
314
GASKET CHARGE AIR LINE TO CHARGE AIR INTERCOOLER
314
GASKET , Replaced By: A4430980080
370
WATER PUMP , Replaced By: A4572000201
370
WATER PUMP
370
WATER PUMP WITH GASKETS
370
TS WATER PUMP WITH PAPER SEAL, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A4572002701
370
TS WATER PUMP WITH METAL SEAL, 401-403 129661 404 003751 407 017498 421-424 000001 427 000001 440-447 000001 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
408
LINE CHARGING AIR INTERCOOLER OUTLET
430
LINE CHARGING AIR INTERCOOLER FEED
434
LINE
436
GASKET
436
GASKET , Replaced By: A4422010380
438
GASKET , Replaced By: A4422030280
438
GASKET COOLING WATER INLET AND COOLING WATER RETURN TO CHARGING AIR INTERCOOLER
446
GASKET OUTLET TO ENGINE
446
GASKET. SEAL , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3559970149
450
SCREW , Replaced By: N304017008034
450
SCREW BRACKET TO CROSS CONNECTION STRUT
452
SCREW SHIFTING ROD TO SHIFT LEVER
452
SCREW , Replaced By: N000933010192
454
WASHER , Replaced By: N000125008443
454
WASHER EXHAUST MUFFLER TO STRAP
456
WASHER RADIATOR TO RUBBER MOUNTING
458
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
458
SCREW BRACKET TO CROSS CONNECTION STRUT
458
SCREW STRUT TO CROSS MEMBER M 10X25
458
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
458
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
458
SCREW CLUTCH TO FLYWHEEL
458
SCREW
458
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
458
SCREW , Replaced By: N304017008034
458
SCREW , Replaced By: N304017008028
460
WASHER , Replaced By: N000125008443
460
WASHER EXHAUST MUFFLER TO STRAP
474
SCREW PLUG FUEL TANK
474
SCREW PLUG , Replaced By: N007604014110
504
SCREW PLUG , Replaced By: N000908014009
504
SCREW PLUG TO LOCK BREATHER CONNECTION
504
SCREW PLUGTO 000 553 03 05,000 553 18 05,
534
SEAL RINGTO 000 553 03 05,000 553 18 05,
564
SEAL RINGTO 000 553 03 05,000 553 18 05,
586
SEAL RINGTO 000 553 03 05,000 553 18 05,
586
SEAL RING
646
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
646
HOSE
646
HOSE
646
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK, ORDER BY THE METER
650
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
650
CLAMP CLAMP TO CROSS MEMBER 42/20
650
CLAMP HOSE 70-90X13 MM
650
CLAMP , Replaced By: N000000000671
650
CLAMP , Replaced By: N000000000674
650
CLAMP FROM AIR CLEANER TO AIR INTAKE PIPE,X215713
670
ELBOW COOLING WATER RETURN
670
LINE CHARGING AIR INTERCOOLER OUTLET
999
CAP
999
FITTING
999
CHARGING AIR INTERCOOLER , Replaced By: A0010989120
999
CHARGING AIR INTERCOOLER , Replaced By: A0020986220
999
CHARGING AIR INTERCOOLER
999
GASKET
999
GASKET , Replaced By: A4421411380
999
INTAKE MANIFOLD
999
AIR INTAKE PIPE
999
BAFFLE PLATE (CONNECTING LEDGE)
999
BRACKET (CHARGE AIR PIPE),LEFT, 423 - 121553 424 - 001918
999
BUSHING
999
SCREW , Replaced By: A4419905201
999
SCREW BRACKET TO BRACKET, NOT USED
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, REAR
999
BRACKET , Replaced By: A4470980739, +001A6205240340
999
BRACKET CHARGE AIR PIPE, NOT USED
999
FLANGE BRACKET TO SOLENOID,012723
999
SPRING WASHER CAB FLOOR
999
SCREW , Replaced By: N304017006020
999
SCREW LICENSE PLATE TO BRACKET
999
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
999
NUT , Replaced By: N913023010002
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
COMBINATION BOLT CHARGE AIR PIPE TO INTAKE MANIFOLD M 10X130
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
