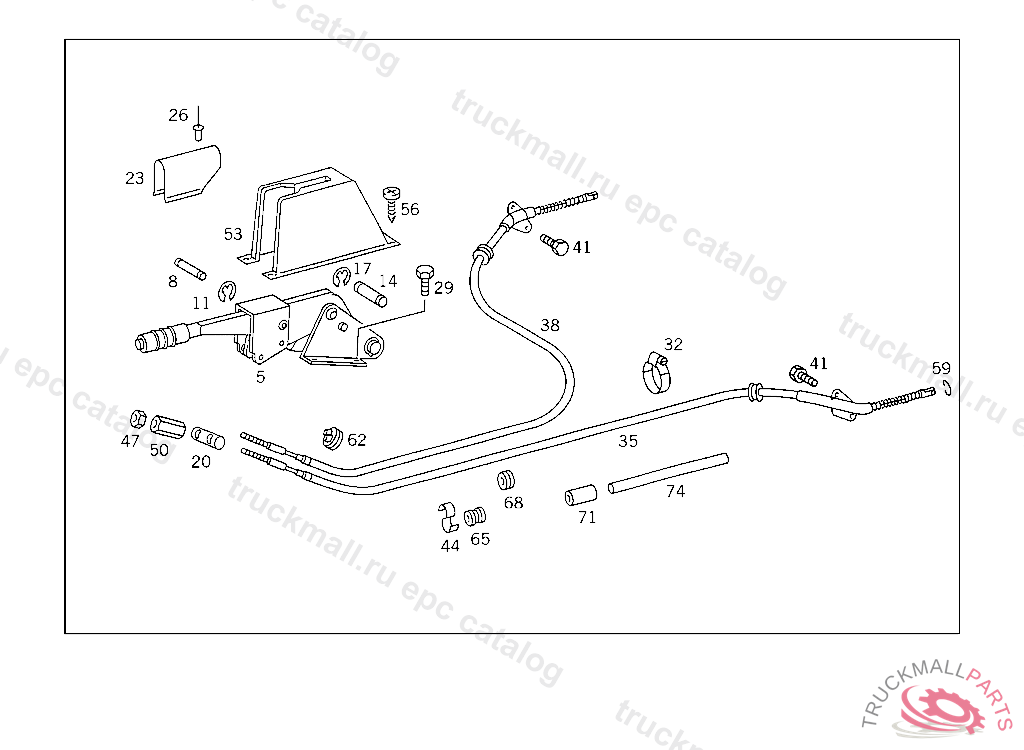

Поз.
Артикул
Описание
5
PARKING BRAKE
8
PIN
8
PIN , Replaced By: A4614270074
11
LOCK PLATE RELEASE LEVER TO SHAFT
14
PIN
14
PIN , Replaced By: A4614270274
17
LOCK PLATE INTERMEDIATE BEARING
20
PIN
20
PIN , Replaced By: A4614270174
23
COVERING
26
RIVET
29
SCREW COVER PLATE TO COVER PLATE M 6 X 12
32
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
32
CLAMP , Replaced By: N000000000671
35
BRAKE CABLE , Replaced By: A4604201585, +001A4604201685
35
BRAKE CABLE
35
BRAKE CABLE , FROM AXLE NO. K005108, Replaced By: A4604304454
35
BRAKE CABLE RIGHT PERROT,1960 MM, 059184 904044 FROM AXLE-NO. K004416 058050 903972
35
BRAKE CABLE , 058050 903972 FROM AXLE NO. K004416 059184 904044, Replaced By: A4604303154, +001A4609971781
35
BRAKE CABLE , Replaced By: A4634200585
35
BRAKE CABLE , Replaced By: A4634200785
35
WIRE CABLE LEFT PERROT, 2240 MM
35
BRAKE CABLE LEFT DB,2240 MM, FROM AXLE K 005108
35
BRAKE CABLE LEFT 2090 MM,PERROT, 058049 903971
35
WIRE CABLE LEFT BRAKE CABLE
35
BRAKE CABLE LEFT 2090 MM,PERROT
35
BRAKE CABLE LEFT 2240 MM,PERROT, 058049 903971
35
BRAKE CABLE LEFT DB,2090 MM, FROM AXLE K 005108
38
BRAKE CABLE LEFT 2240 MM,PERROT, 058049 903971
38
BRAKE CABLE RIGHT DB,2240 MM, FROM AXLE K 005108
38
BRAKE CABLE LEFT 2090 MM,PERROT
38
BRAKE CABLE RIGHT, ON RIGHT BRAKE DB 2090 MM, FROM AXLE-NO. K005108
38
BRAKE CABLE LEFT 2090 MM,PERROT, 058049 903971
38
WIRE CABLE LEFT PERROT, 2240 MM
38
BRAKE CABLE , FROM AXLE NO. K005108, Replaced By: A4604304554
38
BRAKE CABLE
38
BRAKE CABLE , 058050 903972 FROM AXLE NO. K004416 059184 904044, Replaced By: A4604303154, +001A4609971781
38
BRAKE CABLE , Replaced By: A4634200685
38
BRAKE CABLE , Replaced By: A4634200885
41
SCREW , Replaced By: N304017008016
41
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SPRING
47
NUT BALL PIVOT TO LEVER
50
NUT BRAKE CABLE TO HAND BRAKE LEVER
50
NUT , Replaced By: A4604275072
53
COVERING PARKING BRAKE
56
SHEET METAL SCREW MODULE TO HOUSING
56
SHEET METAL SCREW , Replaced By: N000000000453
59
SPRINGPERROT
62
GROMMET CABLE THRU VEHICLE FLOOR
62
GROMMET , Replaced By: A4604270291
65
DAMPING RING
68
GROMMET BRAKE CABLE PASSAGE IN CONSOLE
68
GROMMET PLUG SOCKET
68
GROMMET O.D., 36 MM
68
GROMMET
71
PROTECTIVE HOSE BRAKE CABLES,004740
74
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
