Поз.
Артикул
Описание

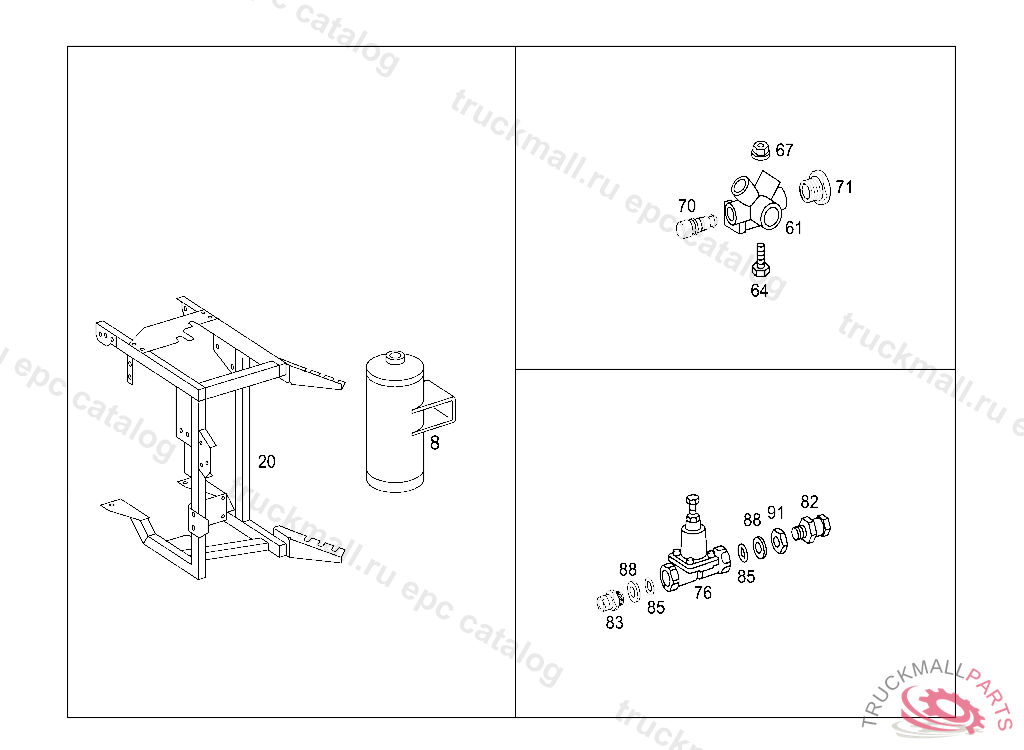

8
RESERVOIR REGENERATION TANK 4L, Replaced By: A0064327301
8
COMPRESSED AIR RESERVOIR REGENERATION TANK 4L
20
20
61
DISTRIBUTOR CENTRAL AXLE
64
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
64
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
67
NUT BRACKET TO FIRE WALL
67
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
70
PLUG DISTRIBUTOR,CONNECTIONS: "03,04,05",TO M 16,5 766894
71
INTERLOCK CONNECTOR TO PLUG THE FREE CONNECTIONS TO M16, VOSS 232
71
PLUG TO PLUG THE FREE CONNECTIONS TO M 16, VOSS 232
76
OVERFLOW VALVE10BAR
82
RUBBER MOULDING,. FITTING AIR RESERVOIR,CONNECTIONS: "12,13,14" TO VOSS 232, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
83
FITTING (CHECK VALVE) NG12/M22X1.5, FROM IDENT NO. WEB 105309 ALSO INSTALLED ON 104831-104930,104931-105130,105261,105268-105295,105307. EXCEPT 105317,105318,105324,105382,105388. FROM IDENT NO. VF9 300289 ALSO INSTALLED ON 300046,300282-300284.
83
FITTING LINE CONNECTION
83
FITTING CHECK VALVE
85
O-RING CHECK VALVE TO AIR RESERVOIR
88
THRUST RING CHECK VALVE TO AIR RESERVOIR
91
NUT CHECK VALVE TO AIR RESERVOIR
