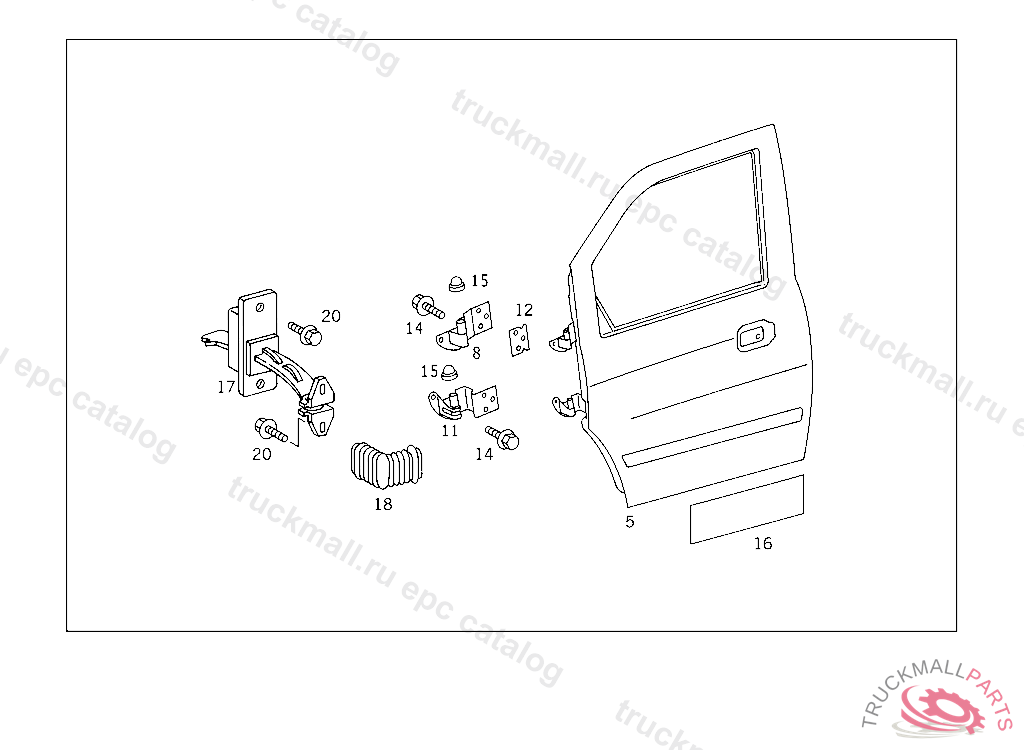

Поз.
Артикул
Описание
5
DOOR SHELL LEFT,081762
5
DOOR SHELL LEFT,081761
5
DOOR SHELL RIGHT,081762
5
DOOR SHELL RIGHT,081761
5
DOOR SHELL , Replaced By: A6387201105
5
DOOR SHELL , Replaced By: A6387201005
5
DOOR SHELL , Replaced By: A6387201305, +001A6387202137, +001A6387202337
5
DOOR SHELL , Replaced By: A6387201205, +001A6387202037, +001A6387202237
5
DOOR SHELL , Replaced By: A6387200205
5
DOOR SHELL
8
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202337
8
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202237
8
HINGE TOP LEFT
8
HINGE TOP RIGHT
11
HINGE BOTTOM RIGHT
11
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202137
11
HINGE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 191170, Replaced By: A6387202037
11
HINGE BOTTOM LEFT
12
PAD TOP LEFT AND RIGHT,131089
14
SCREW STOP TO BATTERY CASE
14
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
15
FASTENER BUTTON GROUND CONNECTION M8-SW
16
INSULATION600X200X1,5 MM, TO BE ADAPTED DURING ASSEMBLY
17
DOOR CHECK RIGHT
17
DOOR CHECK LEFT
18
GROMMET CABLE PASSAGE
20
SCREW SLIDE TO DOOR M 6X20
