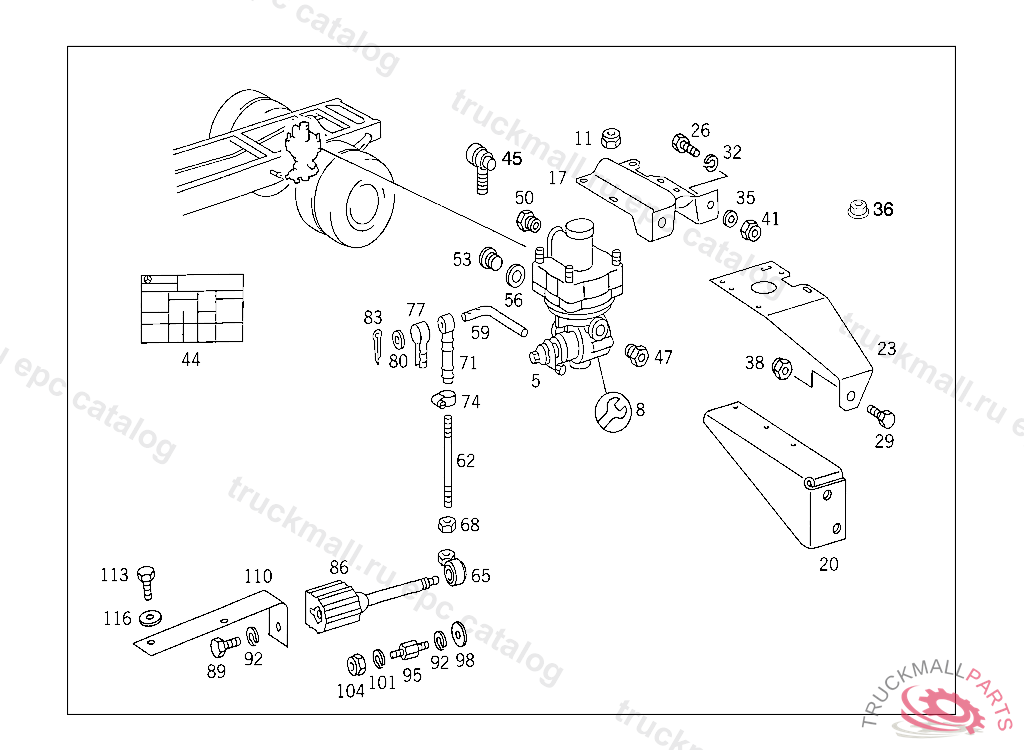

Поз.
Артикул
Описание
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
8
REPAIR KIT BRAKE POWER REGULATOR BOSCH
8
REPAIR KIT BRAKE POWER REGULATOR KNORR
8
REPAIR KIT BRAKE POWER REGULATOR KNORR, Replaced By: A0004301007
11
NUT , Replaced By: N913004008001
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
20
BRACKET BRAKE POWER REGULATOR
29
SCREW BRACKET TO SIDE MEMBER
36
NUT BRACKET TO BRACKET
38
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
38
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
GUIDE SIGN LOAD-DEPENDING BRAKE
44
ADHESIVE FOIL GUIDE SIGN
47
SCREW. UNION SCREW LINE CONNECTION
50
SCREW. UNION SCREW LINE CONNECTION
50
SCREW. UNION SCREW , Replaced By: A0009973734
59
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
62
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
65
BALL SOCKET PULL ROD
65
BALL SOCKET PULL ROD, Replaced By: A0009918222
68
NUT
71
CONNECTOR PULL ROD TO LEVER
74
CLAMP , Replaced By: N000000000665
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
77
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
80
WASHER EXHAUST MUFFLER TO STRAP
80
WASHER , Replaced By: N000125008443
83
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
86
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
89
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
92
LOCK WASHER FITTING TO BRACKET
110
BRACKET METAL SPRING BELLOWS
113
SCREW BRACKET TO TRANSMISSION
113
SCREW , Replaced By: N308676012038
116
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
BRACKET COMPRESSED AIR PIPING
