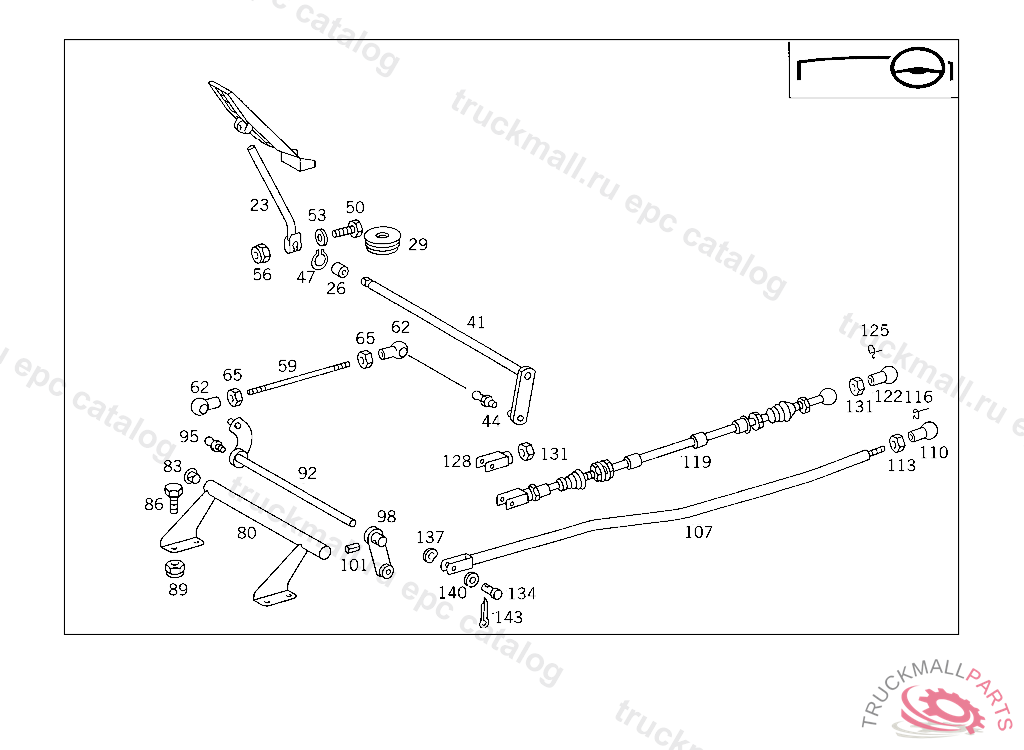

Поз.
Артикул
Описание
23
LEVER ACCELERATOR PEDAL
26
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
29
GROMMET CONTROL ROD COVERING
41
SHAFT CONTROL, DELIVER ADDITIONALLY:1X006799 0090025 552122
41
SHAFT CONTROL,5 552123
44
BALL PIVOT
47
RETAINING RING CONTROL SHAFT TO CAB,5 188249
47
LOCK PLATE
50
SCREW , Replaced By: N304017006012
50
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
56
NUT , Replaced By: N913004006001
56
NUT PUMP TO BRACKET
59
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
62
BALL SOCKET PULL ROD TO LEVER
62
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
62
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
65
NUT BALL PIVOT TO LEVER
80
BEARING TUBE CONTROL SHAFT
83
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
86
SCREW , Replaced By: N304017008016
86
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
89
NUT , Replaced By: N913004008001
92
SHAFT (CONTROL SHAFT)
95
BALL PIVOT
98
LEVER (CONTROL LEVER)
101
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
101
CLAMPING SLEEVE , Replaced By: N308752004001
107
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE,5 4232975 573246
110
BALL SOCKET ROD TO BALL PIVOT
113
NUT
116
SECURING CLIP. CIRCLIP
119
CABLE INTERMEDIATE BEARING TO CONTROL SHAFT
122
BALL SOCKET
125
SECURING CLIP. CIRCLIP
128
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
131
NUT , Replaced By: N304035008001
131
NUT
134
PIN WIRE CABLE TO LEVER
137
SPRING WASHER , Replaced By: N000137008212
137
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
140
WASHER BRACKET TO CROSS MEMBER
143
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
143
COTTER PIN LEVER TO ROD
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
999
ROD (CONTROL ROD),FROM INTERMEDIATE BEARING TO ENGINE
