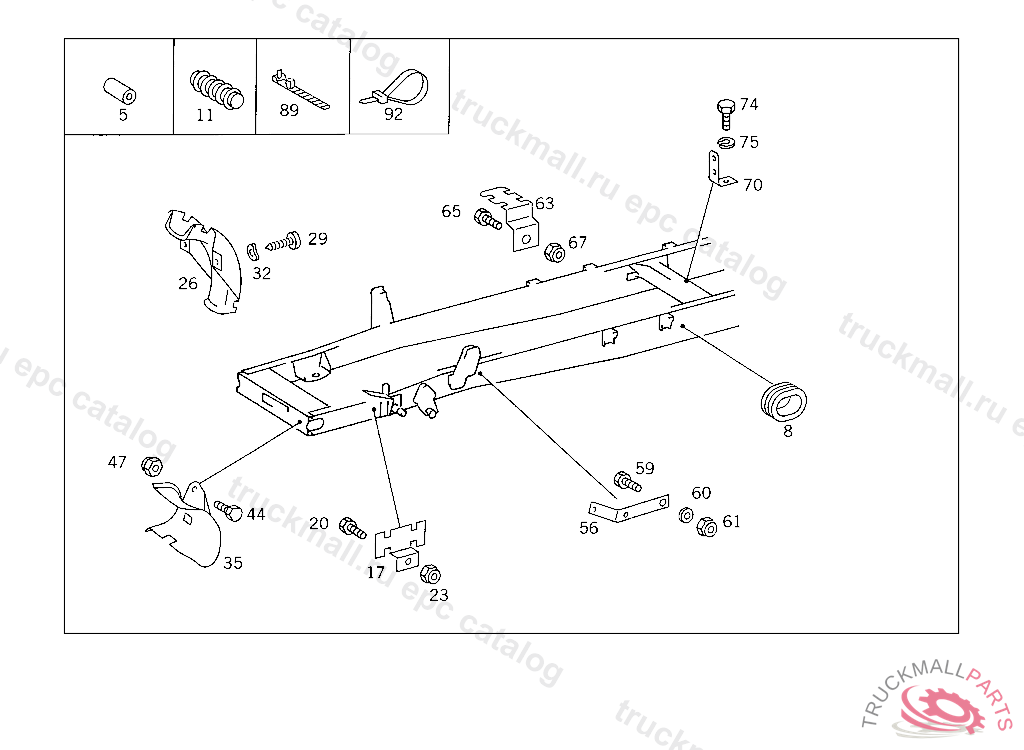

Поз.
Артикул
Описание
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
8
GROMMET FOR PASSAGE OF LINE
8
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
11
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
17
BRACKET BREATHER LINE TO SIDE MEMBER
20
SCREW BRACKET TO CROSS CONNECTION STRUT
20
SCREW , Replaced By: N304017008034
23
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
23
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
23
NUT , Replaced By: N913004008001
26
BRACKET COMPRESSED AIR LINE TO CAB
29
SHEET METAL SCREW BRACKET TO CAB
32
SPRING WASHER LICENSE PLATE TO BRACKET
35
BRACKET CABLE HARNESS
35
BRACKET LEFT
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
NUT STRAP TO BRACKET
47
NUT STRAP TO BRACKET
47
NUT , Replaced By: N910113010000
56
BRACKET LINE MOUNTING
59
SCREW , Replaced By: N308676012026
59
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
60
WASHER BRACKET TO FRAME
61
NUT SUPPORT TO SIDE MEMBER
63
BRACKET AT SIDE MEMBER
65
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
67
NUT BRACKET TO SIDE MEMBER
67
NUT , Replaced By: N910113014001
70
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
74
SCREW , Replaced By: N304017008039
74
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
75
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
LOOM TIE
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
999
CLAMP BRAKE HOSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
GROMMET LINE THRU LEFT SIDE MEMBER
999
HOSE COMPRESSED AIR GUIDE, REAR AXLE. 220 MM
999
CLAMP BRAKE HOSE
999
CABLE TIE. LOOM TIE1140 X 8.9 MM
999
LOOM TIE , Replaced By: A0069973090
999
EDGE GUARD SECTION , Replaced By: A0019872272
999
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
