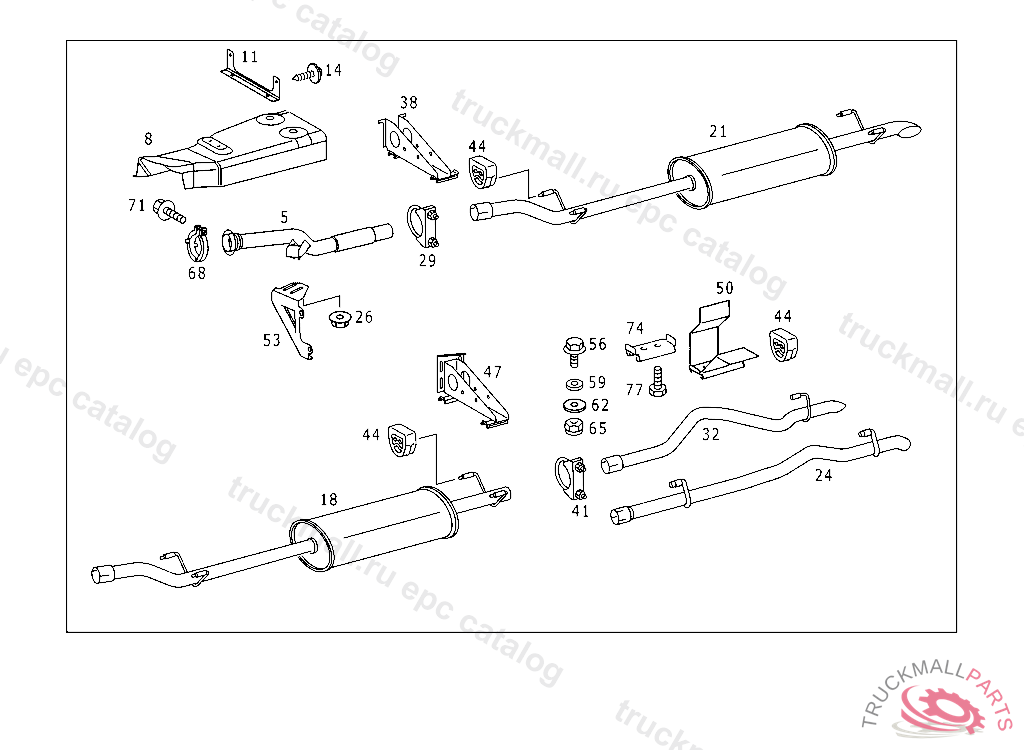

Поз.
Артикул
Описание
5
EXHAUST PIPE
8
PROTECTIVE PLATE FRONT EXHAUST PIPE
11
ANGLE PROTECTIVE PLATE TO FRAME
14
SCREW. BOLT ANGLE TO CROSS MEMBER
18
EXHAUST PIPE
26
NUT , Replaced By: A1409900750
29
CLAMP REAR EXHAUST PIPE TO MUFFLER, TO BE PROCURED FROM MBA ONLY
32
EXHAUST PIPE , TO BE PROCURED FROM MBA ONLY
38
BRACKET AT RIGHT SIDE MEMBER, TO BE PROCURED FROM MBA ONLY, Replaced By: A6904900540
41
CLAMP REAR EXHAUST PIPE TO MUFFLER, TO BE PROCURED FROM MBA ONLY
44
SUSPENSION RING
47
BRACKET
50
BRACKET REAR AXLE,RIGHT
53
BRACKET BRACKET TO CYLINDER CRANKCASE
56
SCREW. HEXAGON HEAD BOLT FRONT EXHAUST PIPE TO MUFFLER M8X110 - TO A 979 492 03 40
56
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
59
WASHER EXHAUST MUFFLER TO STRAP
62
WASHER CROSS MEMBER TO FIRE WALL
65
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
CLAMP CLAMP TO EXHAUST PIPE ABRACADEIRA TUBULAR
71
SCREW , Replaced By: N910143008005
999
EXHAUST MUFFLER , NOT USED
999
BRACKET , NOT USED
999
BRACKET , NOT USED
999
THROTTLE HOUSING REAR, NOT USED
999
REAR EXHAUST PIPE , NOT USED
999
FRONT EXHAUST PIPE , NOT USED
999
WASHER , Replaced By: N009021010209
999
NUT STRAP TO BRACKET
